GH1439 Lathe

    £5,495.00 Inc. VAT

    £5,995.00 Inc. VAT

    Our largest lathe yet with single phase option.

    More details

    Note: Almost sold out!

    product description

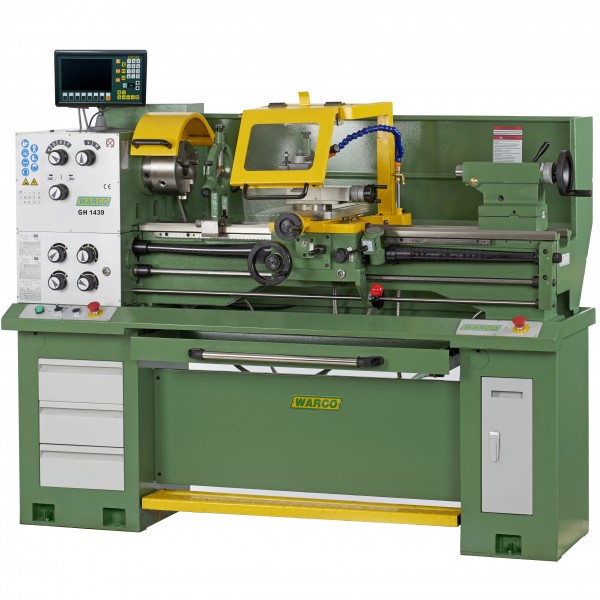

    Warco GH1439 Lathe

    The GH1439 is an all new lathe with industrial specification available with single phase (240v) or three phase (440v).

    With complete 2 axis DRO system supplied and fitted.

    Large capacity machine with 1000mm between centres and 1825mm overall length.

    Features include

    • Easy to read linear and diametrical measurements on large illuminated screen.
    • Massive 52mm spindle bore supported on taper roller bearings.
    • Induction hardened and ground bedways.
    • Ergonomic control panel including E stop switch and jogging button.
    • Slide out tray for convenient removal of swarf.
    • Spindle brake / emergency stop pedal - which will immediately brake from the highest speed. In an emergency situation, the brake will also disconnect the electrical drive.
    • Bright LED light fitted to underside of saddle guard, traverses along workpiece allowing constant, focused illumination.
    • Thoughtfully designed stand which allows for storage in roller bearing drawer.

    Additional features

    • Hardened and ground gears to headstock and gearbox to ensure long term reliable performance and extremely quiet operation.
    • Precision ground D1-5 spindle supported on taper roller bearings.
    • Safe low voltage controls with overload cut out.
    • Electrical components are quality European items throughout, by Siemens.
    • Overload clutch to saddle feed shaft.
    • Jogging button to assist chuck rotation throughout the speed range.
    • Emergency electric cut out switch.
    • Offset tailstock facility.
    • Independent feed shaft to saddle for powered longitudinal and cross feed.
    • Adjustable gibs to top slide and cross slide.
    • Interlock chuck guard and gear train cover.

     Warco GH1439 Gear Head Lathe

    Standard equipment includes

    • Digital readout system
    • Chuck 3 jaw 180mm - self centering with inside & outside jaws
    • Chuck 4 jaw [diameter tbc] - independent
    • Face plate
    • Quick change tool post
    • Fixed and travelling steadies
    • Coolant system
    • Headstock reducer with dead centre
    • Tailstock dead centre
    • Cabinet stand
    • Full length rear splash guard
    • Foot operated spindle brake
    • Thread dial indicator
    • Micro adjustable bed stop
    • Telescopic leadscrew covers
    • LED light
    • Operation manual and spare parts list
    • Toolbox and maintenance tools.

    Each machine is also supplied with its own individual accuracy test report.



    Specification

    Item No. (1 phase / 3 phase)

    4062A / 4062

    Centre height

    180mm

    Maximum swing

    360mm

    Swing over cross slide

    220mm

    Distance between centres

    1000mm

    Bed width

    187mm

    Longitudinal travel

    720mm

    Spindle taper

    D1-5

    Spindle bore

    52mm

    Maximum tool size

    16mm

    Range of spindle speeds (8)

    70 - 2000 rpm

    Range of cross feeds

    0.014 - 0.38 mm/r (32 steps)

    Range of longitudinal feeds

    0.052 - 1.392 mm/r (32 steps)

    Range of metric threads (26)

    0.4 - 7mm

    Range of imperial threads (34)

    4 - 56 tpi

    Tailstock taper

    3MT

    Tailstock quill travel

    100mm

    Top slide travel

    100mm

    Cross slide travel

    170mm

    Headstock bearings

    Taper roller

    Compound slide swivel

    360º

    Coolant system capacity

    4 litres

    Chuck mounting

    Camlock D1-5

    Motor

    1.8kw (1800w) / 2.5HP

    Power supply (Item No. 4062A)

    240v (1 phase)

    Power supply (Item No. 4062)

    440v (3 phase)

    Dimensions L x W x H
    Measurements taken to end of handle grips

    1825 x 750 x 1600mm

    Weight

    700kg

    Price includes VAT.

    If you're interested in buying one of these machines, don't hesitate to call us on 01428 682929.

    Buy with confidence - we've been supplying lathes to industry since 1975.
