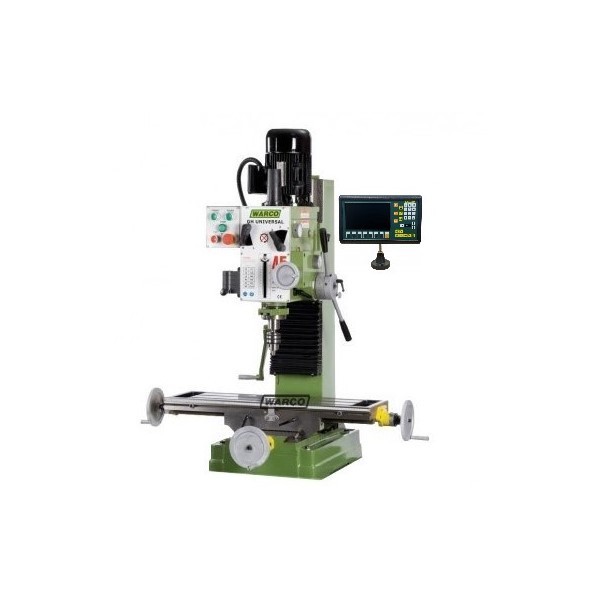

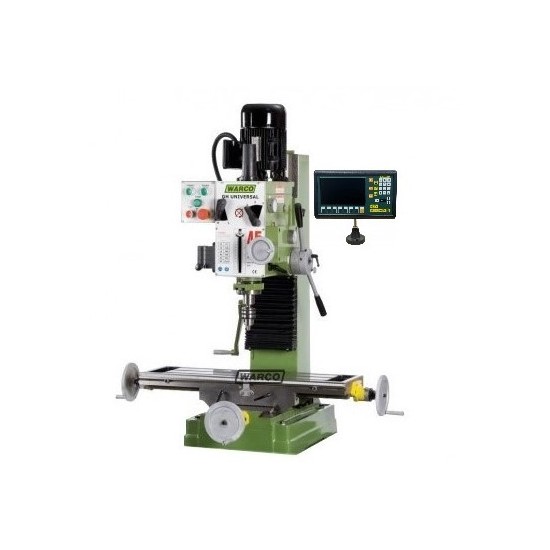

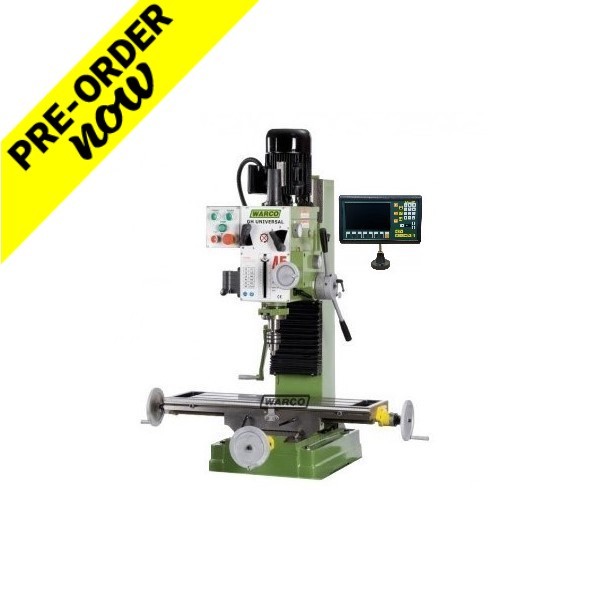

GH Universal Milling Machine with DRO - R8

    3033DRO

    £2,636.00 Inc. VAT

    £3,295.00 Inc. VAT

    More details

    product description

    Offering excellent versatility and very high levels of quality, the GH Universal is in a league of its own.

    Gear head design, straightforward to use, offering precision and accuracy for a wide range of machining tasks.

    Features include:

    • Positive head elevation on machined dovetail slideways
    • Large square column casting ensures maximum rigidity
    • Head elevation by geared crank handle, requires very little effort
    • Close tolerance headstock gears ensure very quiet operation
    • Table locks to X and Y axes
    • Tapered gibs on X, Y and Z axes
    • Large diameter spindle supported by taper roller bearings
    • Rack and pinion drilling feed
    • Spindle depth lock
    • Concertina dust covers to slideways
    • Interlock chuck guard (not shown for clarity)
    • As with all Warco milling machines, this machine uses metal gears.
    • Available with factory fitted DRO system

    Warco GH Universal Milling Machine
    Includes the following FREE accessories:

    • Drawbar 7/16" UNF
    • Drill chuck 13mm
    • Arbor for drill chuck
    • Tool box and maintenance tools
    • Operation manual and spare parts list

    Specification:

    Machine: 3033yz and droGH universal Machine

    Product Dimensions:


    Weight (machine only)290KG
    Weight (including stand)350KG
    Width x Depth x Height1270 X 930 X 2134mm
    Stand only Width x Depth x Height570 x 780 x 622mm
    Base Width x Depth400 x 600mm

    Shipping Dimensions


    Length x Width x Height 900 x 880 x 2100mm
    Power/Motor
    Motor size1.5kw
    Power Transfer (GH) gearbox or (VS) variable speedGH
    Voltage (240v single) (440v 3 Phase)240V
    Fitment (Plug connection type)3 Pin Plug
    Current50hz 7.2A
    Spindle speeds (No: and achievable speeds)6 Speed, 75, 180, 280, 600, 1000, 1600

    Main Specifications


    Table size800 x 240mm
    Longitudinal travel (X)445mm
    Cross Table travel (Y)195mm
    Head Travel or Knee (Z)415mm
    Quill/Spindle stroke 125mm
    Distance spindle to table450mm
    Throat (Spindle middle to Column)215mm
    Table height from base 260mm
    Spindle Taper size and threadR8 7/16 unf
    Head tilt left to right and Head tilt front to back90-90 (45-45 calibrated)
    Drilling capacity16mm
    Milling capacity20mm
    Spindle Bearing typeTaper Roller

    Other Specifications


    Country of originChina
    Warranty12 Months
    Approximated assembly and setup time30 mins
    CE approved CertificateYes, available upon request

    Additional products


    Optional standIncluded
    Optional power feed3205
    Optional Digital Read Out Kit8123 dro
    X axis scale (left to right)450mm
    Y axis scale (forward to back)200mm
    Z axis scale (head)450mm
    Tee Nut size and no of slots3 Slots, 8013 Clamp set 12mm
    Machine/Stand Hole positionsA=465 B=325 C=130 D=125mm
