4064
£4,395.00 Inc. VAT
Note: Almost sold out!
Availability date:

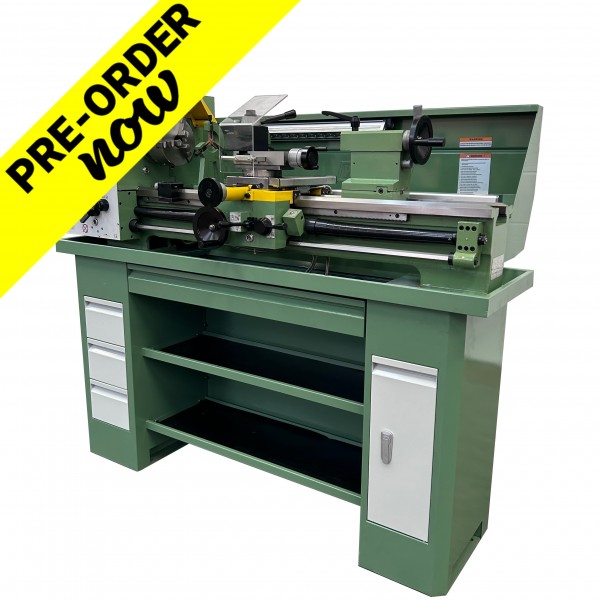

The D320 Vario is Designed for Large Hobby, with its gear head drive train and powerful 1.5kw motor it packs a punch whilst being compact and light.
Full Specification
Machine: 4064 | D320 x 880 Vario |
Product Dimensions: | |
Weight | 310kg |
Length x Width x Height | 1650x760x1350mm |
Tray Length x Width | 1570 x 420mm |
Shipping Dimensions | |
Length x Width x Height (no DRO) | |
Length x Width x Height (DRO version) | 1650x750x1160mm |
Power/Motor | |
Motor size | 1.5kw |
Power Transfer (GH) gearbox or (VS) variable speed | VS |
Spindle speeds (No: and achievable speeds) | 75-435/400-2250rpm |
Voltage (240v single) (440v 3 Phase) | 240V |
Fitment (Plug connection type) | 3 Pin Plug |
Current | 50HZ, 6.5A |
Main Specifications | |
Maximum swing | 320mm |
Centre height | 160mm |
Distance between centre’s | 900mm |
Longitudinal travel (Z) | 720mm |
Cross slide travel (X) | 190mm |
Top slide travel (fine Z) | 90mm |
Spindle taper | MT5 |
Tailstock Taper | MT3 |
Tailstock quill travel | 85mm |
Spindle Bore | 38mm |
Tool shank size recommended for C/L | 12mm |
Metric and imperial threads | Yes |
Chuck mount | D1-4 |
Spindle Bearings/Drive | Roller Taper |
Other Specifications | |
Country of origin | China |
Warranty | 12 Months |
Approximated assembly and setup time | 60 mins |
CE approved Certificate | Yes, available upon request |
Additional products | |
Optional stand | Included, requires assembly |
Optional Digital Read Out Kit | Included |
X scale | |
Z Scale | |
Chuck mount sizes | D1-4 |
Base/tray fixing holes dimensions A-B-C-D | A= 210 B=260 C= 960 D=20 E=210 mm |
