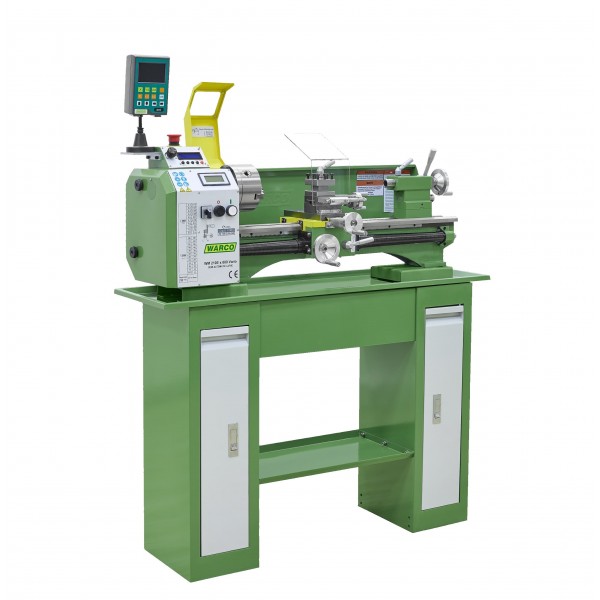

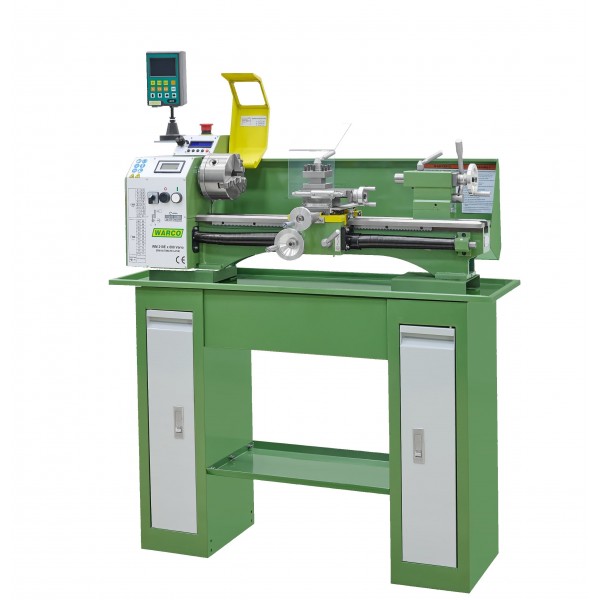

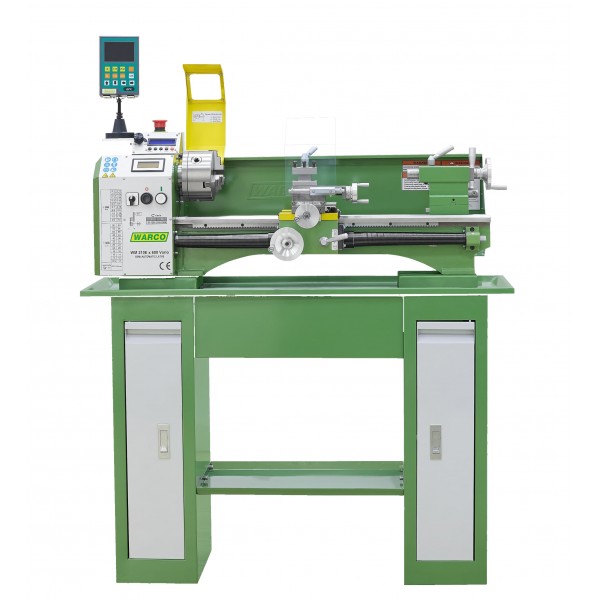

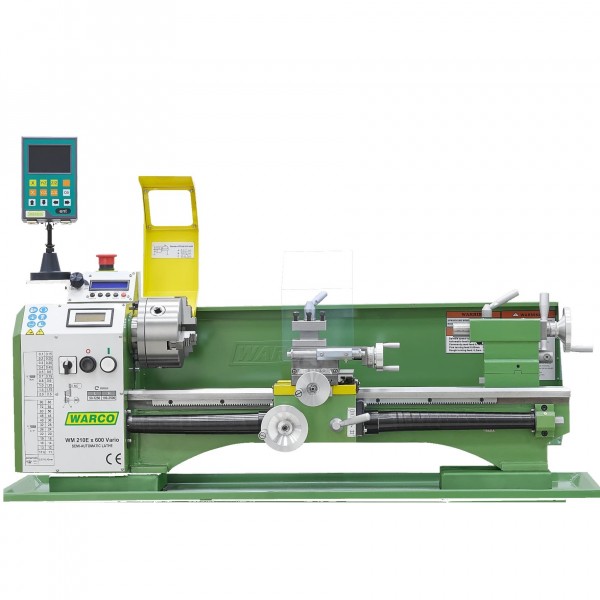

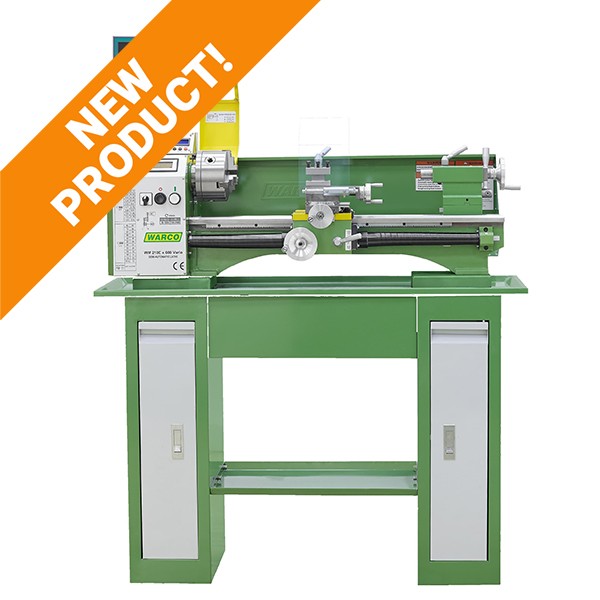

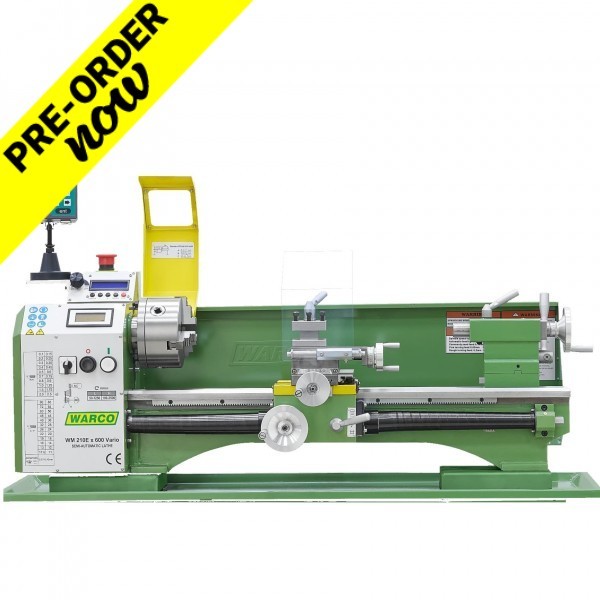

D210EL Electronic Leadscrew Lathe with DRO

    6210EL

    £2,295.00 Inc. VAT

    • NEW TO OUR RANGE
    • Perfect starter machine
    • No more Change Gears
    • Stand sold separately
    • 750w motor, light and compact
    • 12-Month Warranty
    • Fast & FREE DELIVERY to UK mainland
    • BUY NOW PAY LATER with PayPal
    • Questions & Support on Tel: 01428 682929

    More details

    product description

    NEW! Electronic Leadscrew Lathe

    Not supplied with stand this is optional

    This compact variable-speed hobby lathe, with its electronic leadscrew means no more change gears to change and an amazing range of threads can be cut simply and easily.

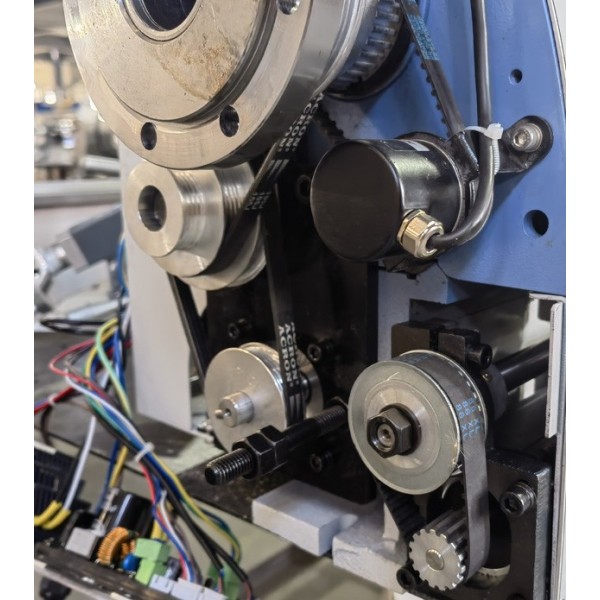

    • Electronically programmable leadscrew
    • Pitch and depth settable, automated thread pass, depth control is still manual
    • Dro as standard
    • 600mm between centres
    • Under 75kg - Free delivery is offered to mainland UK
    • Safety features on chuck
    • Stand is item 6210ST
    • Large 38mm bore

    Includes the following FREE accessories:

    • Swarf tray
    • Rear splash guard
    • Face plate
    • 3 Jaw 100mm self centre chuck with inside and outside jaws
    • 4 Jaw independent chuck 100mm
    • Fixed steady
    • Travelling steady
    • Two dead centres - 2MT / 5MT
    • Compound slide
    • Thread dial indicator
    • Toolbox with maintenance tools


    Full Spec:

    Machine: 6210EL with DROD210EL
    Product Dimensions:
    Weight75kg
    Length x Width x Height970 x440x 400mm
    Tray Length x Width 1040 x 305mm
    Shipping Dimensions
    Length x Width x Height (no DRO)n/a
    Length x Width x Height (DRO version)1100 x 460 x 470mm
    Power/Motor
    Motor size750w
    Power Transfer (GH) gearbox or (VS) variable speedhigh low (VS)
    Spindle speeds (No: and achievable speeds)50-2500 rpm
    Voltage (240v single) (440v 3 Phase)240v single
    Fitment (Plug connection type)3 pin plug
    Current50hz 3A
     Main Specifications
    Maximum swing210mm
    Centre height105mm
    Distance between centre’s600mm
    Longitudinal travel (Z)440mm
    Cross slide travel (X)85mm
    Top slide travel (fine Z)50mm
    Spindle taper  Mt5
    Tailstock TaperMt2
    Tailstock quill travel60mm
    Spindle Bore38mm
    Tool shank size recommended for C/L12mm
    Metric and imperial threads0.1-2.5MM / 11-96TPI
    Chuck mountFlange Fitting
    Spindle Bearings  /DriveTaper roller / Belt drive
    Other Specifications
    Country of originChina
    Warranty12 Months
    Approximated assembly and setup time30 mins
    CE approved CertificateYes, available upon request
    Additional products
    Optional stand6210ST
    Chuck mount sizesA=72 B=100 C=84PCD D=3MM
    Also has 4 holes for 4 jaw on flange
    Base/tray fixing holes dimensions A-B-C-DA= N/A
