WM 16B Milling Machine - Belt Drive Mill
Previous Next

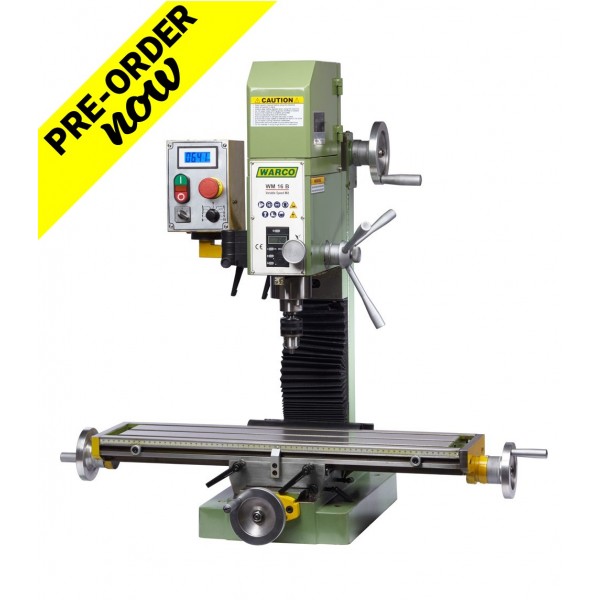

WM16B Belt Drive Mill with DRO

    3207DRO

    £2,095.00 Inc. VAT

    • Very popular belt drive mill
    • 2-axis DRO pre-installed
    • Smooth and quiet vibration-free operation
    • Tested for Accuracy - Report Supplied
    • Excellent Spare-Parts Availability
    • Includes FREE accessories
    • 12-Month Warranty
    • Fast & FREE DELIVERY to UK mainland
    • Optional stand sold separately >
    • Questions & Support on Tel: 01428 682929

    More details

    product description

    With traditional belt drive system, this machine has all the updated benefits of the dovetail column associated with gear headstock mills.

    Poly vee belt drive for positive, smooth and quiet vibration free operation.

    Features include:

    • Variable speed
    • Rack and pinion drilling action
    • Head elevates on two dovetail slideways
    • Rigid square column
    • Forward and reverse spindle rotation
    • Friction fine feed with digital metric / imperial depth gauge
    • Adjustable gibs to all axes
    • Table locks to X and Y axes
    • Head tilts 90º in both directions
    • Digital rev. counter with large easy to read digits
    • Powerful brushless motor
    • Two belt settings for maximum torque in the low speed range

    Includes the following FREE accessories:

    • Drawbars 12mm & 3/8"
    • Drill chuck 13mm
    • Arbor for drill chuck
    • Tool box and maintenance tools

    Specification:

    WM16B

    (Product Code: 3207DRO)

    Drill chuck capacity

    13mm

    Maximum drilling capacity

    25mm

    Maximum end milling capacity

    20mm

    Table size

    700 x 180mm

    No. of tee slots

    3

    Longitudinal travel

    490mm

    Cross traverse

    175mm

    Vertical traverse

    380mm

    Distance spindle to table

    370mm

    Throat

    160mm

    Spindle taper

    3MT

    Spindle stroke

    55mm

    Number of speeds

    Variable

    Overall speed range

    50-2500 rpm

    Head tilt left and right

    90º - 0 - 90º
    Calibrated 45º - 0 - 45º

    Motor

    750w

    Power

    240v / 1PH

    Dimensions W x D x H
    (Measurements taken to end of handle grips,
    with head at maximum elevation)

    950 x 620 x 1035mm

    Weight

    125kg
