WM 290V Lathe Inverter Drive Variable Speed

    This Product is out of stock, see below for expected date.

    2900D

    £4,394.50 Inc. VAT

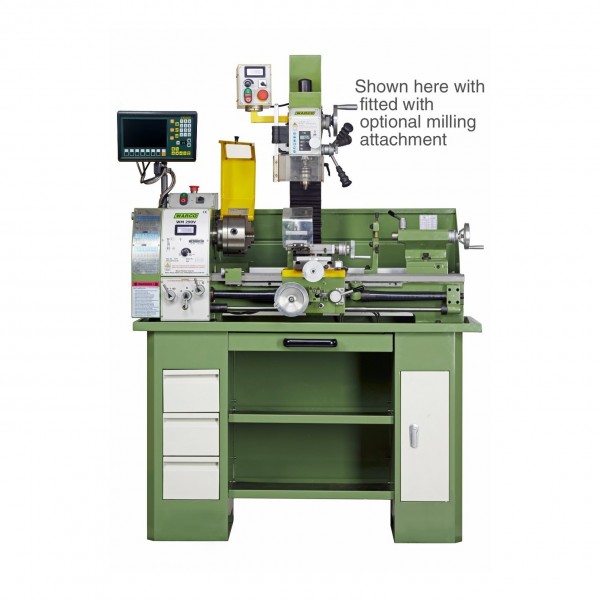

    Features integrated power feed system, digital read out, large range of standard equipment and optional milling attachment. With new and improved dependable AC motor system.

    More details

    product description

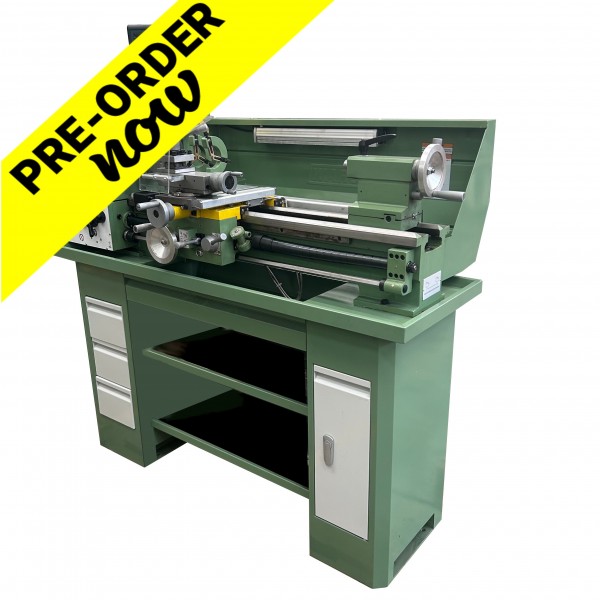

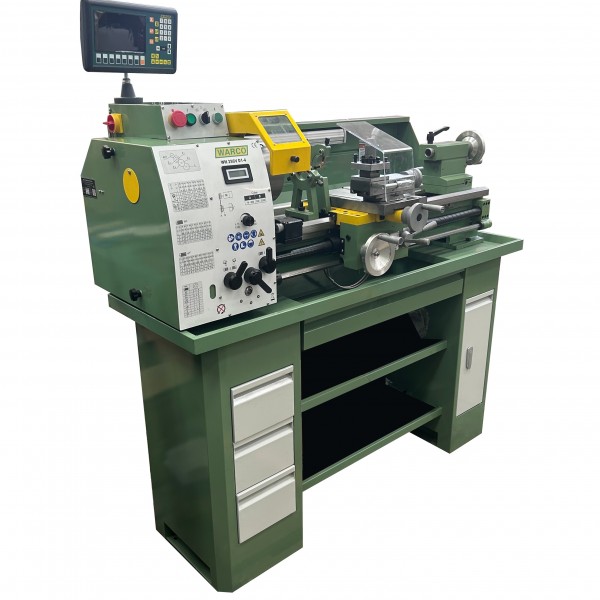

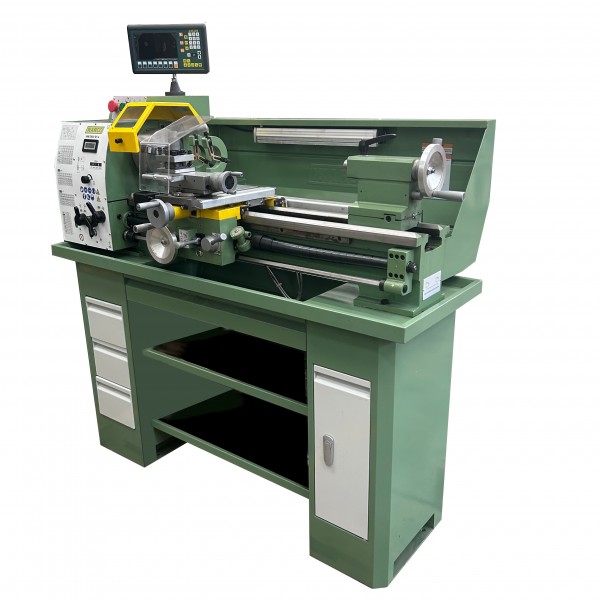

    Warco WM 290V Variable Speed Lathe

    AC Motor Inverter Drive

    Our top of the range variable speed lathe, with power cross feed and digital readout system.

    The Warco WM 290V has a Delta inverter drive with AC induction motor for ultra reliable long term performance, with the benefit of extremely quiet operation throughout.

    Features include

    • Supplied with two axis DRO
    • Extremely quiet vibration free operation
    • Full torque throughout the speed range
    • Very generous capacity
    • Large 38mm spindle bore
    • Powerful motor
    • Dedicated feed shaft for longitudinal and cross feed
    • Overload clutch to feed shaft
    • Separate leadscrew for thread cutting functions
    • Low 75 rpm speed ideally suited to thread cutting
    • High levels of torque in low speed range
    • Wide double vee bedway - hardened and ground
    • Adjustable gibs to slideways
    • Off set tailstock facility
    • Lever operated tailstock cam lock
    • Large cross slide / milling table
    • Micro adjustable bed stop
    • Tailstock quill engraved metric and imperial
    • Dependable Delta inverter drive with AC induction motor
    • Metric and imperial thread cutting
    • Cabinet stand
    • NEW! D1-4 chuck mounting
    • NEW! Motor size increased to 1.5kw (1500w)



    Warco 290 Lathe

    Supplied with a large range of tools and accessories, including

    • Cabinet stand
    • Chuck 3 Jaw 160mm self centre
    • Chuck 4 Jaw 160mm independent
    • Face plate
    • Fixed steady
    • Travelling steady
    • Dead centres x2
    • Thread dial indicator
    • Rear splash guard
    • Sward tray
    • Compound slide
    • Tool box and maintenance tools.
    • Operation manual and full parts list

    All these items with the Warco WM 290V for no extra charge.

    Buying the WM 290V

    • Extremely robust machine, offering very high levels of accuracy and precision.
    • You can buy with confidence from Warco - we've selling lathes just like this for four decades now, and have always prided ourselves on our after sales service.
    • We have a hugely comprehensive range of spare parts available for this lathe, should you ever need anything.
    • For complete peace of mind each machine comes with a 12 months warranty.
    • Each lathe is checked and tested by a member of our qualified team before leaving our premises, and will be supplied with an individual accuracy test report.
    • Supplied complete and ready to use - just plug in and start metalworking straight away.
    • Price includes UK mainland delivery.



    Full lathe specification

    Item No.

    2900D

    Centre height

    150mm

    Maximum swing

    300mm

    Swing over cross slide

    185mm

    Distance between centres

    700mm

    Bed width

    180mm

    Longitudinal travel

    570mm

    Spindle taper

    5MT

    Spindle bore

    38mm

    Range of spindle speeds

    75 - 2000 rpm

    Range of metric threads

    0.2 - 3.5mm

    Range of imperial threads

    8 - 56 tpi

    Tailstock taper

    3MT

    Tailstock quill travel

    80mm

    Top slide travel

    60mm

    Cross slide travel

    140mm

    Cross slide / Milling table

    150 x 270mm

    Tee slot width

    12.5mm

    Compound slide swivel

    360º

    Chuck mounting

    D1-4

    Headstock bearings

    Taper roller

    Motor

    1.5kw (1500w)

    Power supply

    240v

    Dimensions (on stand) L x W x H
    Measurements taken to end of handle grips.

    1380 x 635 x 1270mm

    Weight

    320kg, 365kg with stand

    Buy one of these lathes securely online, or call us on 01428 682929.

    Price includes VAT & UK mainland delivery.

    A name you can trust, we have almost 50 years in the business of supplying lathes to engineers all over the world.
