4VS Turret Milling Machine with 3 axis Dro - R8

Item No: 3018DRO3

£11,695.00 Inc. VAT

Supremely robust mill with DRO
Highly accurate and precise
Tested for Accuracy - Report Supplied
Excellent Spare-Parts Availability
12-Month Warranty
Fast Delivery to UK mainland - call for a quote
Questions & Support on Tel: 01428 682929
Finance Options for Business & Education

More details

More info
Machine Data Download

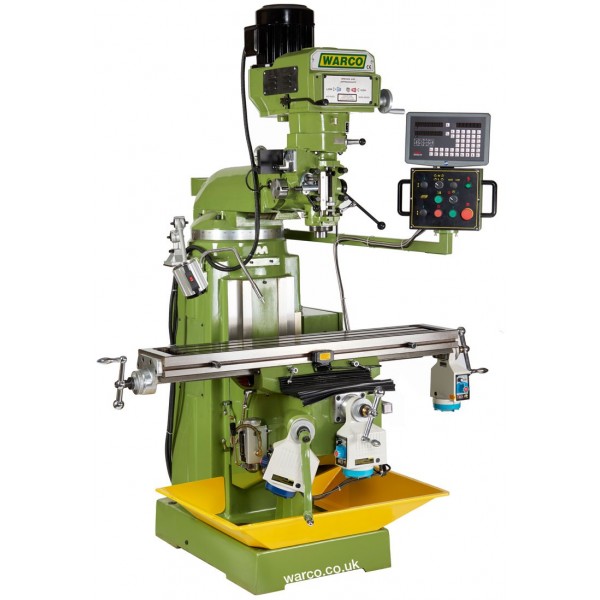

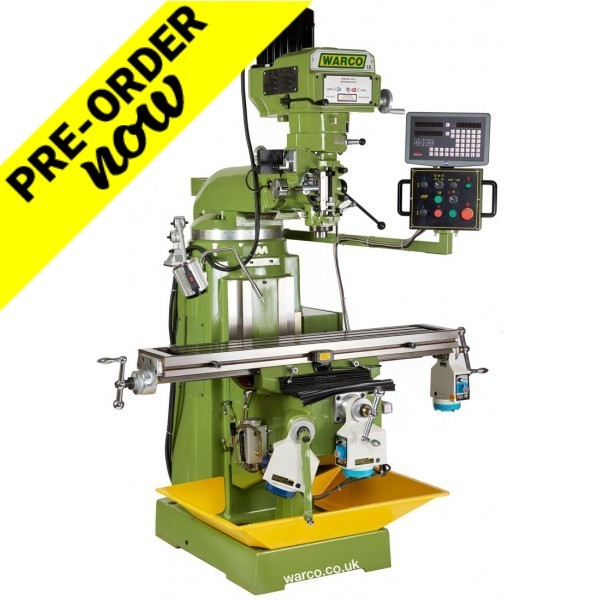

Warco 4VS Turret Milling Machine

Machinery weighing 500kg or more - delivery price varies according to size, weight and location; subject to quote.

The 4VS mill comes at the high end of our range of milling machines. With toolroom quality, supremely robust heavy duty construction, high precision and accuracy.

These mills come fully equipped and include digital readout - with highly accurate, industrial quality glass optical scales. In addition to cross and longitudinal axis, the 4VS now comes with additional scale for the knee, making this a complete 3 axis system.

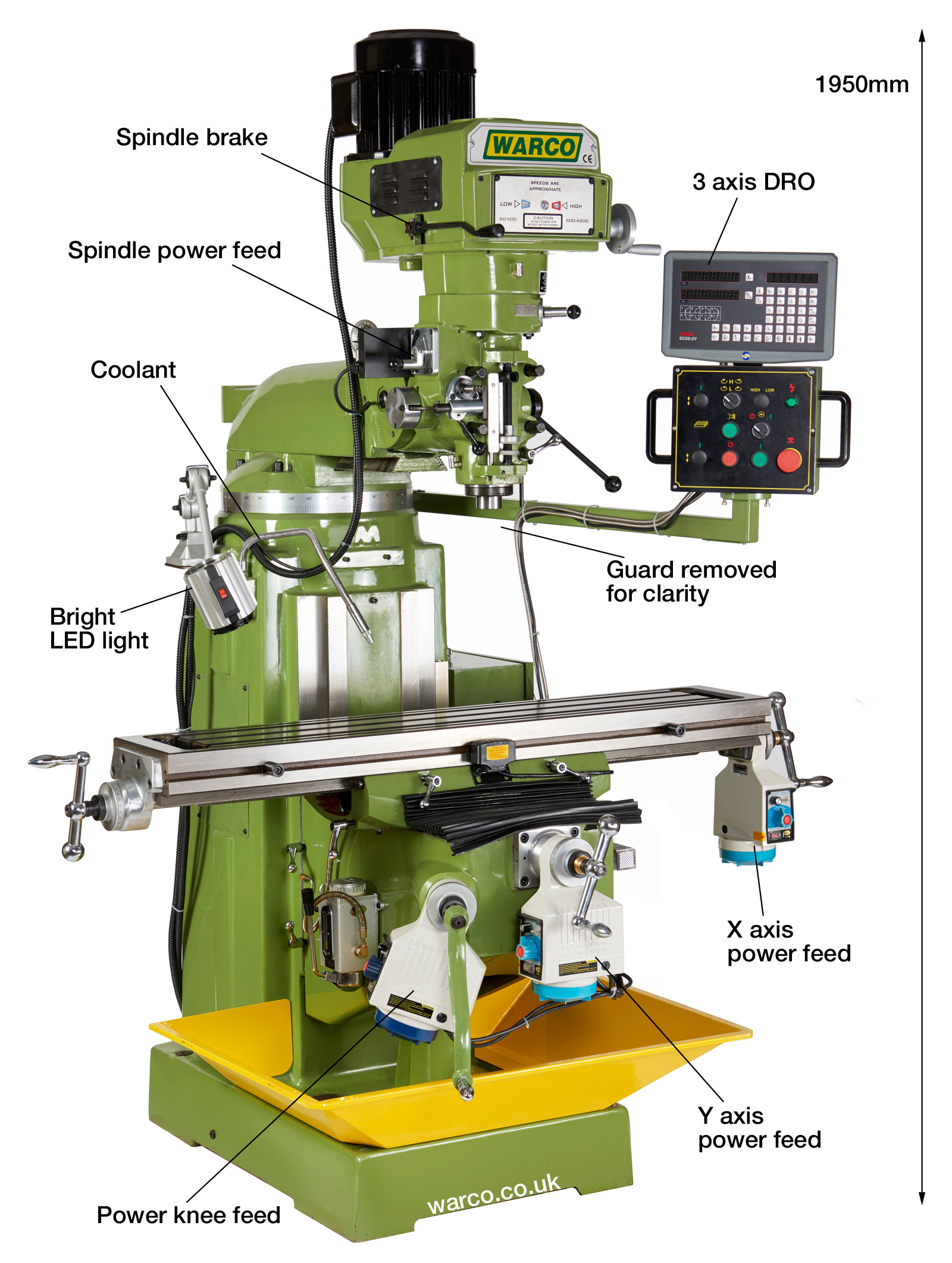

Features include

Full 3 axis digital readout system provided already installed.
Power feed to table X, Y and Z
All purpose variable speed turret head with powered quill feed
Unique design ensures spindle is firmly held by additional set of top bearings - essential for heavy duty milling
Powerful 2.2kw motor
Highest quality Meehanite GC-275 castings
Centralised lubrication system to slideways and leadscrews ensures prolonged machine life
Locks to X, Y and Z traverses
Tapered gibs to X, Y and Z traverses
Spindle brake
High quality electrical system incorporating overload protection and low voltage circuitry.

Standard equipment

Integral coolant system
Power feeds x3 - fitted to knee, cross and longitudinal
DRO 3 axis - fitted to knee, cross and longitudinal (resolution 0.005mm)
Bright LED lighting
Maintenance tools & toolbox

Buying the Warco 4VS

Very high levels of build quality come as standard on this extremely quiet, highly accurate heavy duty industrial precision milling machine.
Supplied complete with fully fitted DRO system, power feeds and more standard.
We pride ourselves on our after sales service, so rest assured when buying from Warco, you're in safe hands.
Every milling machine we supply is fully checked and tested by a member of our qualified team, and is supplied with an individual accuracy test report.
New Warco milling machines supplied by us come with a 12 month guarantee.

Specification

Machine: 3018DRO3	4VS Turret Mill
Product Dimensions:
Weight	1074KG
Width x Depth x Heigh	1650 X 1350 X 2140mm
Tray Length x Depth	910 X 660mm
Base Size Length x Depth	600 X 900mm
Shipping Dimensions
Length x Width x Height	1450 X 1460 X 2210mm
Power/Motor
Motor size	2.2Kw
Power Transfer (GH) gearbox or (VS) variable speed	VS
Voltage (240v single) (440v 3 Phase)	440v 3 Phase
Fitment (Plug connection type)	Cables
Current	50Hz 3.6A
Spindle speeds (No: and achievable speeds)	2 Speed, L=60-500 H500-4200
Main Specifications
Table size	1245 X 230mm
Longitudinal travel (X)	690mm
Cross Table travel (Y)	290mm
Head Travel or Knee (Z)	325mm
Quill/Spindle stroke	125mm
Distance spindle to table	45mm
Throat (Spindle middle to Column)	80-530mm
Table height from base	905mm
Spindle Taper size and thread	R8 7/16 unf
Head tilt left to right and Head tilt front to back	Left-Right=90-90 calibrated
Front-Back=45-45 calibrated
Drilling capacity	20mm
Milling capacity	25mm
Spindle Bearing type	Deep Groove Ball Bearings
Other Specifications
Country of origin	China
Warranty	12 Months
Approximated assembly and setup time	45mins
CE approved Certificate	Yes, available upon request

Additional products
Optional stand	N/A
Optional power feed	3 Axis included
Optional Digital Read Out Kit	3 Axis included
X axis scale (left to right)	700mm
Y axis scale (forward to back)	300mm
Z axis scale (Knee)	350mm
Tee slot size and no of slots NO OF SLOTS	3 Slots, 8013 Clamp set 12mm
Machine/Stand Hole positions	A=740 B=520 C=30 D=35mm
