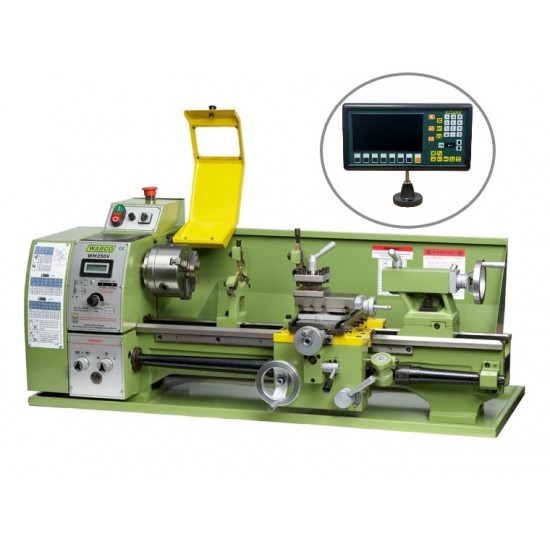

Warco WM250V Variable Speed Lathe
AC Motor Inverter Drive
The Warco WM250V is much improved throughout. The WM 250 series of lathes have been amongst our best selling machine since we first launched them, and this new machine is better than ever.
Now with Delta inverter drive with AC induction motor, benefiting from extremely quiet operation throughout and proven ultra reliable long term performance.
The AC motor means the WM 250V can be run at full speed in reverse and it now has the ability to go as low as 30 rpm - ideal for thread cutting, with excellent torque in the low speed range.
Equipped with all the features of its predecessor that made it a choice buy for hundreds of our customers - including thread dial indicator, digital rev counter and 550mm between centres, as well as power cross feed for maximum usability and convenience.
Types available
- Metric (Item No. 1034)
- Metric factory fitted with 2 axis DRO (Item No. 1034DRO)
Machine features include
- Two speed bands allow maximum torque in the lower speeds
- Infinitely variable from 30 to 2200 rpm
- Double vee bedway - hardened and ground
- Adjustable gibs to slideways
- Offset facility to tailstock
- Tailstock quill engraved metric and imperial
- Reversible motor
- Extremely quiet vibration free operation
- Metric and imperial thread cutting
- Reversible leadscrew for left hand threading
- Thread dial indicator
- Zero friction dials
- Huge torque in the low speed range.
- Fitted with powerful 1.1kw (1100w) reversible motor
- Low 30 rpm speed at the low range, ideally suited to thread cutting
- Dependable Delta inverter drive with AC induction motor
Supplied with a range of accessories and tools, including:
- Swarf tray
- Read splash guard
- Face plate
- Three jaw 125mm self centre chuck with inside and outside jaws
- Four jaw 125mm independent chuck
- Fixed steady
- Travelling steady
- Safe interlock chuck guard
- Two dead centres
- Thread dial indicator
- Toolbox with tools
Full specification
Machine: 1034/1034DRO |
WM250V |
Product Dimensions: |
|
| Weight | 150kg |
| Length x Width x Height | 1110 x 610 x 465mm |
| Tray Length x Width | 1100 x 420mm |
Shipping Dimensions |
|
| Length x Width x Height (no DRO) | 1255 x 635 x 575mm |
| Length x Width x Height (DRO version) | 1255 x 635 x 575mm |
Power/Motor |
|
| Motor size | 1.1kw |
| Power Transfer (GH) gearbox or (VS) variable speed | VS |
| Spindle speeds (No: and achievable speeds) | (2) 30-400 / 150-2200rpm |
| Voltage (240v single) (440v 3 Phase) | 240v Single |
| Fitment (Plug connection type) | 3 Pin Plug |
| Current | 50Hz |
Main Specifications |
|
| Maximum swing | 250mm |
| Centre height | 125mm |
| Distance between centre’s | 545mm |
| Longitudinal travel (Z) | 425mm |
| Cross slide travel (X) | 110mm |
| Top slide travel (fine Z) | 70mm |
| Spindle taper | MT4 |
| Tailstock Taper | MT2 |
| Tailstock quill travel | 65mm |
| Spindle Bore | 26mm |
| Tool shank size recommended for C/L | 12mm |
| Metric and imperial threads | Yes |
| Chuck mount | Flange |
| Spindle Bearings /Drive | Taper roller bearings |
Other Specifications |
|
| Country of origin | China |
| Warranty | 12 Months |
| Approximated assembly and setup time | 30 mins |
| CE approved Certificate | Yes, available upon request |
|
Additional products |
|
|
Optional stand |
3212ND |
|
Optional Digital Read Out Kit |
8123 |
|
X scale |
5104 - 150mm |
|
Z Scale |
5110 - 450mm |
|
Chuck mount sizes |
A= 52 Taper B=102 C=74.5 D=11mm |
|
Base/tray fixing holes dimensions A-B-C-D |
A= 120 B= 765 C=210 D=8 mm |
Buy this machine securely online, or feel free to call us on 01428 682929.
Buy with confidence, with unbeatable experience we've been supplying lathes to engineers since 1975.
Buying the WM 250V
- A high quality machine, very robust and accurate, truly is ready to take on a wide range of metal working and turning tasks for the long term.
- Buy with confidence from Warco - we've been selling lathes just like this for four decades now, and have always prided ourselves on our after sales service.
- We also have a hugely comprehensive range of spare parts available should you ever need them. For complete peace of mind, each machine has a 12 months warranty.
- Each lathe iS tested by our team before leaving our premises, and is supplied with an individual accuracy test report.
- All new machine with inverter drive and power cross feed.
- As with all the machinery we supply, the Warco WM 250V is supplied fully assembled and ready to go - once it arrives via our free delivery service, simply plug in and enjoy your new lathe.
