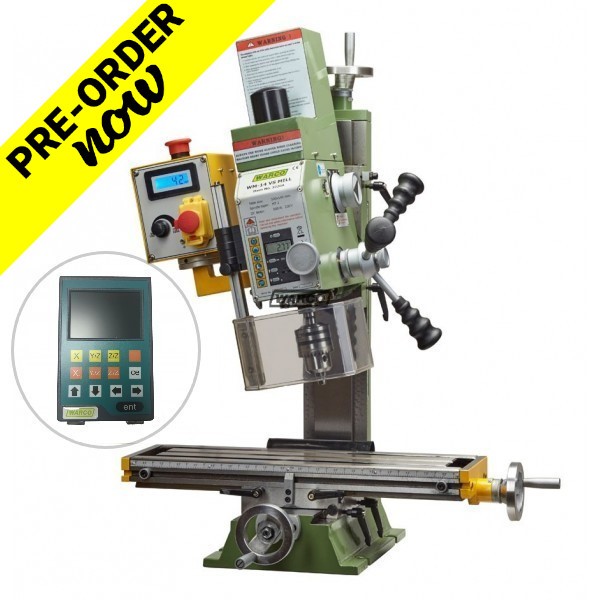

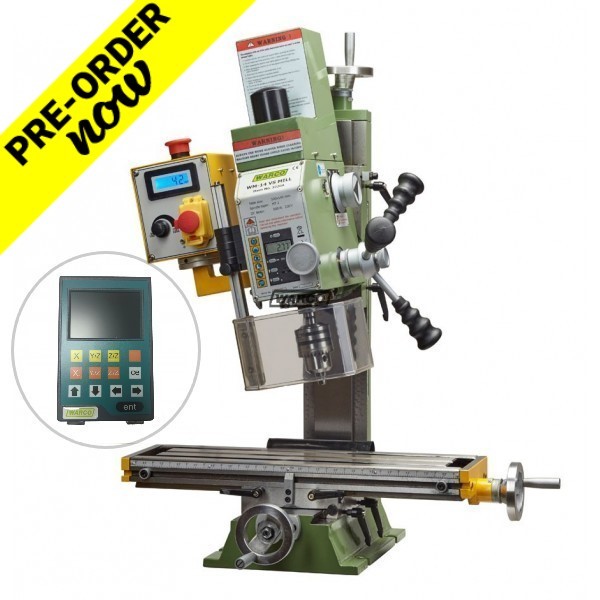

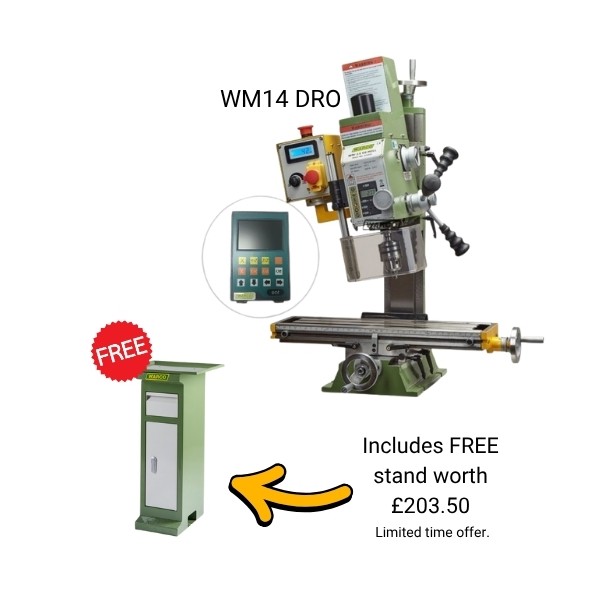

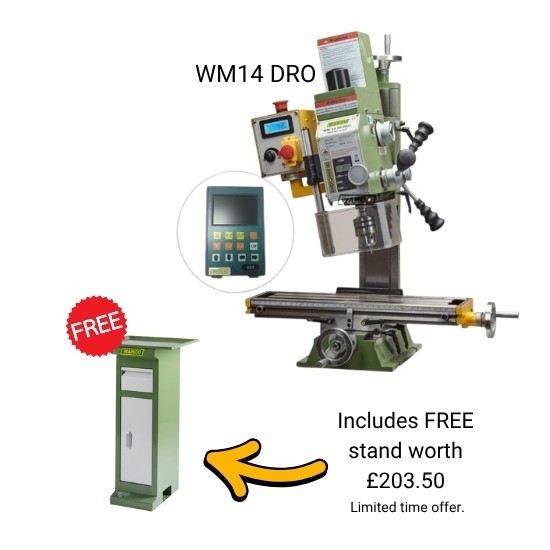

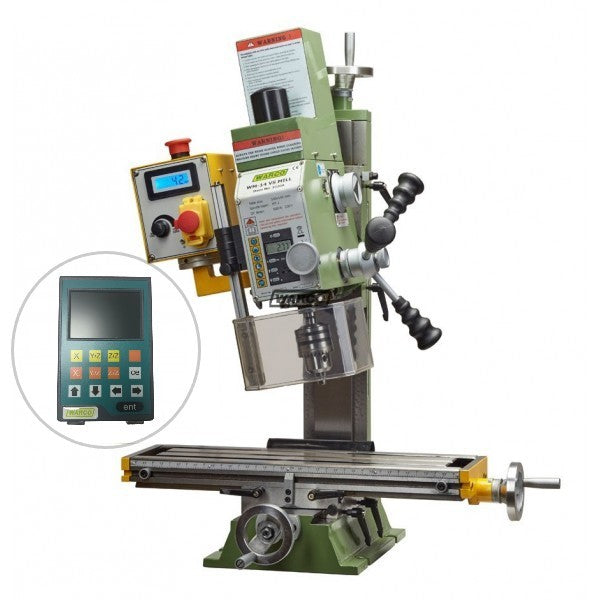

WM14 Milling Machine - Variable Speed with DRO - 2MT
3220DRO
£1,498.50 Inc. VAT
£1,665.00 Inc. VAT
10% off for pre-orders
- Our Best-Selling small milling machine
- With 3-axis DRO fitted
- Also available without DRO
- Also available with Belt-Drive
- Includes FREE Accessories
- Tested for Accuracy - Report Supplied
- Excellent Spare-Parts Availability
- 12-Month Warranty
- Fast & FREE DELIVERY to UK mainland
- Questions & Support on Tel: 01428 682929
Stock available May 29th 2025
product description
Our best selling small milling machine. All the features as our established WM14, available here with 3 axis DRO pre-installed.
Machine Features:
- Infinitely variable speeds from 50 - 2250 rpm
- Head tilts plus or minus 90°
- Dovetail column ensures positive head location
- Head elevates on two dovetail slideways
- Precision spindle supported on taper roller bearings
- Adjustable gibs to all slideways
- Rack and pinion drill feed
- Locks to head, column and slideways
- Back gear for maximum torque
- Fine feed
- Digital depth gauge with metric/imperial calibrations
- KB of America electronics
- Illuminated digital rev counter
DRO features:
- Full 3 axis system - readout on X, Y and Z traverses.
- Magnetic scales.
- Switchable between metric and imperial.
- Compact illuminated digital counter.
- Counter has strong magnetic base to enable convenient positioning.
- Easy to use.
- No need to worry about installing the kit yourself.
- This machine comes with the full system installed.
- Save on buying DRO components separately.
Includes the following FREE accessories:
- Drawbars - in 10mm and 3/8" sizes
- Drill chuck - 13mm
- Arbor for drill chuck
- Tool box and maintenance tools
- Operation manual and spare parts list
Full spec:
Model: WM14 DRO(Product Code: 3220DRO) | |
Product Dimensions: | |
| Weight | 60kg |
| Length x Width x Height | 610 x 520 x 790mm |
| Tray Length x Depth | 450 x 430mm |
| Base Size Length x Depth | 220 x 280mm |
| Shipping Dimensions | |
| Length x Width x Height | 545x 500 x 825mm |
Power/Motor | |
| Motor size | 500W |
| Power Transfer (GH) gearbox or (VS) variable speed | VS |
| Voltage (240v single) (440v 3 Phase) | 240V 50HZ 2.0A |
| Fitment (Plug connection type) | 3 Pin plug |
| Current | |
| Spindle speeds (No: and achievable speeds) | 50-1125 / 100-2250rpm |
Main Specifications | |
| Table size | 500 X 140mm |
| Longitudinal travel (X) | 360mm |
| Cross Table travel (Y) | 150mm |
| Head Travel or Knee (Z) | 200mm |
| Quill/Spindle stroke | 50mm |
| Distance spindle to table | 280mm |
| Throat (Spindle middle to Column) | 170mm |
| Table height from base | 140mm |
| Spindle Taper size and thread | MT2, 3/8 and 10mm drawbars |
| Head tilt left to right and Head tilt front to back | Side only calibrated 45/-45 deg (90-90) |
| Drilling capacity | 13mm |
| Milling capacity | 16mm |
| Spindle Bearing type | Taper Roller bearing |
Other Specifications | |
| Country of origin | China |
| Warranty | 12 Months |
| Approximated assembly and setup time | 30 mins |
| CE approved Certificate | M.2016.201Y1869 |
Additional products | |
| Optional stand | 3220DL |
| Optional power feed | N/A |
| Optional Digital Read Out Kit | 4906 |
| X axis scale (left to right) | 400MM |
| Y axis scale (forward to back) | 200MM |
| Z axis scale (head) | 300MM |
| Tee Nut size and no of slots (A-B-C-D) NO OF SLOTS | A=9.7 B=15 C=6 D=6mm (3 SLOTS) 9522 M8 |
| Machine/Stand Hole positions | A=165 B=200 C=100 D=125mm |
Please note that DC motors do not run at full speed in reverse.
