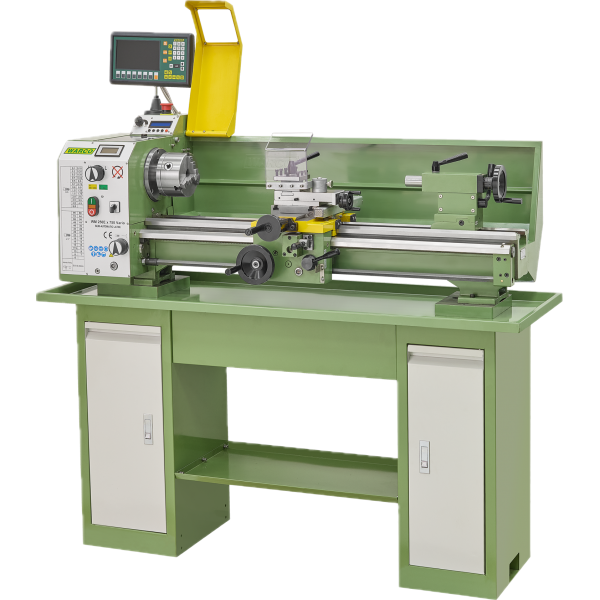

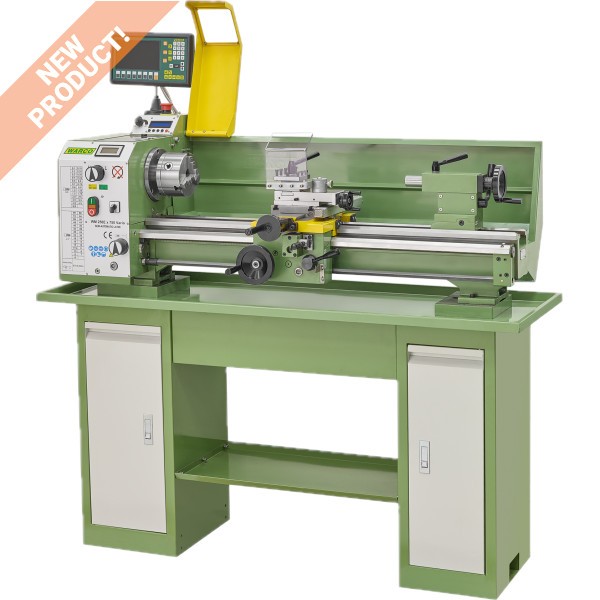

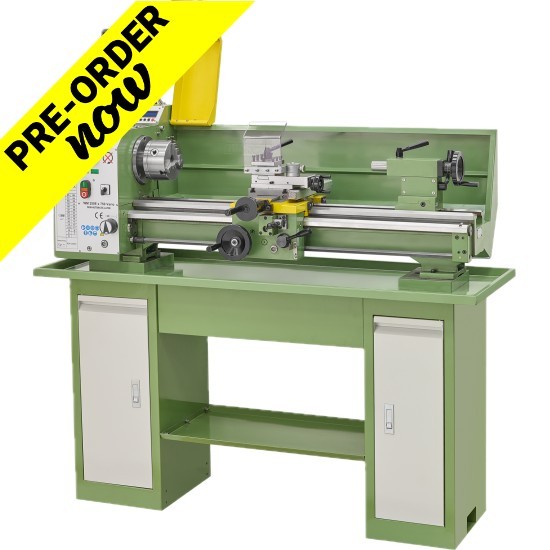

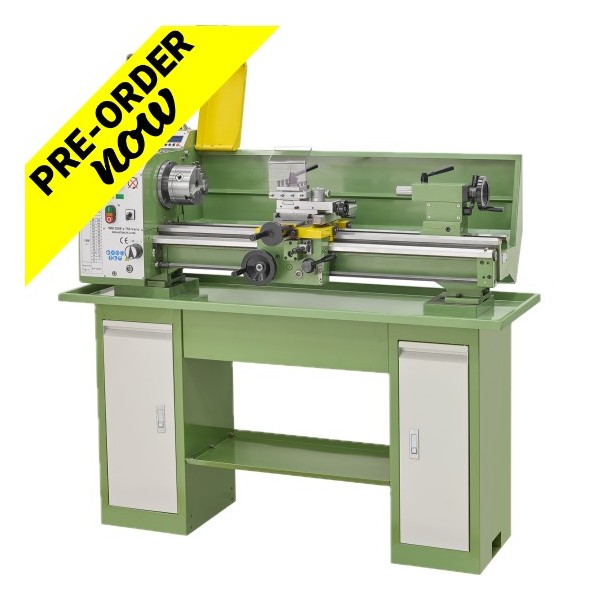

6250EL
£2,965.50 Inc. VAT
£3,295.00 Inc. VAT
Note: Almost sold out!
Availability date:
Includes the following FREE accessories:

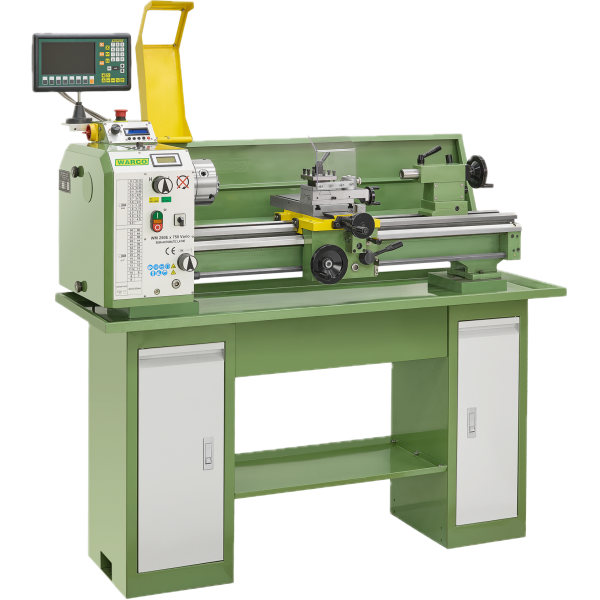

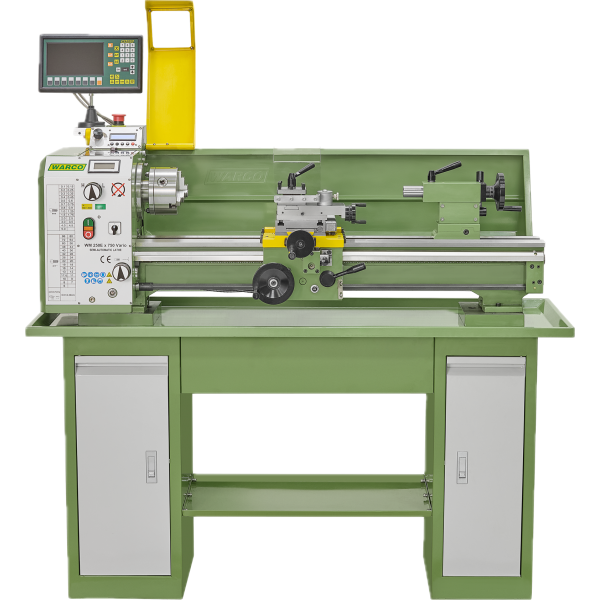

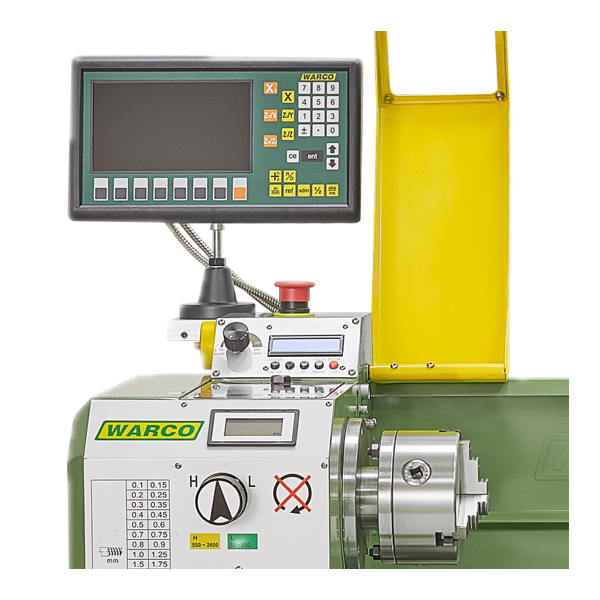

Machine: 6250EL with DRO | D250EL |
Product Dimensions: | |
Weight | 160kg |
Length x Width x Height | 1320 x 570 x 480mm |
Tray Length x Width | 1280 x 465mm |
Shipping Dimensions | |
Length x Width x Height (no DRO) | n/a |
Length x Width x Height (DRO version) | 1410 x 610 x 660mm |
Power/Motor | |
Motor size | 1.5kw |
Power Transfer (GH) gearbox or (VS) variable speed | high low (VS) |
Spindle speeds (No: and achievable speeds) | 50-2500 rpm |
Voltage (240v single) (440v 3 Phase) | 240v single |
Fitment (Plug connection type) | 3 pin plug |
Current | 50hz 6A |
Main Specifications | |
Maximum swing | 250mm |
Centre height | 125mm |
Distance between centre’s | 720mm |
Longitudinal travel (Z) | 680mm |
Cross slide travel (X) | 125mm |
Top slide travel (fine Z) | 75mm |
Spindle taper | Mt5 |
Tailstock Taper | Mt2 |
Tailstock quill travel | 60mm |
Spindle Bore | 38mm |
Tool shank size recommended for C/L | 12mm |
Metric and imperial threads | 0.2-5MM / 8-56TPI |
Chuck mount | Flange Fitting |

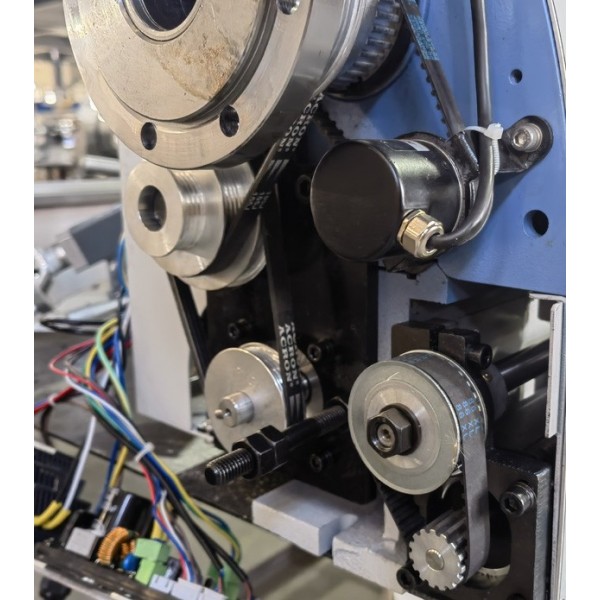

Spindle Bearings /Drive | Taper roller / Belt drive |
Other Specifications | |
Country of origin | China |
Warranty | 12 Months |
Approximated assembly and setup time | 30 mins |
CE approved Certificate | Yes, available upon request |
Additional products | |
Optional stand | 6250ST |
Base/tray fixing holes dimensions A-B-C-D | |
tbc |
