3222
£2,095.00 Inc. VAT
Note: Almost sold out!
Availability date: 26/01/2023

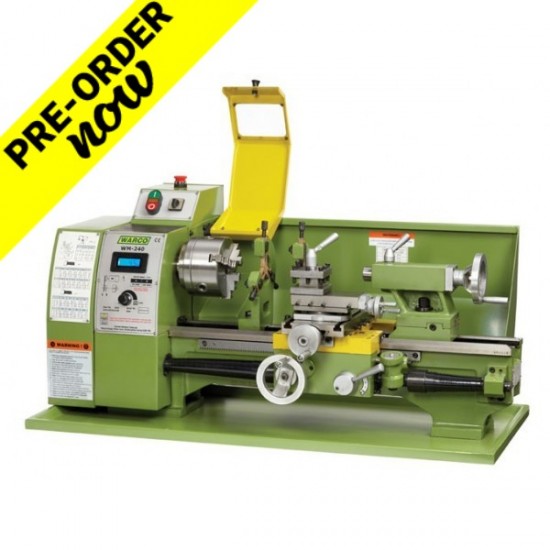

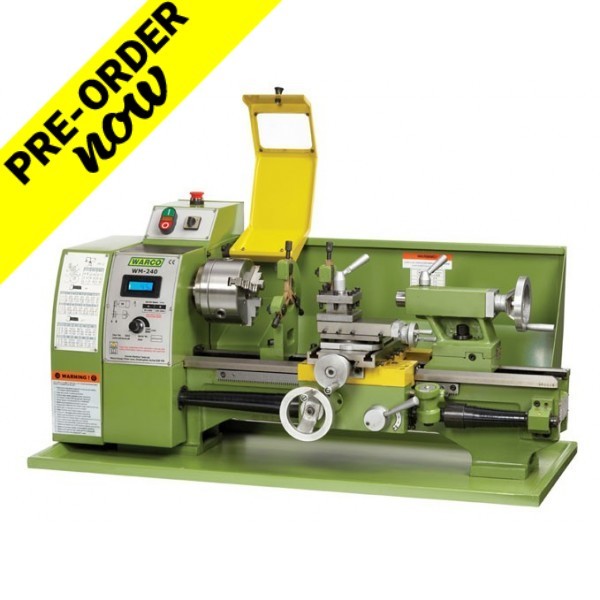

Designed with reliable, long term performance in mind, this popular heavy-duty machine is packed with features and offers high levels of accuracy.
Model: WM240(Product Code: 3222) | |
Centre height | 120mm |
Maximum swing | 240mm |
Swing over cross slide | 145mm |
Distance between centres | 400mm |
Bed width | 135mm |
Longitudinal travel | 350mm |
Spindle taper | 3MT |
Spindle bore | 21mm |
Maximum tool size | 12mm |
Range of spindle speeds | 30 - 1150 rpm |
Range of metric threads | 0.4 - 3mm |
Range of imperial threads | 10 - 44 tpi |
Tailstock taper | 2MT |
Tailstock quill travel | 75mm |
Top slide travel | 75mm |
Cross slide travel | 85mm |
Headstock bearings | Taper roller |
Compound slide swivel | 360º |
Chuck mounting | Flange fitting |
Motor | 1.1kw (1100w) |
Power supply | 240v |
Dimensions L x W x H | 1066 x 585 x 470mm |
Weight | 110kg |
Please note that DC motors do not run at full speed in reverse.
