GH1322 Lathe Gear Head

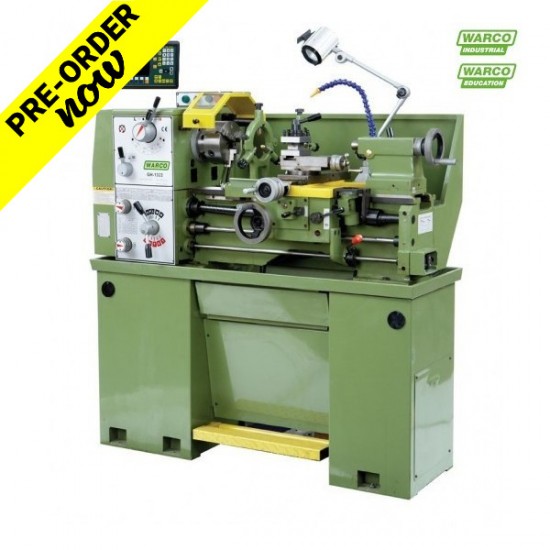

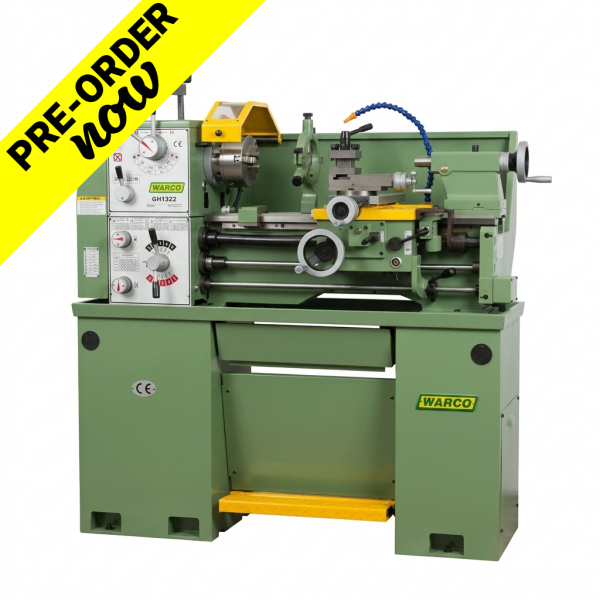

Warco GH1322 Gear Head Lathe

The Warco GH1300 series of lathes offers truly robust, durable construction, with excellent levels of build quality. Highly accurate, precise lathes with a wide range of metalworking applications.

Of all the lathes we supply to education and training establishments, the GH1322 is amongst our best selling models.

Available with or without a fully installed glass optical digital readout system and with a choice of 1 or 3 phase (240v or 440v).

GH1322 types

• GH1322 - Metric 1 Phase (Item No. 4009B)
• GH1322 - Metric 3 Phase (Item No. 4009A)

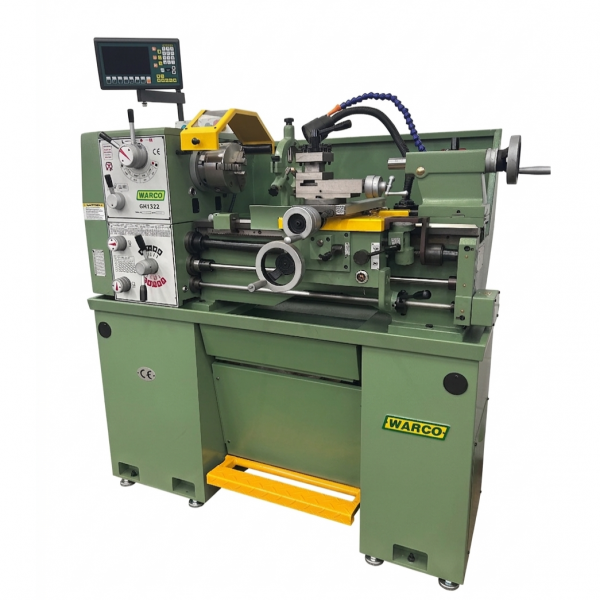

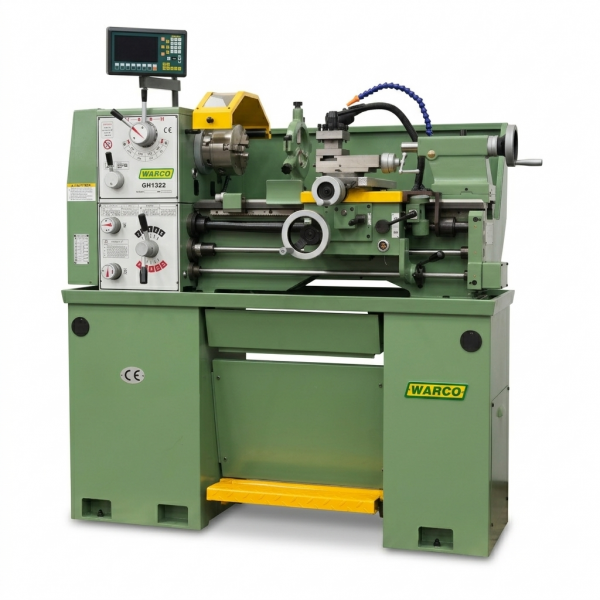

• GH1322 - Metric 1 Phase fitted with DRO (Item No. 4009B DRO)
• GH1322 - Metric 3 Phase fitted with DRO (Item No. 4009A DRO)

Note if the DRO versions are showing as unavailable above, we are always able to supply and fit DRO - our stock comes and goes frequently, so feel free to contact us for current availability.

Longer version also available

• GH1330 range here  - similar to the GH1322 shown on this page, with increased distance between centres and overall length.

Features include

• Induction hardened and ground bedways
• Hardened, precision ground headstock gears ensure extremely quiet operation
• D1-4 spindle supported by taper roller bearings
• Overload clutch to saddle feed shaft
• Removable gap bed, dowelled for accurate relocation
• Safe, low voltage circuit with overload cut out
• Spindle brake, extremely effective, will immediately brake lathe from highest speed of 2000rpm
• In an emergency situation, the brake will also disconnect the electrical drive
• Slide out coolant / chip tray
• Telescopic leadscrew covers
• Accuracy test report is supplied with each individual machine
• European electrical components, Siemens or Telemachanique
• Emergency electric cut out switch
• Jogging button to assist chuck rotation throughout the speed range
• Offset tailstock facility
• Independent feed shaft to saddle for longitudinal and cross feed
• Adjustable gibs to top slide and cross slide
• Thread dial indicator
• Power longitudinal and cross feed, powered by a dedicated feed shaft
• Interlock chuck guard and gear train cover
• Optional glass optical digital readout system.

Standard equipment included

• Cabinet stand
• Chuck 3 jaw 160mm with inside & outside jaws
• Chuck 4 Jaw 200mm independent
• Face plate 300mm
• 4 way indexable toolpost
• Fixed steady
• Travelling steady
• Coolant system
• Dead centre
• Micro adjustable bed stop
• Light
• Instruction manual and full spare parts list
• Tool box with maintenance tools

Above items included with each machine with no extra charge.

Buying this lathe

• This range of lathes is ideal for training / teaching establishments and industry alike, with a wealth of safety features and standard equipment.
• Long term reliability is assured by high levels of build quality and extremely robust construction.
• Every Warco lathe is fully run and tested by a qualified member of our team before leaving our premises, and is supplied with an individual accuracy test report.
• Buy with confidence from Warco - we've been selling lathes just like this for four decades now, and have always prided ourselves on our after sales service.
• We have a hugely comprehensive range of spare parts also available should you ever need them.
• Each lathe has a 12 month warranty for peace of mind.

GH1322 Specification (with GH1330 shown for comparison)

Buy online, or call us on 01428 682929.

Price includes VAT at 20%.

Buy with confidence, we have almost 50 years experience of supplying lathes all over the world to engineers, industry and education facilities.
