Milling Machines

VMC Milling Machine - Turret Mill

    This Product is out of stock, see below for expected date.

    £2,854.50 Inc. VAT

    ESTIMATED BACK IN STOCK :

    CALL FOR FURTHER INFORMATION ON 3017A & 3017ADRO

    Highly accurate, low cost vertical milling machine, the VMC features outstanding precision as standard.

    More details

    product description

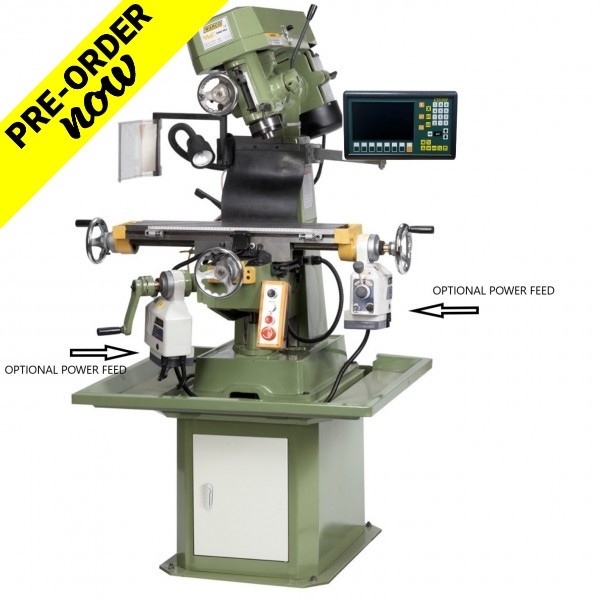

    Warco VMC Milling Machine

    Turret mill, our long standing vee belt driven machine

    Featuring extremely robust construction, the VMC Turret Mill is a popular choice with experienced engineers after precision milling without compromise.

    With a range of features, the VMC is a heavy duty machine with top levels of durability. Supplied 100% ready to start milling straight away.

     Features include

    • Nine speeds
    • Vee belt drive
    • Head tilts left to right, calibrated to 45°
    • 360° rotation on horizontal axis
    • One shot lubrication system to slideways and leadscrews to ensure prolonged machine life
    • Choice of spindles - R8 or 3MT
    • Choice of either metric or imperial leadscrews
    • Traditional design with elevating knee, supported on double dovetail vee ways to ensure positive alignment
    • Tapered gibs to X, Y and Z axes
    • Rack and pinion feed and calibrated fine feed to quill
    • Locks to X, Y and Z axes
    • Interlock belt guard
    • Cabinet stand included.
    • New! LED lighting

    Types available

    Single phase (240v)

    • Metric 3MT (Item No. 3016)
    • Metric R8 (Item No. 3017)
    • Metric R8 - With 3 Axis DRO 2 axis x/y scales only (Item No. 3017B)

    Three phase (440v)

    • Metric R8 (Item No. 3017A)
    • Metric R8 - With 2 Axis DRO (Item No. 3017ADRO)



    Each mill comes complete with the following standard equipment included in the price

    • LED lighting
    • Cabinet stand
    • Drawbar
    • Toolbox and maintenance tools
    • Operation manual and spare parts list



    Buying the Warco VMC

    • This is an accurate, low cost milling machine, capable of intensive, long term milling.
    • Superb build quality, each machine is truly built to last.
    • Hundreds of VMCs sold to happy customers over the years.
    • We have an extremely comprehensive range of spare parts available should you need them, as well as just about every accessory or additional tool you'll ever need.
    • We've always prided ourselves on our after sales service -  rest assured that when buying from Warco that you're in safe hands.
    • Every milling machine we supply is fully checked and tested by a member of our qualified team, and is supplied with an individual accuracy test report.
    • Fully guaranteed.
    • Price includes UK mainland delivery.



    Specification

    Item No.

    Please see above

    Maximum drilling capacity

    20mm

    Maximum end milling capacity

    20mm

    Table size

    660 x 155mm

    No. of tee slots

    3

    Longitudinal traverse

    370mm

    Cross traverse

    152mm

    Distance spindle to table

    345mm

    Throat

    165mm

    Spindle taper

    3MT or R8

    Spindle stroke

    89mm

    Number of speeds

    9

    Speed range

    160–2150 rpm

    Head tilt left and right

    90º - 0 - 90º

    Motor

    1125w

    Power supply

    240v or 440v

    Dimensions W x D x H
    (Measurements taken to end of handle grips,
    with head at maximum elevation)

    1092 x 1016 x 1702mm

    Weight

    415kg

    Price includes VAT and mainland UK delivery.

    We have been in the business of supplying milling machines and supporting engineers since 1975, buy with confidence.

    Order securely online, or call us on 01428 682929.
