Mini Lathe

    3004

    £669.00 Inc. VAT

    Note: Almost sold out!

    product description

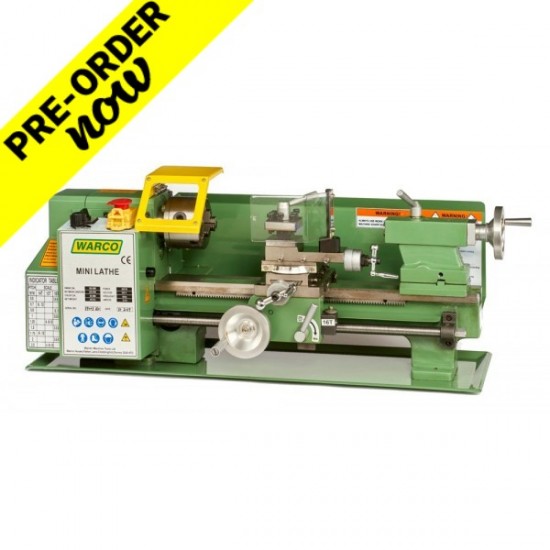

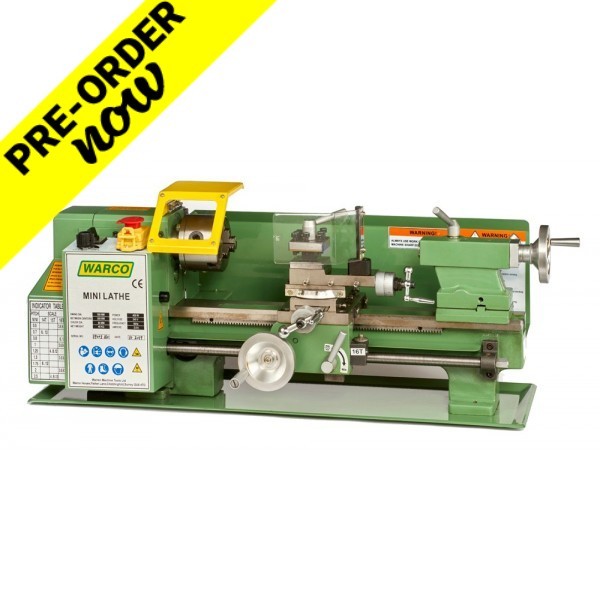

    Warco Mini Lathe

    Reintroducing our smallest starter hobby machine

    In response to customer demand, we've brought back our smallest metalworking lathe.

    Suitable for bench mounting in the home workshop, this metal turner benefits from being compact sized and budget friendly, while still offering some of the key features of larger more expensive lathes - including hardened and ground bed, threading facility, large spindle, metal handwheels and back gear for maximum torque.



    Features include

    • Induction hardened and ground bed ways
    • Distance between centres - 300mm
    • Over centre camlock on tailstock
    • Large diameter spindle supported on bearings
    • Forward and reverse
    • Back gear for maximum torque
    • Large diameter spindle supported on bearings
    • Aluminium hand wheels



    Supplied with a range of standard accessories, including

    • Chuck - 80mm 3 jaw self centering with inside and outside jaws
    • Dead centre
    • 4 way tool post
    • Threading facility
    • Swarf tray
    • Rear splash guard
    • Thread dial indicator
    • Change gears for thread cutting
    • Maintenance tools

    This equipment comes with each machine for no extra charge.



    Full specification

    Item No.

    3004

    Centre height

    90mm

    Maximum swing

    180mm

    Swing over cross slide

    100mm

    Distance between centres

    300mm

    Bed width

    80mm

    Longitudinal travel

    250mm

    Spindle taper

    3MT

    Spindle bore

    20mm

    Maximum tool size

    10mm

    Speed range low

    50 - 1100 rpm

    Speed range high

    100 - 2500 rpm

    Range of metric threads

    0.5 - 2.5mm

    Range of imperial threads

    2 - 52 tpi

    Tailstock taper

    2MT

    Tailstock quill travel

    50mm

    Top slide travel

    45mm

    Cross slide travel

    70mm

    Headstock bearings

    Front - angular contact
    Rear - sealed ball journal

    Compound slide swivel

    360º

    Chuck mounting

    Flange fitting

    Motor

    400w

    Power supply

    240v

    Dimensions L x W x H
    Measurements taken to end of handle grips.

    790  x  254 x  260mm

    Weight

    42kg  45kg boxed

    Order securely online, or call us on 01428 682929.

    Price includes all standard equipment listed, VAT & mainland UK delivery.

    Buy with confidence from Warco - we were first to market with the Mini Lathe and are now in our 5th decade of supplying lathes like this to metalworkers, hobbyists and model engineers worldwide.
