Super Major Vario Mill 3 axes Dro - R8

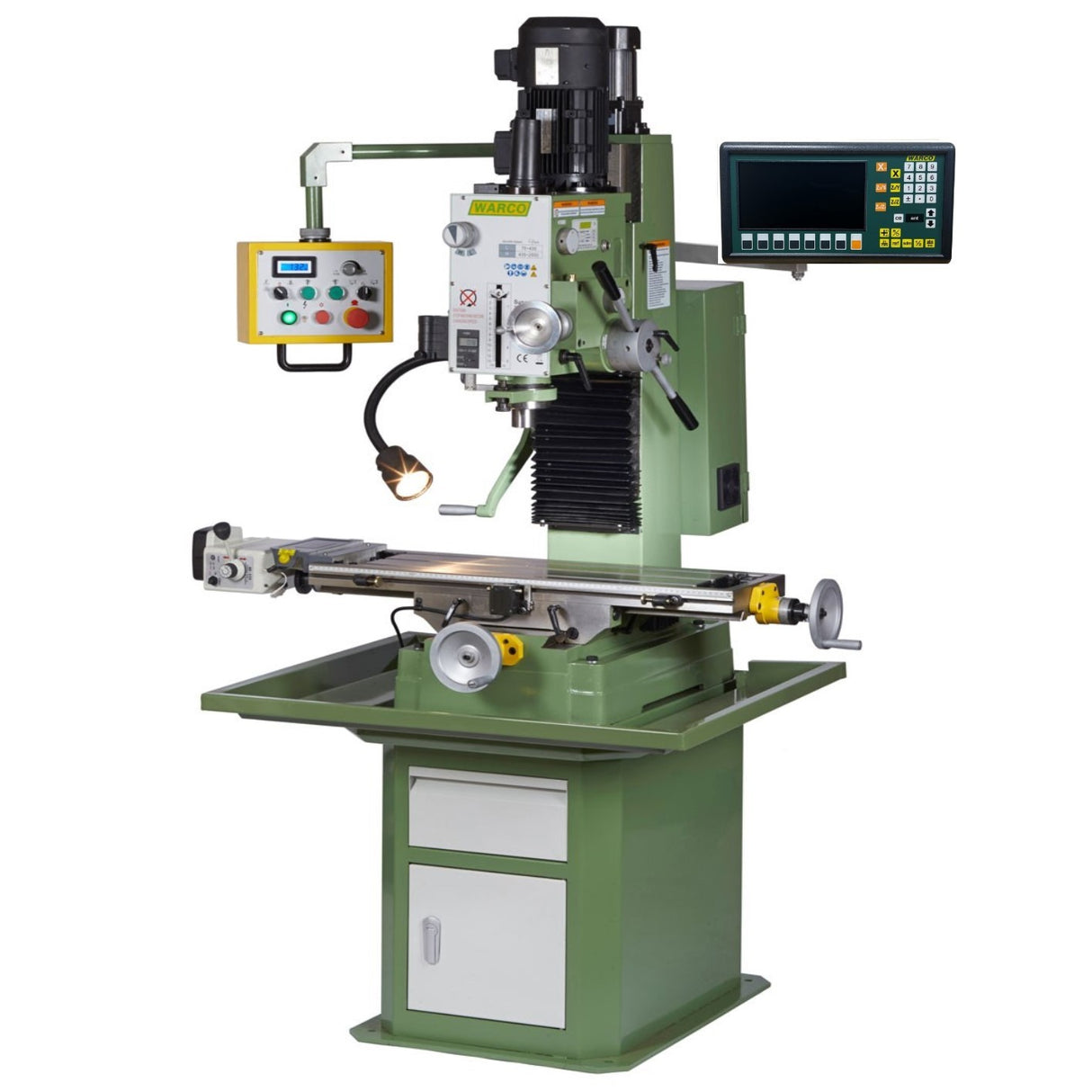

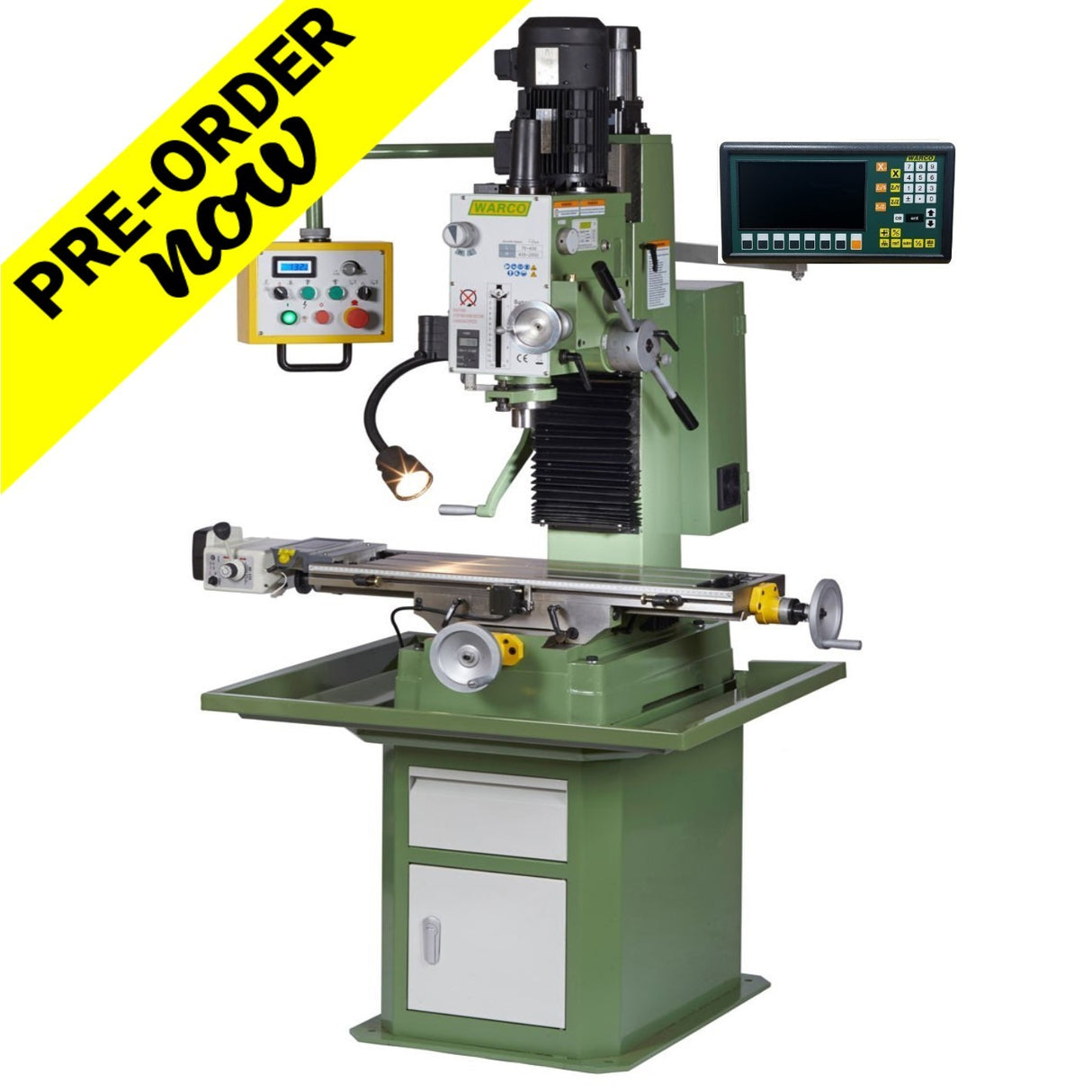

Warco Super Major Vario Milling Machine

Inverter drive, AC induction motor, infinite speed control.

Based on our long established gear change Warco Super Major, this all new version offers infinitely variable speed control through an inverter drive.

Other upgrades include two axis digital readout incorporating glass linear coolant proof scales, a digital depth gauge to measure spindle travel and digital rev counter to monitor speed.

To ensure maximum torque in the lower speed range, there is a back gear which is engaged by a single lever control.

This machine has a much enhanced speed range - now with a top speed of 2,500 rpm.

As well as the new speed control system and DRO, the Super Major Vario includes all the equipment supplied with the regular Sper Major such as stand, pre-installed longitudinal power feed and powered head which eliminates the need to manually crank the head for elevation and descent.

Types available

• With 3 Axes DRO (Item No. 3502)



Features include

• Power elevation and descent to head on machined dovetail slideways
• Large square column casting ensures maximum rigidity
• Pendant control switch
• Close tolerance headstock gears ensures quiet operation
• Safe, low voltage electric circuit which easily incorporates overload
• Interlock chuck guard
• Table locks to X and Y axes
• Tapered gibs on X, Y and Z axes
• Large diameter spindle supported by roller bearings
• Rack and pinion drilling feed
• Calibrated fine feed
• Spindle depth lock
• Concertina dust covers to slideways



Standard equipment includes

• New! DRO system - digital readout counter & glass linear optical scales
• New! Digital rev counter
• New! Digital depth gauge to measure quill travel
• New! LED low voltage lighting
• New! Tapping facility
• Cabinet stand
• Powerfeed to R8 spindle
• Powerfeed to longitudinal axis
• Drawbar
• Drill chuck 13mm
• Arbor for drill chuck
• Free Face Cutter Arbor
• R8-MT3 Arbor
• MT3-2 Arbor
• T-nuts x 2
• Tool box and maintenance tools
• Operation manual and spare parts list



Buying a Super Major Vario

• As with all of our milling machines, this is supplied with a full guarantee for peace of mind.
• Very large range of standard equipment supplied, this machine is supplied ready to go.
• Should you ever need them, we have a hugely comprehensive range of spare parts available specifically for this mill.
• As well as spare parts, we have hundreds of milling tools and accessories available.
• Every mill we supply is fully checked and tested by a member of our team, and is supplied with an individual accuracy test report.
• Warco machines are supplied fully assembled and ready to use.
• Price includes UK mainland delivery.



Specification

Item No.	3502
Maximum drilling capacity	30mm
Maximum end milling capacity	20mm
Table size	800 x 240mm
No. of tee slots	3
Longitudinal traverse	585mm
Cross traverse	220mm (restricted by dro and p-feed) 190mm
Distance spindle to table	450mm
Throat	280mm
Spindle taper	R8
Spindle stroke	130mm
Number of speeds	Infinitely variable
Speed range	75–2500 rpm
Head tilt left and right	90º - 0 - 90º
Motor	1.5kw (1500w) / 2HP
Power supply	240v / 1PH
Dimensions W x D x H (Measurements taken to end of handle grips, with head at maximum elevation)	1245 x 915 x 2134mm
Weight	450kg



Machine price includes VAT and UK mainland delivery.
