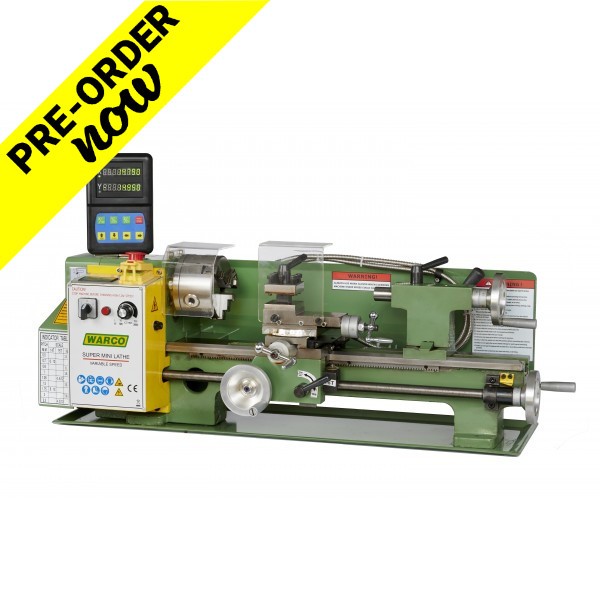

Super Mini Lathe (METRIC) With DRO

    4900DRO

    £1,195.00 Inc. VAT

    product description

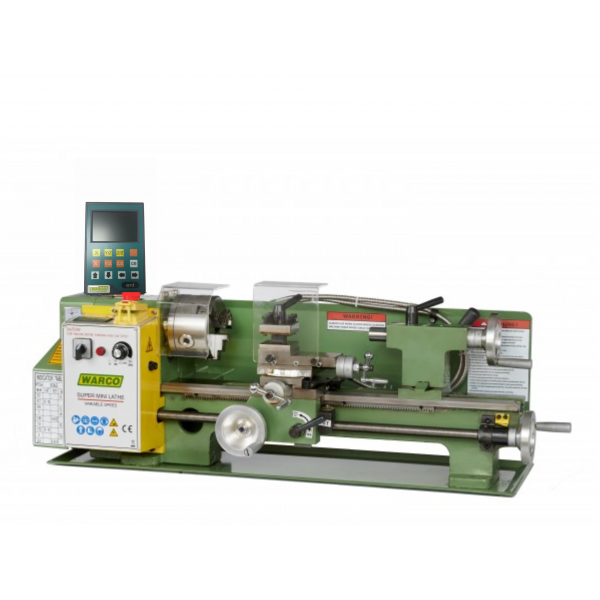

    Warco Super Mini Lathe With DRO

    • All metal head stock and thread cutting gears
    • Larger 100mm three jaw chuck
    • Brushless motor
    • All metal handwheels

    Also now fitted with metal leadscrew handwheel - an accurate, sensitive longitudinal feed.

    Other features that make our machine special remain. These include hardened and ground bedways, digital rev counter and rigid tailstock together with a cam locking mechanism.

    Warco Super Mini Lathe features

    • Induction hardened and ground bed ways
    • Distance between centres - 350mm
    • Over centre clamp on tailstock - eliminating tedious nut clamping
    • Digital readout for spindle rpm
    • Forward and reverse
    • Back gear for maximum torque
    • Metric and imperial thread cutting
    • Steel gears fitted to headstock
    • Steel change gears
    • Metal leadscrew handwheel with calibrated dial
    • Brushless motor



    Supplied with a range of standard accessories, including

    • 100mm 3 jaw self centering chuck with inside and outside jaws
    • Dead centre for tailstock, 2MT
    • 4 way tool post
    • Threading facility
    • Swarf tray
    • Rear splash guard
    • Thread dial indicator
    • Change gears for thread cutting
    • Maintenance tools

     Specification

    Product Dimensions:
    Weight45KG
    Length x Width x Height840 x 300 x 300mm
    Tray Length x Width740 x 220mm
    Shipping Dimensions
    Length x Width x Height (no DRO)850 x380 x 380mm 46kg
    Length x Width x Height (DRO version)850 x380 x 380mm 50kg
    Power/Motor
    Motor size450 Watts
    Power Transfer (GH) gearbox or (VS) variable speedBrushless DC
    Spindle speeds (No: and achievable speeds)50-2500 rpm
    Voltage (240v single) (440v 3 Phase)240v Single Phase
    Fitment (Plug connection type)3 pin plug
    Current2 amp
    Main Specifications
    Maximum swing180mm
    Centre height90mm
    Distance between center’s350mm
    Longitudinal travel (Z)330mm
    Cross slide travel (X)70mm
    Top slide travel (fine Z)75mm
    Spindle taper travel3MT
    Tailstock Taper2MT
    Tailstock quill travel50mm
    Spindle Bore21.5mm
    Tool shank size recommended for C/L10mm
    Metric and imperial threads0.5-2.5mm / 12-52tpi
    Chuck mountFlange fitting
    Chuck mount sizes72 Dia x 3mm, 3 holes on 85mm PCD
    Spindle Bearings / DriveTapered Bearings, final drive by belt
    Other Specifications
    Country of originChina
    Warranty12 Months
    Approximated assembly and setup time45 mins
    CE approved CertificateWST20070013M, WST20070013E

    Buying a hobby lathe

    The Warco Super Mini Lathe will now cut both metric and imperial threads with the appropriate change gears included - no additional cost or conversion kit required.

    We've been selling machinery just like this for over four decades now, so you're in safe hands with Warco. It was Warco who invented the term Mini Lathe, and have demanded big improvements seen on today's machine, like metal gears throughout, hardened / ground bed ways, always specifying the best quality chucks, very reliable US made electronics and the large range of standard equipment included for no extra charge.

    As with all of our lathes for sale, the Warco Super Mini is supplied with a 12 month warranty for peace of mind. We invest heavily in spare parts, meaning we have a hugely comprehensive range of spare parts available should you need them, as well as a wide selection of Mini Lathe tools. Every conceivable spare part you could ever need is available from our inventory right here in the UK.

    Every single one is tested by us before leaving our premises, and will come with an accuracy test report. Bare metal surfaces are protected by a thin layer of grease which is easily removed with a cloth. No extra charges for UK mainland delivery.
