3210
£1,565.00 Inc. VAT
Note: Almost sold out!
Availability date:

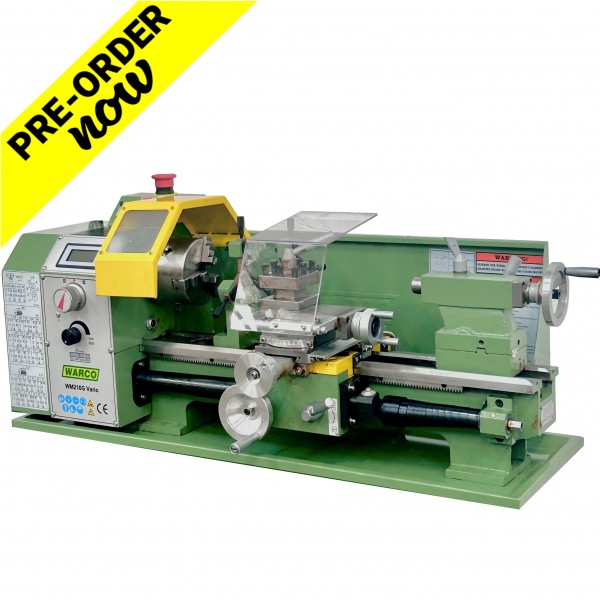

This compact variable-speed hobby lathe, with its high/low range gear and no belt changes, really packs a punch with its 550w motor.
Machine: 3210 and dro | WM210G |
Product Dimensions: | |
Weight | 65kg |
Length x Width x Height | 900 x 380 x 370mm |
Tray Length x Width | 805 x 265mm |
Shipping Dimensions | |
Length x Width x Height (no DRO) | 910 x 460 x 470mm |
Length x Width x Height (DRO version) | 910 x 460 x 470mm |
Power/Motor | |
Motor size | 550w |
Power Transfer (GH) gearbox or (VS) variable speed | Gear high low (VS) |
Spindle speeds (No: and achievable speeds) | 50-1250 / 100-2500 |
Voltage (240v single) (440v 3 Phase) | 240v single |
Fitment (Plug connection type) | 3 pin plug |
Current | 50hz 6A |
Main Specifications | |
Maximum swing | 210mm |
Centre height | 105mm |
Distance between centre’s | 400mm |
Longitudinal travel (Z) | 275mm |
Cross slide travel (X) | 85mm |
Top slide travel (fine Z) | 60mm |
Spindle taper | Mt3 |
Tailstock Taper | Mt2 |
Tailstock quill travel | 50mm |
Spindle Bore | 21mm |
Tool shank size recommended for C/L | 12mm |
Metric and imperial threads | 0.3-3MM / 10-44TPI |
Chuck mount | Flange Fitting |
Spindle Bearings /Drive | Taper roller / Belt drive |
Other Specifications | |
Country of origin | China |
Warranty | 12 Months |
Approximated assembly and setup time | 30 mins |
CE approved Certificate | Yes, available upon request |
Additional products | |
Optional stand | 3210ST |
Optional Digital Read Out Kit | 4909 |
X scale | |
Z Scale | |
Chuck mount sizes | A=72 B=100 C=84PCD D=3MM |
Also has 4 holes for 4 jaw on flange | |

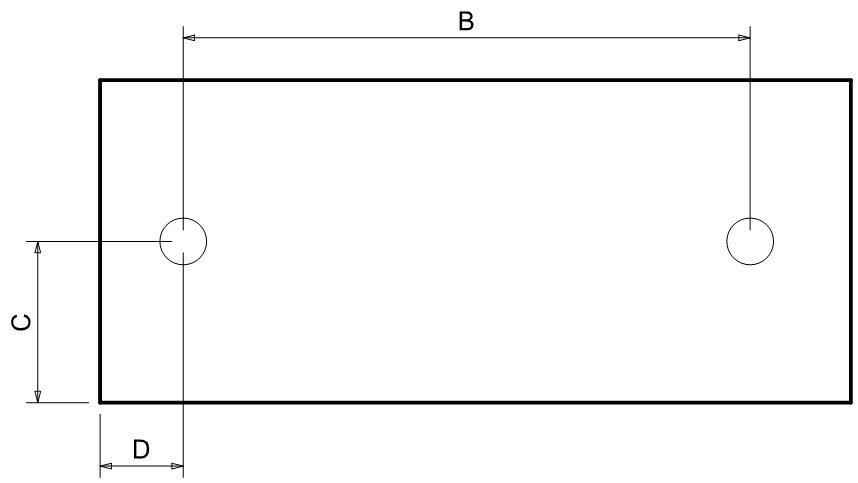

Base/tray fixing holes dimensions A-B-C-D | A= N/A |
B=655 C=125 D=70 mm |
