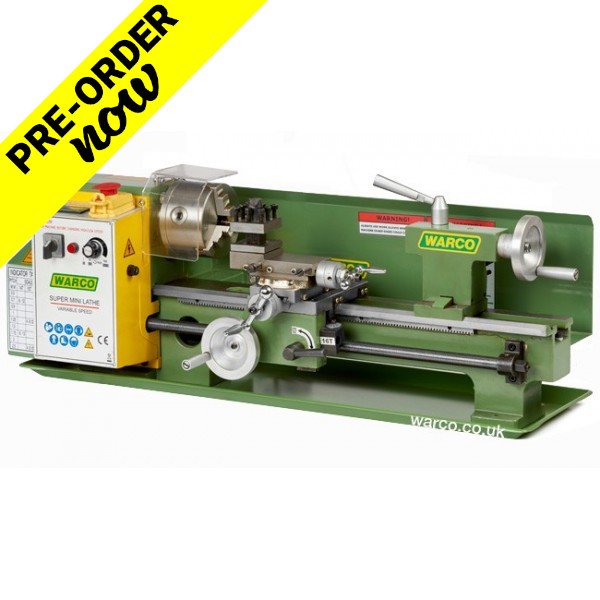

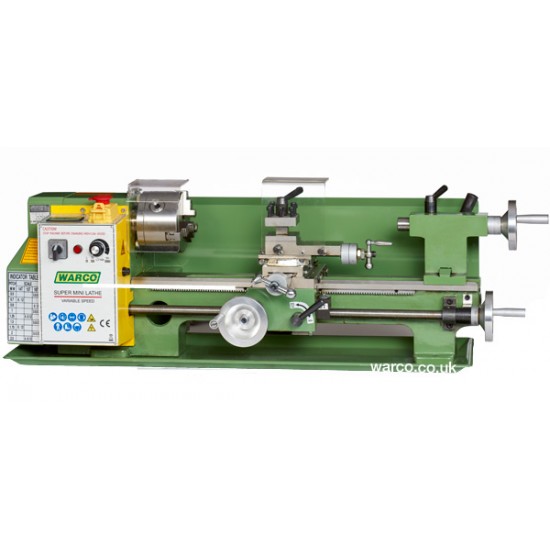

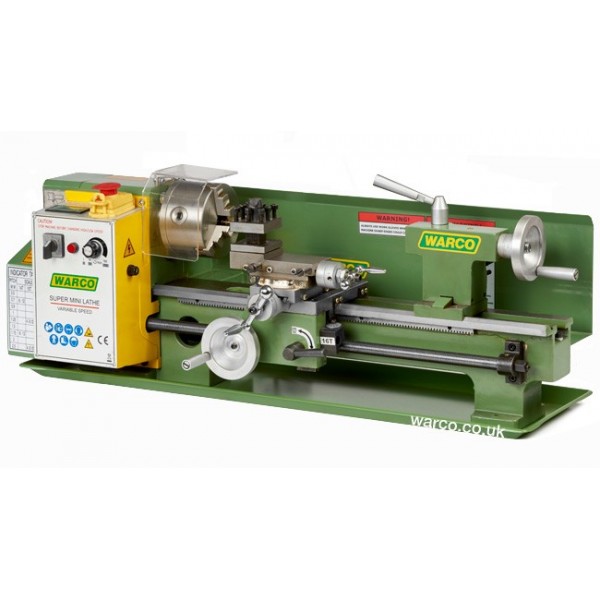

Super Mini Lathe
4900
£985.00 Inc. VAT
- Bench-top lathe with brushless motor
- Steel headstock & thread cutting gears
- Includes FREE Accessories
- Tested for Accuracy - Report Supplied
- Excellent Spare-Parts Availability
- 12-Month Warranty
- Fast & FREE DELIVERY to UK mainland
- Questions & Support on Tel: 01428 682929
product description
Warco is proud to have first invented the term 'Mini Lathe' in response to customers' needs.
Features:
- Induction hardened and ground bedways
- Larger 100mm three jaw chuck
- Distance between centres - 350mm
- Over centre clamp on tailstock - eliminating tedious nut clamping
- Digital readout for spindle rpm
- Forward and reverse
- Back gear for maximum torque
- Rigid tailstock together with a cam locking mechanism
- Metric and imperial thread cutting
- All metal head stock and thread cutting steel gears
- Metal leadscrew handwheel with calibrated dial
- Brushless motor
- Metal leadscrew handwheel - an accurate, sensitive longitudinal feed
- Bare metal surfaces are protected by a thin layer of grease which is easily removed with a cloth
Includes the following FREE accessories:
- 100mm 3 jaw self centering chuck with inside and outside jaws
- Dead centre for tailstock, 2MT
- 4 way tool post
- Threading facility
- Swarf tray
- Rear splash guard
- Thread dial indicator
- Change gears for thread cutting
- Maintenance tools
Full Spec:
| Product Dimensions: | |
| Weight | 45KG |
| Length x Width x Height | 840 x 300 x 300mm |
| Tray Length x Width | 740 x 220mm |
| Shipping Dimensions | |
| Length x Width x Height (no DRO) | 850 x380 x 380mm 46kg |
| Length x Width x Height (DRO version) | 850 x380 x 380mm 50kg |
| Power/Motor | |
| Motor size | 450 Watts |
| Power Transfer (GH) gearbox or (VS) variable speed | Brushless DC |
| Spindle speeds (No: and achievable speeds) | 50-2500 rpm |
| Voltage (240v single) (440v 3 Phase) | 240v Single Phase |
| Fitment (Plug connection type) | 3 pin plug |
| Current | 2 amp |
| Main Specifications | |
| Maximum swing | 180mm |
| Centre height | 90mm |
| Distance between center’s | 350mm |
| Longitudinal travel (Z) | 330mm |
| Cross slide travel (X) | 70mm |
| Top slide travel (fine Z) | 75mm |
| Spindle taper travel | 3MT |
| Tailstock Taper | 2MT |
| Tailstock quill travel | 50mm |
| Spindle Bore | 21.5mm |
| Tool shank size recommended for C/L | 10mm |
| Metric and imperial threads | 0.5-2.5mm / 12-52tpi |
| Chuck mount | Flange fitting |
| Chuck mount sizes | 72 Dia x 3mm, 3 holes on 85mm PCD |
| Spindle Bearings / Drive | Tapered Bearings, final drive by belt |
| Other Specifications | |
| Country of origin | China |
| Warranty | 12 Months |
| Approximated assembly and setup time | 45 mins |
| CE approved Certificate | WST20070013M, WST20070013E |
