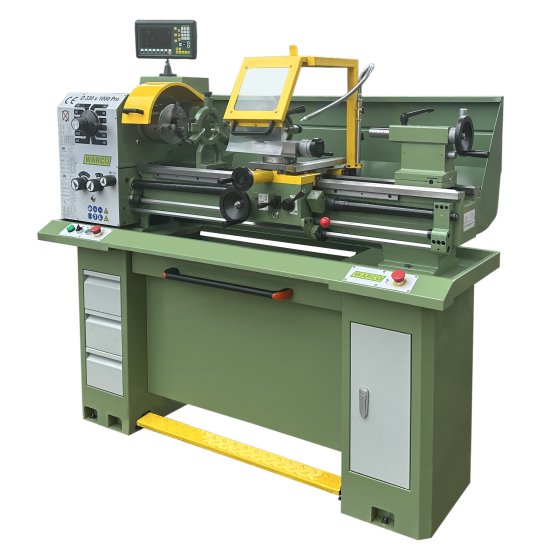

D330 Pro Lathe (gear head with stand and DRO)
4067
£4,675.50 Inc. VAT
£5,195.00 Inc. VAT
10% off for pre order machines
- Gear head lathe with stand & DRO
- Multiple Safety Features
- Powerful 1.8kw motor
- Includes FREE Accessories
- Tested for Accuracy - Report Supplied
- Excellent Spare-Parts Availability
- 12-Month Warranty
- Fast delivery to UK mainland
- Finance/Leasing Options available >
- Questions & Support on Tel: 01428 682929
Stock available March 2025
product description
The D330 Pro is designed for education, light industry and hobby. With its gear head drive train and powerful 1.8kw motor it packs a punch whilst being compact and light.
- 1000mm between centres but under 530kg
- Safety features on chuck and tools, 2 E-stops and brake pedal
- 3 jaw
- 4 jaw
- Fixed and traveling steadies
- QCTP with 3 standard and 1 vee holder
- Faceplate
- Toolbox and basic tools
Please note: Machinery weighing 500kg or more - delivery price varies according to size, weight and location; subject to quote.
Full Specification
| Machine: 4067 | D330 PRO |
| Product Dimensions: | |
| Weight | 520kg |
| Length x Width x Height | 1830 x 760 x 1660mm |
| Tray Length x Width | |
| Shipping Dimensions | |
| Length x Width x Height (no DRO) | |
| Length x Width x Height (DRO version) | 1830x760x1660mm |
| Power/Motor | |
| Motor size | 1.8kw |
| Power Transfer (GH) gearbox or (VS) variable speed | GH |
| Spindle speeds (No: and achievable speeds) | 70-2000RPM |
| Voltage (240v single) (440v 3 Phase) | 240V |
| Fitment (Plug connection type) | 3 Pin Plug |
| Current | |
| Main Specifications | |
| Maximum swing | 330mm |
| Centre height | 165mm |
| Distance between centre’s | 1000mm |
| Longitudinal travel (Z) | 800mm |
| Cross slide travel (X) | 210mm |
| Top slide travel (fine Z) | 85mm |
| Spindle taper | MT5 |
| Tailstock Taper | MT3 |
| Tailstock quill travel | 85mm |
| Spindle Bore | 38mm |
| Tool shank size recommended for C/L | 12mm |
| Metric and imperial threads | Yes 0.25-5mm/6-96tpi |
| Chuck mount | D1-4 |
| Spindle Bearings/Drive | Roller Taper |
| Other Specifications | |
| Country of origin | China |
| Warranty | 12 Months |
| Approximated assembly and setup time | 60 mins |
| CE approved Certificate | Yes, available upon request |
| Additional products | |
| Optional stand | Included |
| Optional Digital Read Out Kit | Included |
| X scale | 250mm |
| Z Scale | 800mm |
| Chuck mount sizes | D1-4 |
| Base/tray fixing holes dimensions A-B-C-D | A= 330 B=170 C=1170 D= 65 mm |
