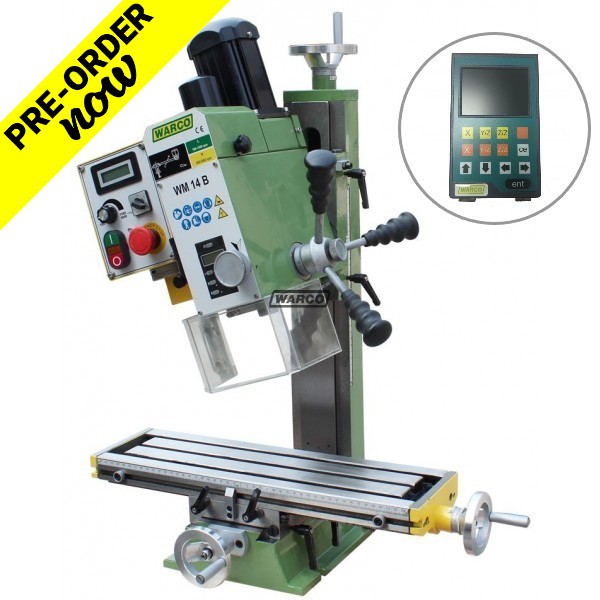

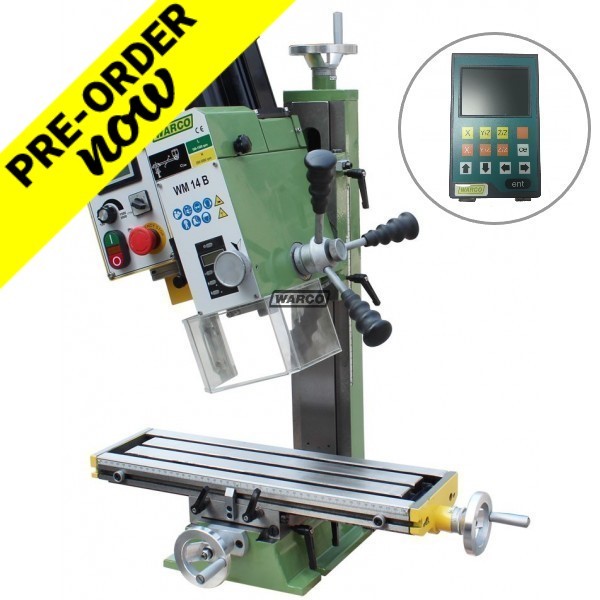

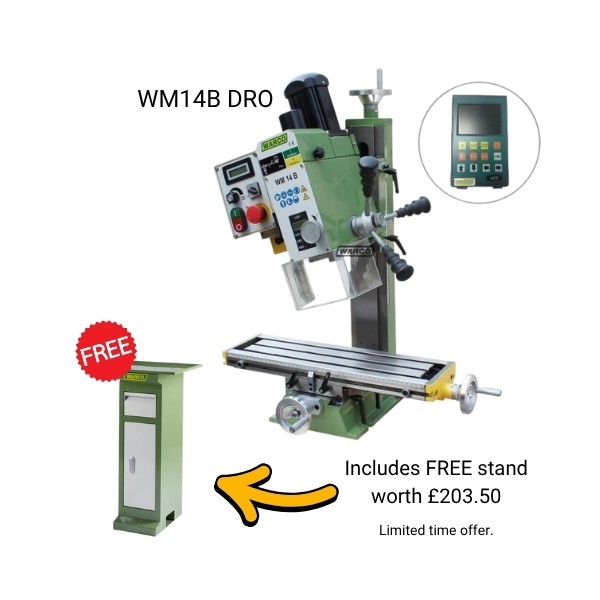

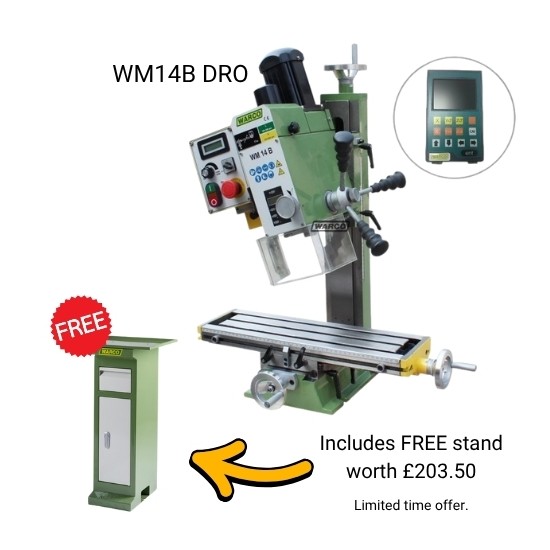

WM14B Milling Machine - Belt Drive Mill with DRO
3208DRO
£1,695.00 Inc. VAT
With DRO fitted
product description
Warco WM 14B Milling Machine (With DRO)
The WM 14B is a belt drive version of our existing popular small milling machine, the WM 14.
The WM 14B belt drive system offers exceptionally quiet operation and the mill has a brushless motor.
In common with our best selling WM 14, this is compact size, has excellent accuracy levels and is very well engineered throughout.
Features
- Belt drive, poly vee, very quiet operation
- Brushless motor
- Two step pulley ensures maximum torque in low speed setting
- Infinitely variable speeds from 100 - 3000 rpm
- Head tilts plus or minus 90°
- Dovetail column ensures positive head location
- Head elevates on two dovetail slideways
- Precision spindle supported on taper roller bearings
- Adjustable gibs to all slideways
- Rack and pinion drill feed
- Locks to head, column and slideways
- Fine feed
- Digital depth gauge with metric/imperial calibrations
- Illuminated digital rev counter
Each machine is supplied with the following for no extra charge
- Drawbar - 10mm
- Drill chuck - 13mm
- Arbor for drill chuck
- Tool box and maintenance tools
- Operation manual and spare parts list
Full WM 14 model list
- WM 14B - belt drive version (Item No. 3208) - on this page
- WM 14 - variable speed version (Item No. 3220YZ) - see here for details
- WM 14 - variable speed with DRO fitted (Item No. 3220DRO) - see here for details
Full specification
Machine: 3208DRO | WM14B with DRO |
Product Dimensions: | |
| Weight | 65kg |
| Length x Width x Height | 610 x 465 x 820mm |
| Tray Length x Depth | 450 x 430mm |
Shipping Dimensions | |
| Length x Width x Height | 525 x 525 x 840mm |
Power/Motor | |
| Motor size | 750W |
| Power Transfer (GH) gearbox or (VS) variable speed | VS |
| Voltage (240v single) (440v 3 Phase) | 240V 50HZ |
| Fitment (Plug connection type) | 3 Pin plug |
| Current | 3.2A |
| Spindle speeds (No: and achievable speeds) | 100-1500 / 200-3000rpm |
Main Specifications | |
| Table size | 500 X 140mm |
| Longitudinal travel (X) | 350mm |
| Cross Table travel (Y) | 140mm |
| Head Travel or Knee (Z) | 200mm |
| Quill/Spindle stroke | 52mm |
| Distance spindle to table | 275mm |
| Throat (Spindle middle to Column) | 170mm |
| Table height from base | 140mm |
| Spindle Taper size and thread | MT2, 3/8 and 10mm drawbars |
| Head tilt left to right and Head tilt front to back | Side only calibrated 45/-45 deg (90-90) |
| Drilling capacity | 13mm |
| Milling capacity | 16mm |
| Spindle Bearing type | Taper Roller Bearing |
Other Specifications | |
| Country of origin | China |
| Warranty | 12 Months |
| Approximated assembly and setup time | 30 mins |
| CE approved Certificate | Available upon request |
Additional products | |
| Optional stand | 3220DL |
| Optional power feed | N/A |
| Optional Digital Read Out Kit | 4906 |
| X axis scale (left to right) | 400MM |
| Y axis scale (forward to back) | 200MM |
| Z axis scale (head) | 300MM |
| Tee Nut size and no of slots | A=9.7 B=15 C=6 D=6mm (3 SLOTS) 9522 M8 |
| Machine/Stand Hole positions | A=165 B=200 C=100 D=125mm |
Please note that DC motors do not run at full speed in reverse.
Buying this machine
- As with all Warco mills these are fully guaranteed. We've been selling milling machines to engineers of all levels of ability for decades now, so our experience is unrivalled. We've always prided ourselves on our after sales service, so when you buy from Warco you can be assured you're in safe hands.
- We have a full range of spares available for this machine should you need any extras at any point - in fact one member of our team is dedicated to spares alone and will be happy to assist you.
- Every milling machine we supply is tested by a member of our qualified team, and is supplied with an individual accuracy test report.
- Standard equipment including drill chuck included at no extra cost.
- Our milling machines are supplied fully assembled and 100% ready to go - once it arrives, you can simply plug in and enjoy your new mill.
