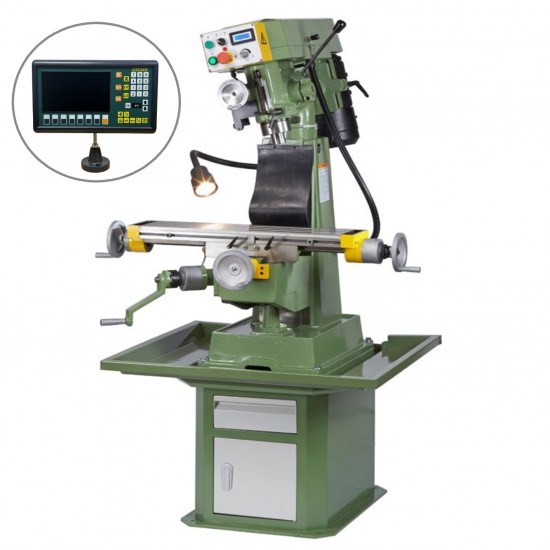

Warco VMC Vario Turret Milling Machine
Traditional design, all new inverter drive system
We introduced the original VMC more than forty years ago as a belt change machine. Now we are offering this upgraded version, with infinite speed control. A traditional design, now future proofed with bang up to date electronics.
The VMC has long had robust, heavy duty construction, giving dependable and highly precise long term performance. Now, the VMC Vario benefits from the maximum flexibility offered by the inverter drive, as well as an even more powerful 2 horse power motor.
To achieve maximum torque in the low speed range, there is one belt change of the US made Gates tooth belt, which transmits vibration free drive.
Types available
- VMC Vario (Item No. 3001)
- VMC Vario with 3 Axis DRO, 2 scales (Item No. 3001DRO)
Features include
- Head tilts left to right, calibrated to 45°
- 360° rotation on horizontal axis
- One shot lubrication system to slideways and leadscrews to ensure prolonged machine life
- R8 spindle taper
- Traditional design with elevating knee, supported on double dovetail vee ways to ensure positive alignment
- Metric leadscrews
- Tapered gibs to X, Y and Z axes
- Rack and pinion feed and calibrated fine feed to quill
- Locks to X, Y and Z axes
- Interlock belt guard
- Cabinet stand included
- NEW! Disengageable handwheels on longitudinal feeds
- NEW! Digital rev counter
- NEW! Powerful 1500w motor
Each mill comes complete with the following equipment for no extra charge
- NEW! LED low voltage lighting
- R8-3MT Reducer
- R8 B16 arbor and 1-13 keyless chuck
- Cabinet stand
- Drawbar
- Toolbox and maintenance tools
- Operation manual and spare parts list
The Warco VMC Vario
- This is an accurate, affordable milling machine, capable of intensive milling.
- Designed with the engineer in mind, each machine is truly built to last.
- Over the course of decades we've being supplying machines, we've built up a very comprehensive range of spare parts for all our machines including the VMC, should you ever need anything, as well as a large range of mill accessories and additional tools.
- Optional equipment includes wide coolant tray, DRO and power feeds.
- We've always prided ourselves on our after sales service - rest assured that you're in safe hands.
- Every milling machine we supply is fully checked and tested by a member of our qualified team, and is supplied with an individual accuracy test report.
- Fully guaranteed.
- Price includes UK mainland delivery.
Specification
Item No. | 3001 / 3001DRO |
Maximum drilling capacity | 20mm |
Maximum end milling capacity | 20mm |
Table size | 660 x 155mm |
No. of tee slots | 3 |
Longitudinal traverse | 370mm |
Cross traverse | 152mm |
Distance spindle to table | 345mm |
Throat | 165mm |
Spindle taper | R8 |
Spindle stroke | 89mm |
Number of speeds | Infinitely variable |
Speed range | 100-2500 rpm |
Head tilt left and right | 90º - 0 - 90º |
Motor | 1.5kw (1500w) / 2HP |
Power supply | 240v |
Dimensions W x D x H (Measurements taken to end of handle grips, with head at maximum elevation) | 1092 x 1016 x 1702mm |
Weight | 415kg |
Price includes VAT and mainland UK delivery.
