3220YZ
£1,265.00 Inc. VAT

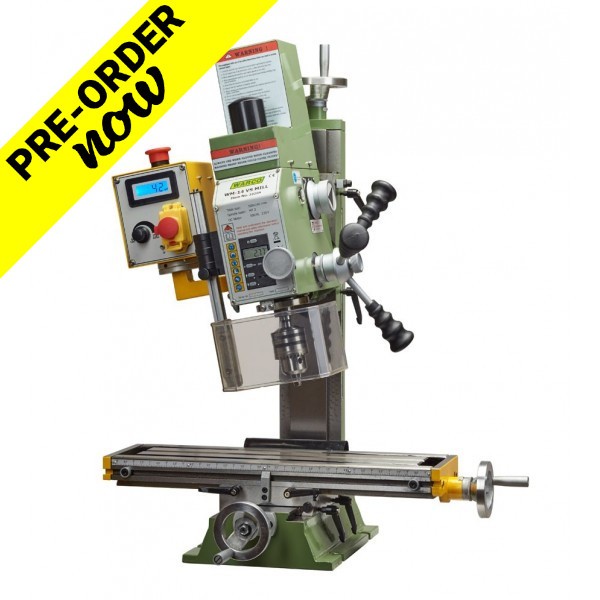

The Warco WM 14 - now with a longer table for even more work space. Top quality comes as standard on this compact variable speed metalworking mill.
Note: Almost sold out!
Availability date:
Our best selling small milling machine Warco WM 14 is our popular small milling machine.
Compact hobby size, high levels of accuracy and very well engineered throughout.
Types available
Features
Each machine is supplied with the following for no extra charge
Machine: 3220 | WM14 |
Product Dimensions: | |
Weight | 60kg |
Length x Width x Height | 610 x 520 x 790mm |
Tray Length x Depth | 450 x 430mm |
Base Size Length x Depth | 220 x 280mm |
Shipping Dimensions | |
Length x Width x Height | 545x 500 x 825mm |
Power/Motor | |
Motor size | 500W |
Power Transfer (GH) gearbox or (VS) variable speed | VS |
Voltage (240v single) (440v 3 Phase) | 240V 50HZ 2.0A |
Fitment (Plug connection type) | 3 Pin plug |
Current | |
Spindle speeds (No: and achievable speeds) | 50-1125 / 100-2250rpm |
Main Specifications | |
Table size | 500 X 140mm |
Longitudinal travel (X) | 360mm |
Cross Table travel (Y) | 150mm |
Head Travel or Knee (Z) | 200mm |
Quill/Spindle stroke | 50mm |
Distance spindle to table | 280mm |
Throat (Spindle middle to Column) | 170mm |
Table height from base | 140mm |
Spindle Taper size and thread | MT2, 3/8 and 10mm drawbars |
Head tilt left to right and Head tilt front to back | Side only calibrated 45/-45 deg (90-90) |
Drilling capacity | 13mm |
Milling capacity | 16mm |
Spindle Bearing type | Taper Roller bearing |
Other Specifications | |
Country of origin | China |
Warranty | 12 Months |
Approximated assembly and setup time | 30 mins |
CE approved Certificate | M.2016.201Y1869 |
Additional products | |
Optional stand | 3220DL |
Optional power feed | N/A |
Optional Digital Read Out Kit | 4906 |
X axis scale (left to right) | 400MM |
Y axis scale (forward to back) | 200MM |
Z axis scale (head) | 300MM |
Tee Nut size and no of slots (A-B-C-D) NO OF SLOTS | A=9.7 B=15 C=6 D=6mm (3 SLOTS) 9522 M8 |
Machine/Stand Hole positions | A=165 B=200 C=100 D=125mm |
Please note that DC motors do not run at full speed in reverse.
