WM 250V Lathe Inverter Drive Variable Speed

    1034

    £2,335.50 Inc. VAT

    £2,595.00 Inc. VAT

    • A Warco best-seller!
    • Delta inverter drive with AC motor
    • Includes FREE Accessories
    • Tested for Accuracy - Report Supplied
    • Excellent Spare-Parts Availability
    • 12-Month Warranty
    • Fast & FREE DELIVERY to UK mainland
    • Questions & Support on Tel: 01428 682929

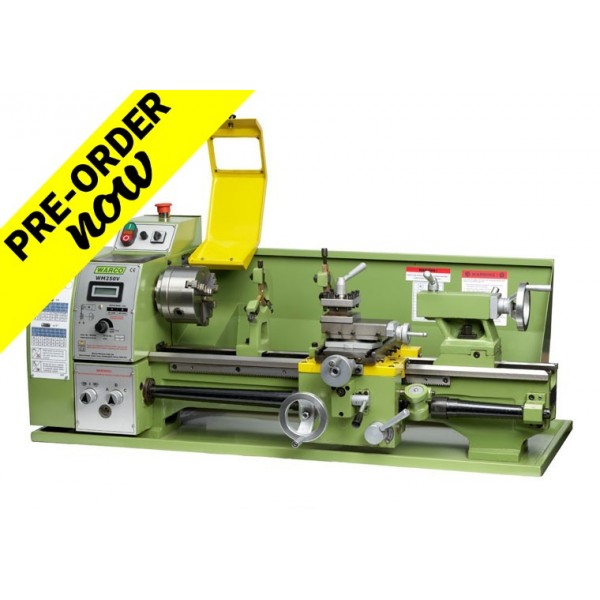

    Stock available in MAY 2025.

    More details

    product description

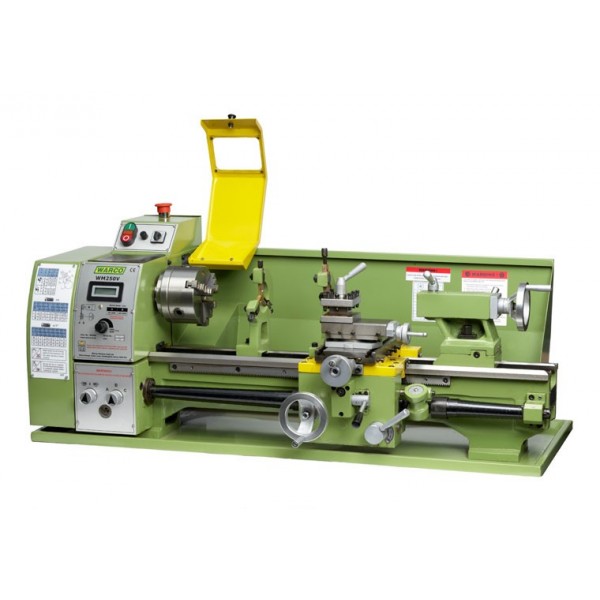

    Warco WM250V Variable Speed Lathe

    AC Motor Inverter Drive

    The Warco WM250V is much improved throughout. The WM 250 series of lathes have been amongst our best selling machine since we first launched them, and this new machine is better than ever.

    Now with Delta inverter drive with AC induction motor, benefiting from extremely quiet operation throughout and proven ultra reliable long term performance.

    The AC motor means the WM 250V can be run at full speed in reverse and it now has the ability to go as low as 30 rpm - ideal for thread cutting, with excellent torque in the low speed range.

    Equipped with all the features of its predecessor that made it a choice buy for hundreds of our customers - including thread dial indicator, digital rev counter and 550mm between centres, as well as power cross feed for maximum usability and convenience.

    Types available

    • Metric (Item No. 1034)
    • Metric factory fitted with 2 axis DRO (Item No. 1034DRO)

    Machine features include

    • Two speed bands allow maximum torque in the lower speeds
    • Infinitely variable from 30 to 2200 rpm
    • Double vee bedway - hardened and ground
    • Adjustable gibs to slideways
    • Offset facility to tailstock
    • Tailstock quill engraved metric and imperial
    • Reversible motor
    • Extremely quiet vibration free operation
    • Metric and imperial thread cutting
    • Reversible leadscrew for left hand threading
    • Thread dial indicator
    • Zero friction dials
    • Huge torque in the low speed range.
    • Fitted with powerful 1.1kw (1100w) reversible motor
    • Low 30 rpm speed at the low range, ideally suited to thread cutting
    • Dependable Delta inverter drive with AC induction motor

     Warco WM 250V Lathe

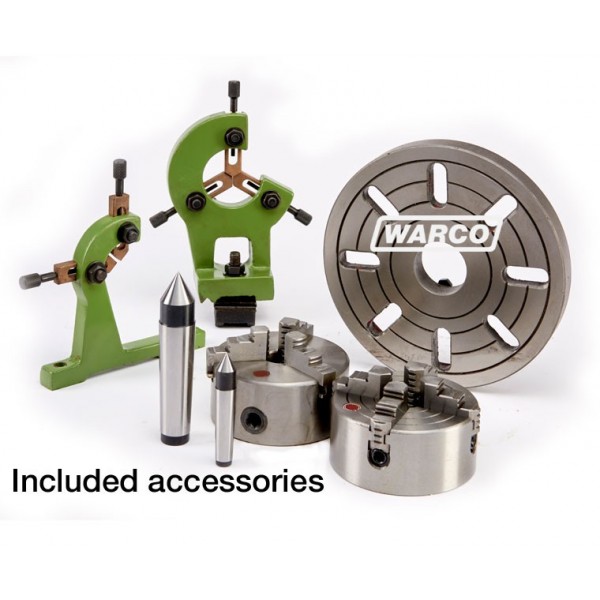

    Supplied with a range of accessories and tools, including:

    • Swarf tray
    • Read splash guard
    • Face plate
    • Three jaw 125mm self centre chuck with inside and outside jaws
    • Four jaw 125mm independent chuck
    • Fixed steady
    • Travelling steady
    • Safe interlock chuck guard
    • Two dead centres
    • Thread dial indicator
    • Toolbox with tools

    Full specification

    Machine: 1034/1034DRO

    WM250V

    Product Dimensions:


    Weight130kg
    Length x Width x Height1110 x 610 x 465mm
    Tray Length x Width 1100 x 420mm

    Shipping Dimensions


    Length x Width x Height (no DRO)1255 x 635 x 575mm
    Length x Width x Height (DRO version)1255 x 635 x 575mm

    Power/Motor


    Motor size1.1kw
    Power Transfer (GH) gearbox or (VS) variable speedVS
    Spindle speeds (No: and achievable speeds)(2) 30-400 / 150-2200rpm
    Voltage (240v single) (440v 3 Phase)240v Single
    Fitment (Plug connection type)3 Pin Plug
    Current50Hz


    Main Specifications


    Maximum swing250mm
    Centre height125mm
    Distance between centre’s545mm
    Longitudinal travel (Z)425mm
    Cross slide travel (X)110mm
    Top slide travel (fine Z)70mm
    Spindle taper MT4
    Tailstock TaperMT2
    Tailstock quill travel65mm
    Spindle Bore26mm
    Tool shank size recommended for C/L12mm
    Metric and imperial threadsYes
    Chuck mountFlange
    Spindle Bearings  /DriveTaper roller bearings

    Other Specifications


    Country of originChina
    Warranty12 Months
    Approximated assembly and setup time30 mins
    CE approved CertificateYes, available upon request

    Additional products



    Optional stand

    3212ND

    Optional Digital Read Out Kit

    8123

    X scale

    5104 - 150mm

    Z Scale

    5110 - 450mm

    Chuck mount sizes

    A= 52 Taper B=102 C=74.5 D=11mm

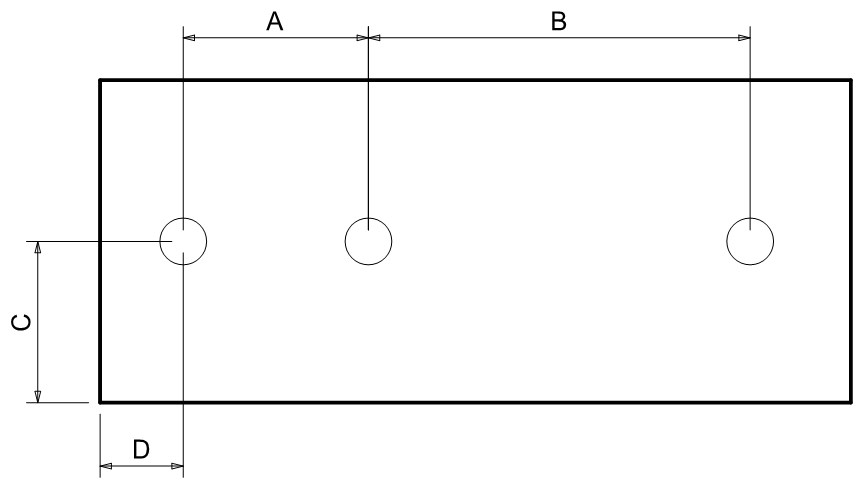

    Base/tray fixing holes dimensions A-B-C-D

    A= 120 B= 765 C=210 D=8 mm

    Buy this machine securely online, or feel free to call us on 01428 682929.

    Buy with confidence, with unbeatable experience we've been supplying lathes to engineers since 1975.

    Buying the WM 250V

    • A high quality machine, very robust and accurate, truly is ready to take on a wide range of metal working and turning tasks for the long term.
    • Buy with confidence from Warco - we've been selling lathes just like this for four decades now, and have always prided ourselves on our after sales service.
    • We also have a hugely comprehensive range of spare parts available should you ever need them. For complete peace of mind, each machine has a 12 months warranty.
    • Each lathe iS tested by our team before leaving our premises, and is supplied with an individual accuracy test report.
    • All new machine with inverter drive and power cross feed.
    • As with all the machinery we supply, the Warco WM 250V is supplied fully assembled and ready to go - once it arrives via our free delivery service, simply plug in and enjoy your new lathe.
