WM 16 Milling Machine - Variable Speed Mill R8/2MT

    £1,640.00 Inc. VAT

    product description

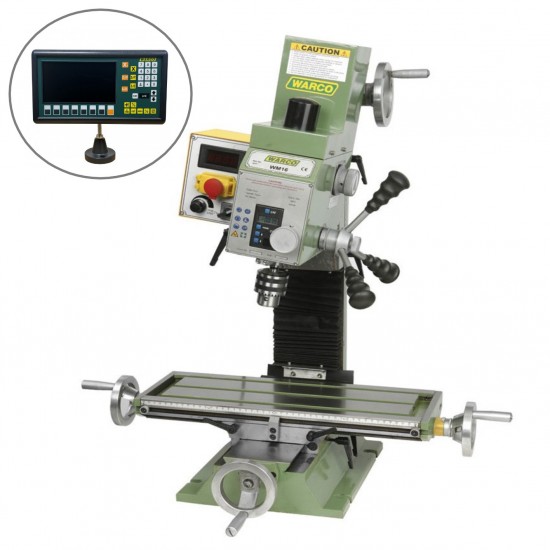

    Warco WM 16 Variable Speed Milling Machine

    The WM 16 is a very well engineered machine, with variable speed and top quality throughout.

    Very popular medium sized milling machine, offering many of the features of larger, more expensive machines at an affordable price.

    Types available

    R8

    • WM 16 Metric (Item No. 3217R) R8
    • WM 16 Metric with Power Feed on x axis (Item 3217RP) R8- available from the drop down menu above

    2MT

    • WM 16 Metric with 2 axis DRO (Item No. 3217DRO) 2MT   - available from the drop down menu above

    WM16 features include

    • Infinitely variable from 50 - 2250 rpm
    • Dovetail column ensures positive head location
    • Precision spindle supported on taper roller bearings
    • Adjustable gibs to slideways
    • Reversible motor
    • Head tilts plus or minus 90°
    • Rack and pinion drill feed plus fine feed for extremely accurate machining
    • Locks to head, column and slideways

    Warco WM16 Milling Machine

    Standard equipment supplied with each machine for no extra charge

    • Drawbars
    • Drill chuck - 13mm
    • Arbor for drill chuck
    • Tool box and maintenance tools
    • Operation manual and spare parts list

    Buying the WM 16

    • Each machine is fully checked and tested by us, and is supplied with an individual accuracy test report.
    • Every Warco mill bought new from us is fully guaranteed
    • Standard equipment that comes with each WM 16 for no additional charge includes drill chuck, arbor and tool box.
    • Large range of accessories and hugely comprehensive range of spare parts available.
    • Just like all our mills, Warco WM 16s are supplied fully assembled and 100% ready to go - once it arrives, simply plug in and enjoy your new mill.
    • We've been selling milling machines to engineers of all levels of ability for decades now, and our experience is unrivalled. We've always prided ourselves on our after sales service, so when you buy from Warco you can be assured you're in safe hands.

    Specification

    Item No. (Metric / Metric DRO)

    3217R / 3217DRO/3217RP

    Drill chuck capacity

    13mm

    Maximum end milling capacity

    16mm

    Table size

    700 x 180mm

    No. of tee slots

    3

    Longitudinal traverse

    485mm

    Cross traverse

    175mm

    Distance spindle to table

    370mm

    Throat

    160mm

    Spindle taper

    2MT/R8

    Spindle stroke

    50mm

    Number of speeds

    Variable

    Speed range

    50-2250 rpm

    Head tilt left and right

    90º - 0 - 90º
    Calibrated 45º - 0 - 45º

    Motor

    750w

    Power supply

    240v / 1PH

    Dimensions W x D x H
    (Measurements taken to end of handle grips,
    with head at maximum elevation)

    950 x 590 x 930mm

    Weight

    113kg

    Please note that DC motors do not run at full speed in reverse.

    We've been in the business of supplying mills to engineers worldwide for since the 1970s, with unbeatable experience and a proven track record you can buy with confidence.

    Order a WM 16 securely online, or call us on 01428 682929.
