GH1236 Lathe Gear Head (New Ex Showroom)

GH1236 Lathe Gear Head (New Ex Showroom)

Reference Only:

Machinery weighing 500kg or more - delivery price varies according to size, weight and location; subject to quote.

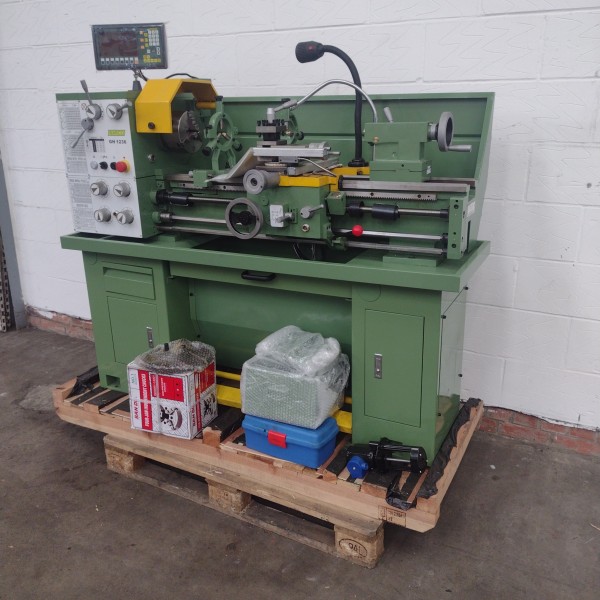

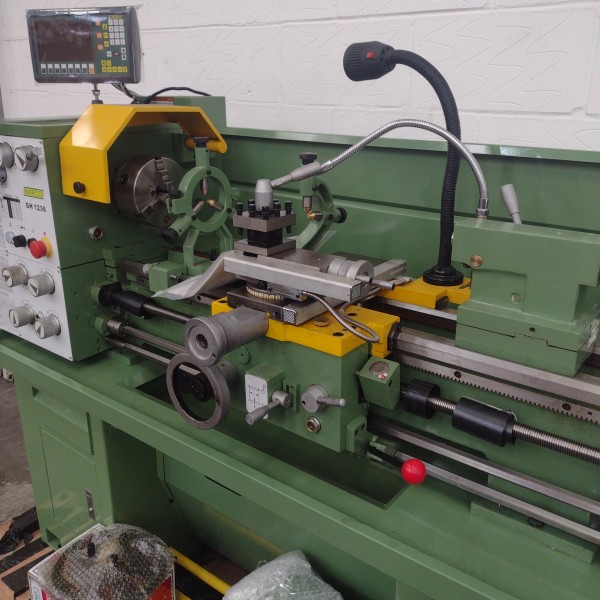

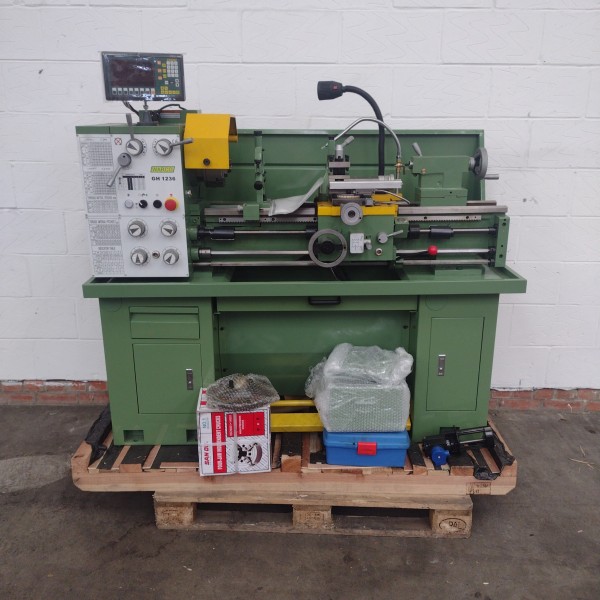

The Warco GH1236 is a gear head machine with very large capacity. A top quality metalworking lathe, unbeatable specification for the price. This lathe comes supplied with an integrated coolant system, 3 axis digital readout system, LED lighting as well as a large range of standard equipment including tool post, travelling steadies, faceplate, dead centres, chucks, cabinet stand and more.

910mm between centres. Overall length is 1690mm.

With power cross and longitudinal feeds driven by a dedicated feed shaft, which includes a safety overload clutch.

Two axis digital readout has always been a standard feature with this range of lathes, this time we have gone further by adding a glass optical scale to the top slide. It is this traverse which requires a high degree of accuracy. Now with the added scale, it is so much easier to tread the traverse movement - now it has large easy to read illuminated digits, a big improvement from having to read the small divisions on the calibrated top slide scale.

• Smaller version of this lathe also available - click here for details of the GH1230

 Features include

• Induction hardened and ground bedways
• Hardened and precision ground headstock gears
• High tensile cast iron bed
• Taper roller bearing headstock spindle
• Jogging switch
• Overload clutch to main feed shaft
• Power cross and longitudinal feeds
• Powerful 1500w motor

GH1230 illustrated

Supplied with a range of accessories and tools, including

• Digital readout system 3 axis
• Chuck 3 jaw 160mm D1-4 camlock with inside & outside jaws
• Chuck 4 jaw 200mm independent
• Face plate 250mm
• 4 way indexable tool post
• Fixed steady
• Travelling steady
• Coolant system
• Dead centres x2
• Cabinet stand
• Rear chip guard
• Micro adjustable bed stop
• Telescopic leadscrew covers
• LED light
• Tool box and maintenance tools

Full specification

The general dimensions on these pages may be subject to minor variations and should be used for guidance only.
