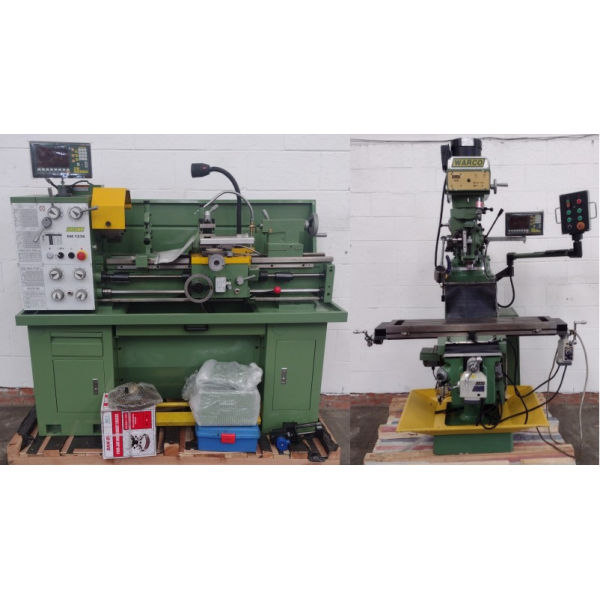

WM40 MILL GH1236 LATHE AND MILL PACKAGE. DISCOUNTED

Machinery weighing 500kg or more - delivery price varies according to size, weight and location; subject to quote.

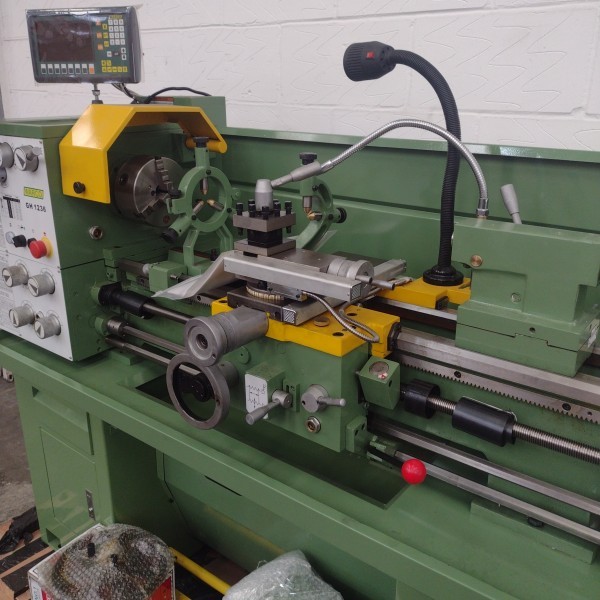

GH1236 Lathe Gear Head (New Ex Showroom)

Reference Only:

Machinery weighing 500kg or more - delivery price varies according to size, weight and location; subject to quote.

The Warco GH1236 is a gear head machine with very large capacity. A top quality metalworking lathe, unbeatable specification for the price. This lathe comes supplied with an integrated coolant system, 3 axis digital readout system, LED lighting as well as a large range of standard equipment including tool post, travelling steadies, faceplate, dead centres, chucks, cabinet stand and more.

910mm between centres. Overall length is 1690mm.

With power cross and longitudinal feeds driven by a dedicated feed shaft, which includes a safety overload clutch.

Two axis digital readout has always been a standard feature with this range of lathes, this time we have gone further by adding a glass optical scale to the top slide. It is this traverse which requires a high degree of accuracy. Now with the added scale, it is so much easier to tread the traverse movement - now it has large easy to read illuminated digits, a big improvement from having to read the small divisions on the calibrated top slide scale.

• Smaller version of this lathe also available - click here for details of the GH1230

 Features include

• Induction hardened and ground bedways
• Hardened and precision ground headstock gears
• High tensile cast iron bed
• Taper roller bearing headstock spindle
• Jogging switch
• Overload clutch to main feed shaft
• Power cross and longitudinal feeds
• Powerful 1500w motor

GH1230 illustrated

Supplied with a range of accessories and tools, including

• Digital readout system 3 axis
• Chuck 3 jaw 160mm D1-4 camlock with inside & outside jaws
• Chuck 4 jaw 200mm independent
• Face plate 250mm
• 4 way indexable tool post
• Fixed steady
• Travelling steady
• Coolant system
• Dead centres x2
• Cabinet stand
• Rear chip guard
• Micro adjustable bed stop
• Telescopic leadscrew covers
• LED light
• Tool box and maintenance tools

Full specification

The general dimensions on these pages may be subject to minor variations and should be used for guidance only.

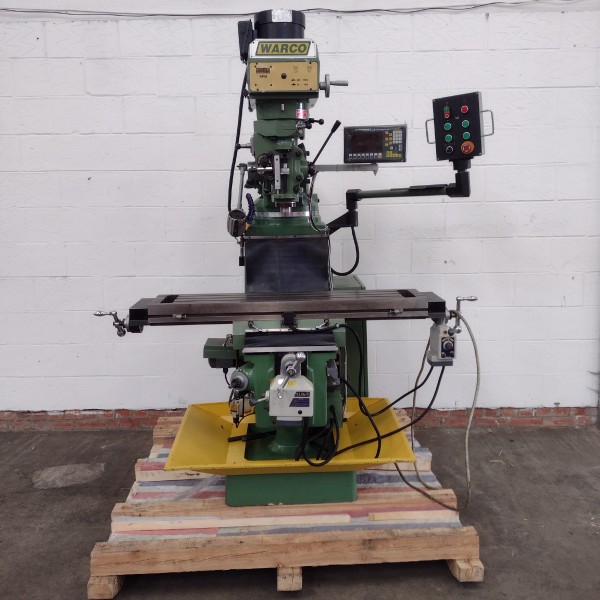

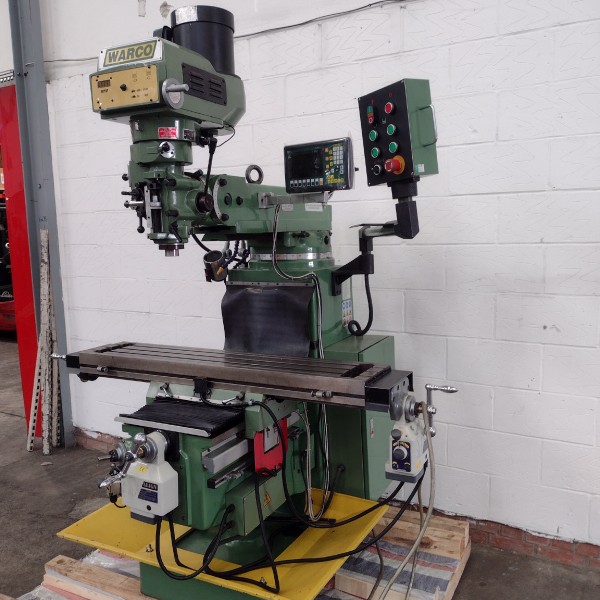

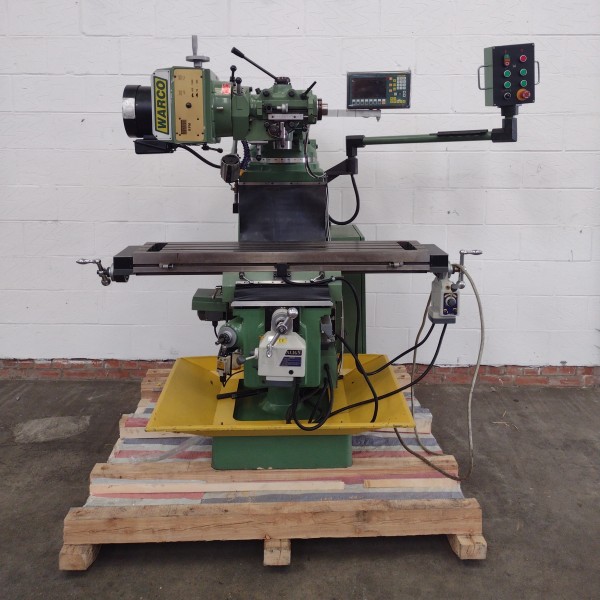

WM40 USED

Reference Only:

A toolroom quality, high precision production mill. Ideally suited to training and education environments. The WM40 Mill is fully equipped, highly capable and suited to a large range of milling applications. With top tier levels of build quality, robustness and accuracy as standard.

Features include:

• Full 2 axis Digital Readout (DRO) system incorporating PCD facility installed.
• Infinitely variable power feed to X traverse
• Powerful direct mount motor to knee elevation, driven through worm gear
• Hardened and ground table
• Square, hardened slideways to Y traverse
• Hardened dovetail slideways to X and knee traverse
• Variable spindle speeds
• Centralised lubrication system to leadscrews and slideways ensures prolonged machine life
• Halogen low voltage lighting
• High quality low voltage electrical circuit with overload protection
• Spindle brake
• Tapered gibs to X, Y and Z axes
• Locks to X, Y and Z axes
• Heavy duty knee, motorised elevation
• Interlock chuck guard.
• New! Additional power feed, x3 in total - fitted to knee, cross and longitudinal.

Standard equipment includes

• Coolant system
• Power feed to spindle, 3 feed rates
• Power feed to X traverse
• New! Power feed to Y traverse
• DRO - 2 axis system (resolution 0.005mm)
• Interlock chuck guard
• Halogen low voltage lighting
• Maintenance tools & tool box

 Buying a Warco WM40

• Highly accurate machine, capable of intensive, long term milling. Each machine is built to last.
• With full guarantee.
• Optional equipment includes interlock safety guards, usually installed for education and training establishments, and foot stop switch recommended for educational environments. These are shown above and in the first image at the top of this page.
• Supplied complete with fully fitted DRO system, tool box, maintenance tools, power feed, lighting, coolant system and operation manual.
• Comprehensive range of spare parts available, as well as just about every accessory or additional tool you'll ever need.
• We pride ourselves in our unbeatable after sales service, rest assured when buying from Warco that you're in safe hands.
• We have over four decades experience of supplying industrial milling machines to customers all over the world.
• Every milling machine we supply is fully checked and tested by a member of our qualified team, and is supplied with an individual accuracy test report.

 Specification
