Used Machines

Warco WM250 Lathe (Variable Speed) Used

    02784W

    £1,200.00 Inc. VAT

    Warco WM250 Lathe (Variable Speed) Used

    Delivery £60.00

    More details

    Note: Almost sold out!

    product description

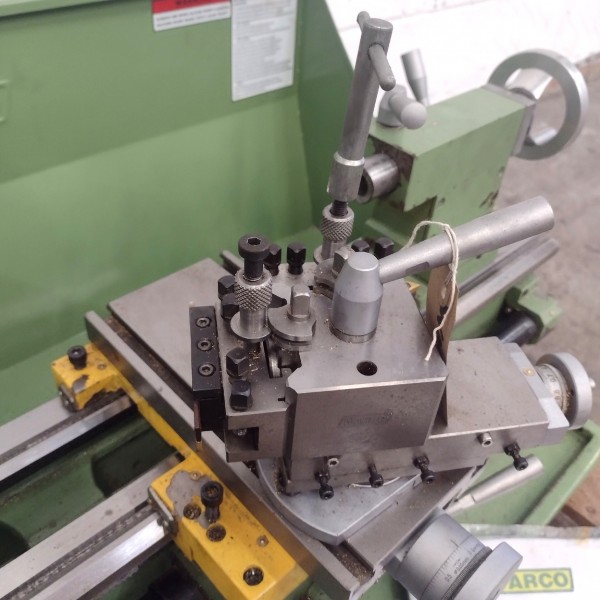

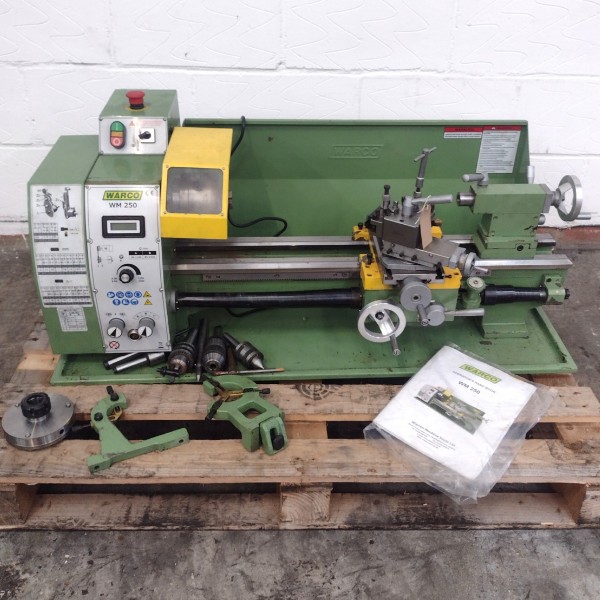

    Warco WM250 Lathe (Variable Speed) Used

    Referance Only:

    Warco WM250 Variable Speed Lathe (Brushless Motor)

    The Warco WM 250 variable speed metal lathe features exceptional Warco quality as standard. Packed with features, high power motor, very solidly built machine with high levels of precision, suitable for a wide range of metalworking tasks.

    Lathe features include

    • Two speed bands allow maximum torque in the lower speeds
    • Infinitely variable from 30 to 2,350 rpm
    • Double vee bedway - hardened and ground
    • Adjustable gibs to slideways
    • Offset facility to tailstock
    • Tailstock quill engraved metric and imperial
    • Reversible motor
    • Metric and imperial thread cutting
    • Reversible leadscrew for left hand threading
    • Thread dial indicator
    • Zero / friction dials
    • Powerful 1.1kw motor.

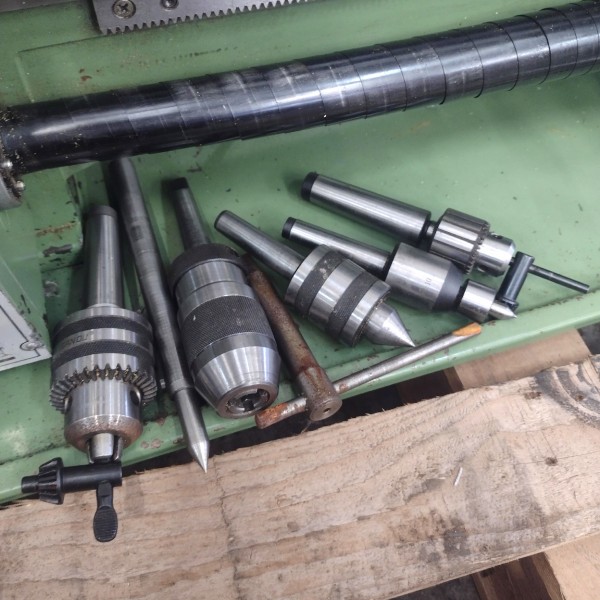

    Supplied with a range of accessories and tools, including

    • Swarf tray
    • Read splash guard
    • Three jaw 125mm self centre chuck

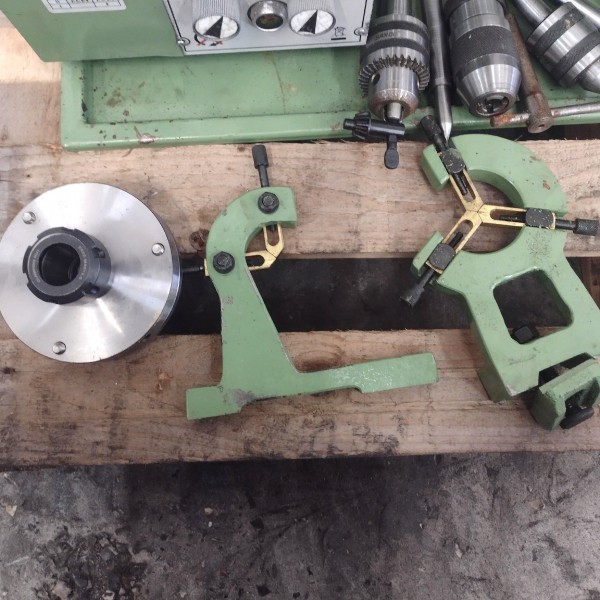

    • Fixed steady
    • Travelling steady
    • Interlock chuck guard

    Full specification

    Machine: 3211

    WM250 Brushless Motor lathe

    Product Dimensions:


    Weight125kg
    Length x Width x Height1250 x 600 x 490mm
    Tray Length x Width 1100 x 420mm
    Shipping Dimensions
    Length x Width x Height (no DRO)1250 x 570 x 570mm
    Length x Width x Height (DRO version)n/a

    Power/Motor


    Motor size1.1kw
    Power Transfer (GH) gearbox or (VS) variable speedVS
    Spindle speeds (No: and achievable speeds)30-1150 / 85-2350rpm
    Voltage (240v single) (440v 3 Phase)240v Single
    Fitment (Plug connection type)3 Pin Plug
    Current50Hz 2.0A

    Main Specifications


    Maximum swing250mm
    Centre height125mm
    Distance between centre’s535mm
    Longitudinal travel (Z)400mm
    Cross slide travel (X)110mm
    Top slide travel (fine Z)75mm
    Spindle taper MT4
    Tailstock TaperMT2
    Tailstock quill travel60mm
    Spindle Bore26mm
    Tool shank size recommended for C/L12mm
    Metric and imperial threadsYes
    Chuck mountFlange
    Spindle Bearings  /DriveTaper roller bearings

    Other Specifications


    Country of originChina
    Warranty12 Months
    Approximated assembly and setup time30 mins
    CE approved CertificateYes, available upon request

    Additional products


    Optional stand3212ND
    Optional Digital Read Out Kit8123
    X scale5104 - 150mm
    Z Scale5111 - 500mm
    Chuck mount sizesA= 53.5 Taper  B=102  C=74.5   D=11mm
    Base/tray fixing holes dimensions A-B-C-DA= 120 B= 765 C=210  D=115 mm

    accessories
