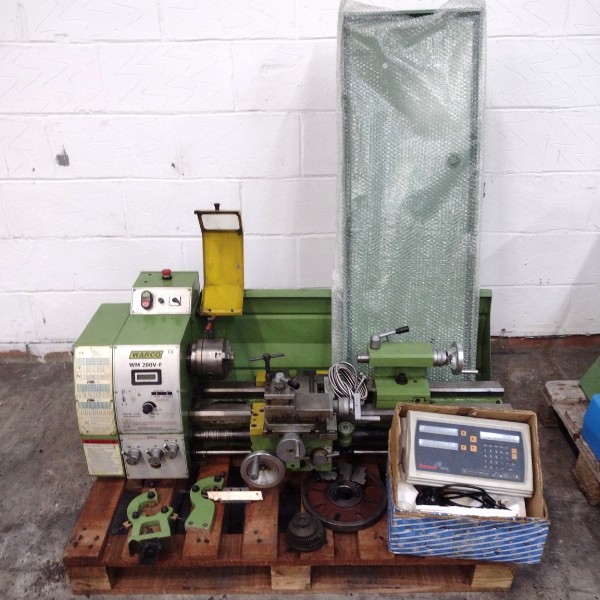

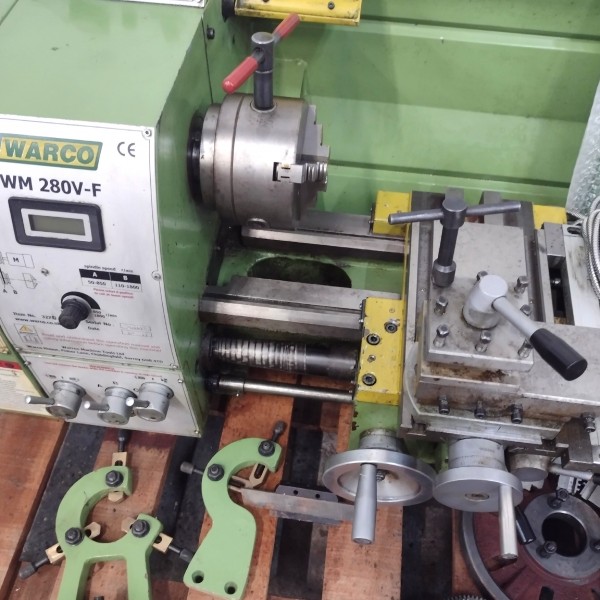

WM280V-F Lathe with Stand (used)
02787W
£1,400.00 Inc. VAT
WM280V-F Lathe with Stand (used)
£60.00 Delivery
Note: Almost sold out!
product description
WM280V-F Lathe with Stand (used)
Referance Only
Features include
- Dedicated feed shaft for longitudinal and cross feed
- Separate leadscrew for thread cutting functions
- Wide, double vee bedway - which is hardened and ground for maximum durability
- Extremely quiet and vibration free operation
- Adjustable gibs to slideways
- Offset facility to tailstock
- Large cross slide with two full length tee slots
- Tailstock quill engraved metric and imperial
- Metric and imperial thread cutting
- Reversible leadscrew for left hand threading
- Power cross feed system
- Low 30 rpm speed at the low range, ideally suited to thread cutting
- Dependable Delta inverter drive with AC induction motor
- Overload clutch to feed shaft
Supplied with a large range of tools and accessories, including
- Swarf tray
- Rear splash guard
- Face plate
- Three jaw 125mm self centre chuck with inside and outside jaws
- Four jaw 125mm independent chuck
- Interlock chuck guard
- Fixed steady
- Travelling steady
- Two dead centres
- Compound slide
- Thread dial indicator
- Toolbox with tools
Full specification
Machine: 1032 | WM280V |
Product Dimensions: | |
| Weight | 220kg |
| Length x Width x Height | 1380 x 675 x 520mm |
| Tray Length x Width | 1270 x 420mm |
Shipping Dimensions | |
| Length x Width x Height (no DRO) | 1410 x 705 x 635mm |
| Length x Width x Height (DRO version) | 1410 x 705 x 635mm |
Power/Motor | |
| Motor size | 1.5kw |
| Power Transfer (GH) gearbox or (VS) variable speed | VS |

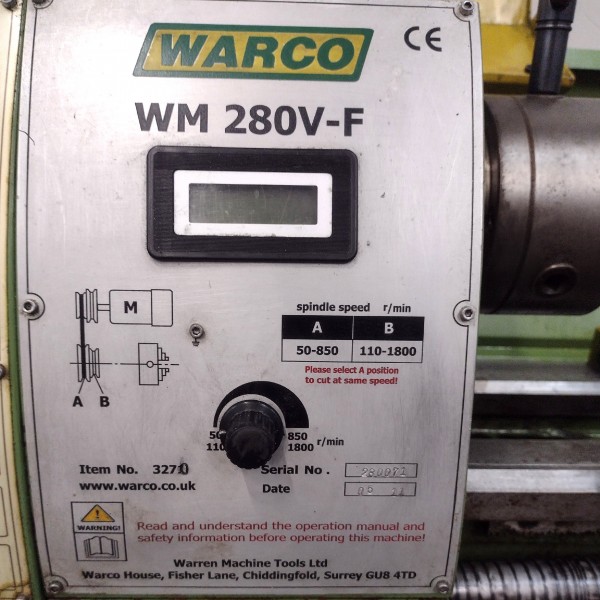

| Spindle speeds (No: and achievable speeds) | (2) 30-450 / 150-2500rpm |
| Voltage (240v single) (440v 3 Phase) | 240v Single |
| Fitment (Plug connection type) | 3 Pin Plug |
| Current | 50Hz 6.4A |
Main Specifications | |
| Maximum swing | 280mm |
| Centre height | 140mm |
| Distance between centre’s | 680mm |
| Longitudinal travel (Z) | 440mm |
| Cross slide travel (X) | 170mm |
| Top slide travel (fine Z) | 70mm |
| Spindle taper | MT4 |
| Tailstock Taper | MT2 |
| Tailstock quill travel | 85mm |
| Spindle Bore | 26mm |
| Tool shank size recommended for C/L | 12mm |
| Metric and imperial threads | Yes |
| Chuck mount | Flange |
| Spindle Bearings /Drive | Taper roller bearings |
Other Specifications | |
| Country of origin | China |
| Warranty | 12 Months |
| Approximated assembly and setup time | 30 mins |
| CE approved Certificate | Yes, available upon request |
Additional products | |

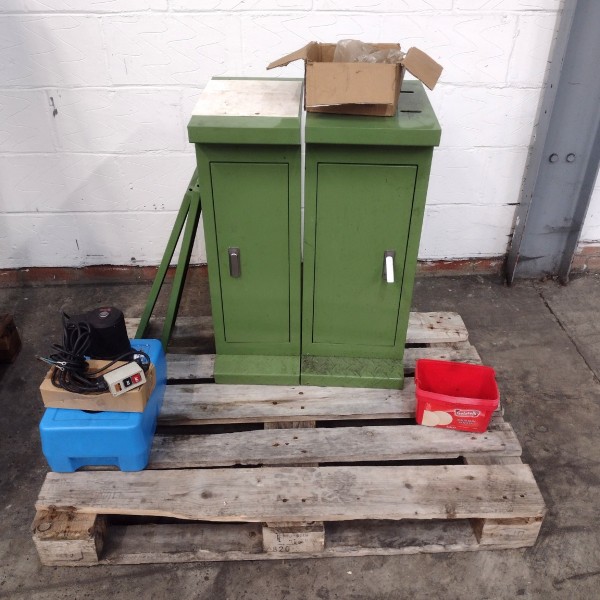

| Optional stand | 3214DL |

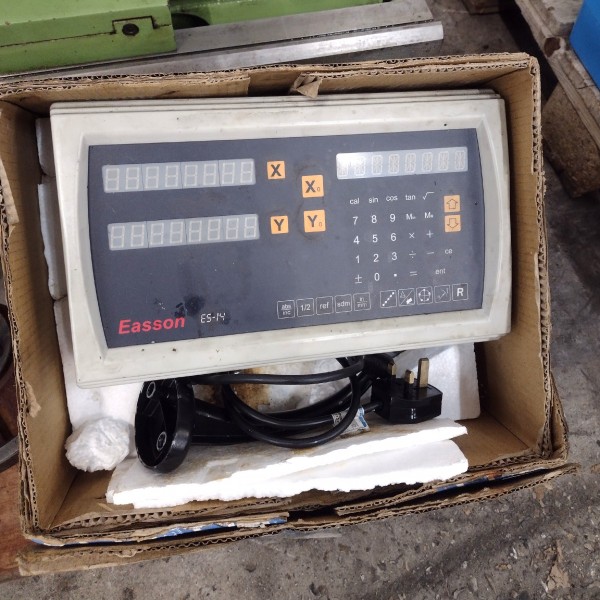

| Optional Digital Read Out Kit | 8123 |
| X scale | 5105 - 200mm |
| Z Scale | 5110 - 450mm |
| Chuck mount sizes | A= 52 Taper B=102 C=74.5 D=11mm |
| Base/tray fixing holes dimensions A-B-C-D | A= 157 B= 210 C=830 D=76 mm |
