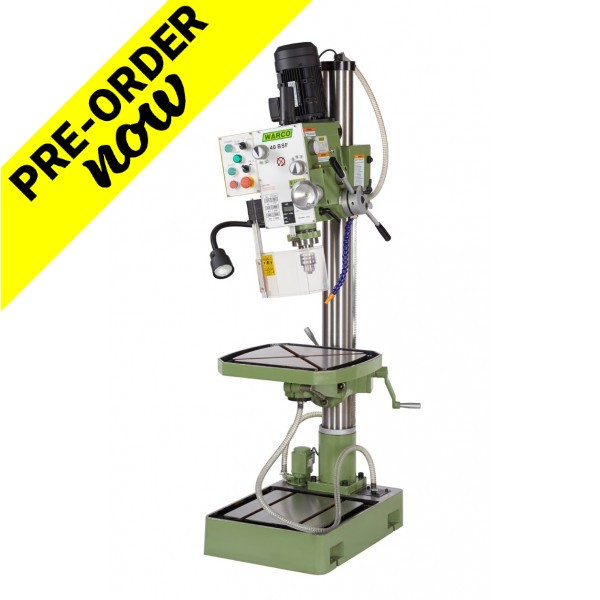

40 BSF Drilling Machine Pillar Drill
This product is currently awaiting new stock, but is available for pre-order by calling us on 01428 682929.
£3,465.00 Inc. VAT
- Highly accurate, heavy-duty pillar drill
- 4MT hardened spindle
- Exceptionally quiet gearbox
- Excellent Spare-Parts Availability
- 12-Month Warranty
- Fast & FREE DELIVERY to UK mainland
- Questions & Support on Tel: 01428 682929
product description
Heavy duty industrial quality 40 BSF drilling machine.
- With 4MT hardened spindle.
- Exceptionally quiet gearbox.
- Head rotates 360° in vertical plane
- Head tilts 45°- 0° - 45°
Features include
- Powered spindle feed with depth setting and auto return.
- Interlock chuck guard
- Coolant system (capacity 8 litres)
- Halogen low voltage lighting
- Tapping feature
Available in either single or three phase:
- 1 phase 240v (Item No. 1023A)
- 3 phase 440v (Item No. 1023)
Full Specification
40BSF FLOOR DRILL(Product codes: 1023/1023A) | |
Product Dimensions: | |
| Weight | 350kg |
| Width x Depth x Height | 600 x 807 x 2038mm |
| Base Width x depth | 470 x 667mm |
Shipping Dimensions | |
| Length x Width x Height | 725 x 755 x 1930mm |
| Package Type (Pallet or box) | PALLET |
Power/Motor | |
| Motor size | 1.5KW |
| Drive (GH) gearbox (VS) variable speed or (B) Belt | GH |
| Voltage (240v single) (440v 3 Phase) | 240v Single or 440v 3 phase |
| Fitment (Plug connection type) | 3 pin plug or 4 wire |
| Spindle Bearing type | Radial ball Bearing |
| Spindle speeds (No: and achievable speeds) | 6 Speed 75,170, 280, 540, 960, 1600 RPM |
Main Specifications | |
| Type (Bench top or floor) | Floor |
| Table size (Length x Width x Thickness) | 500 x 460 x 45mm |
| Table Travel Vertical | 665mm |
| Maximum size spindle to Table | 775mm |
| Maximum size spindle to Base | 1220mm |
| Throat (Spindle middle to Column face) | 300mm |
| Column diameter | 115mm |
| Spindle Taper size | 4MT M14 thread |
| Head tilt left to right | 45°- 0° - 45° |
| Table tilt | 60°- 0° - 60° |
| Drill chuck capacity and recommended max drill | 13mm & 40mm |
| Quill diameter | 75mm |
| Quill/Spindle stroke | 120mm |
| Features | |
| Laser centre? | N |
| Work light? | Y |
| Digital speed counter? | N |
| Depth stop? | Y |
| Safety interlock guard? | Y |
Other Specifications | |
| Country of origin | China |
| Warranty | 12 Months |
| Approximated assembly and setup time | 30 mins |
| CE approved Certificate | CE CERT NO.3 |
| Tee slot size and no of slots (A-B-C-D) no: of slots | A=14 B=25 C=13 D=11mm 4 slots |
