3052
£438.90 Inc. VAT
Note: Almost sold out!
Availability date:

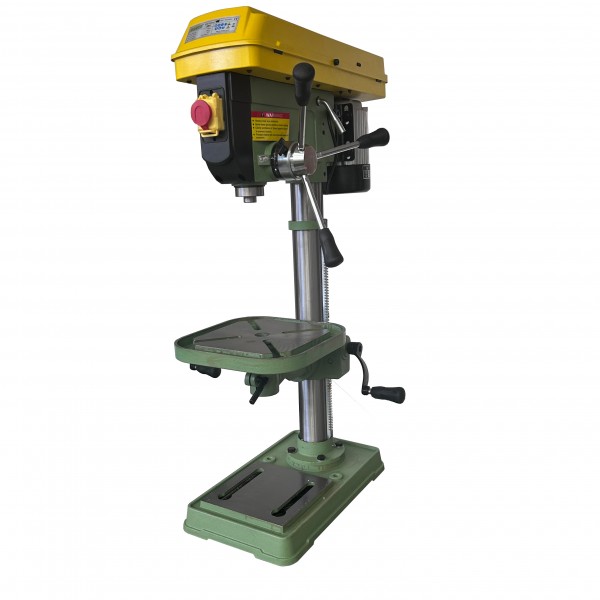

Very high quality, robust and durable bench mounted drilling machine.
2B5(Product Code: 3052) | |
Product Dimensions: | |
Weight | 55kg |
Width x Depth x Height | 380 x 630 x 980mm |
Base Width x depth | 270 x 460mm |
Shipping Dimensions | |
Length x Width x Height | 820 x 500 x 290mm |
Package Type (Pallet or box) | Box |
Power/Motor | |
Motor size | 550W |
Drive (GH) gearbox (VS) variable speed or (B) Belt | Belt |
Voltage (240v single) (440v 3 Phase) | 240v Single |
Fitment (Plug connection type) | 3 pin plug |
Spindle Bearing type | Sealed Roller Bearing |
Spindle speeds (No: and achievable speeds) | 16 speed 220-2840 |
Main Specifications | |
Type (Bench top or floor) | Bench Top |
Table size (Length x Width x Thickness) | 285 x 285 x 30mm |
Table Travel Vertical | 355mm |
Maximum size spindle to Table | 380mm |
Maximum size spindle to Base | 600mm |
Throat (Spindle middle to Column face) | 180mm |
Column diameter | 72mm |
Spindle Taper size | 2MT |
Head tilt left to right | n/a |
Table tilt | 90-90° (45-45° calibrated) |
Drill chuck capacity and recommended max drill | 16mm max |
Quill diameter | 47mm |
Quill/Spindle stroke | 85mm |
Features | |
Laser centre? | X |
Work light? | x |
Digital speed counter? | X |
Depth stop? | x |
Safety interlock guard? | X |
Other Specifications | |
Country of origin | China |
Warranty | 12 Months |
Approximated assembly and setup time | 30 mins |
CE approved Certificate | CERT-20210823 TA 385213770(1) |
Tee slot size and no of slots (A-B-C-D) no: of slots | A=16 B=26 C=9 D=12m 4 slots |
