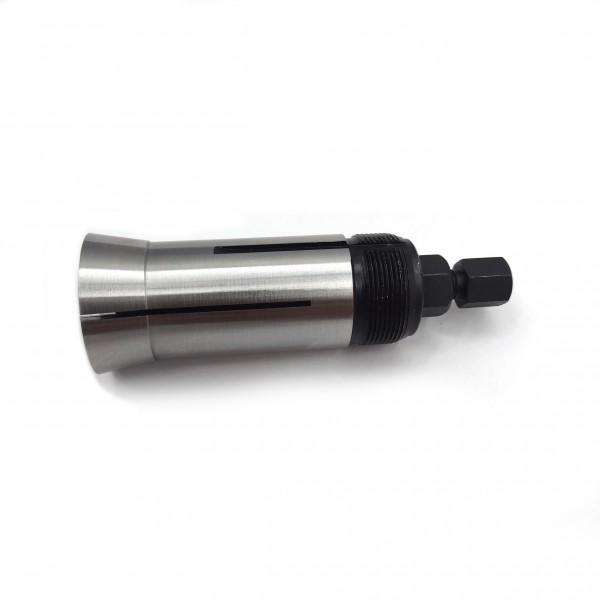

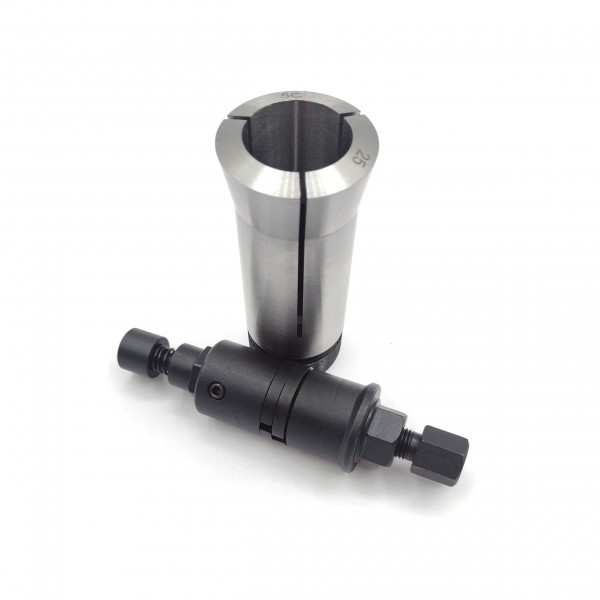

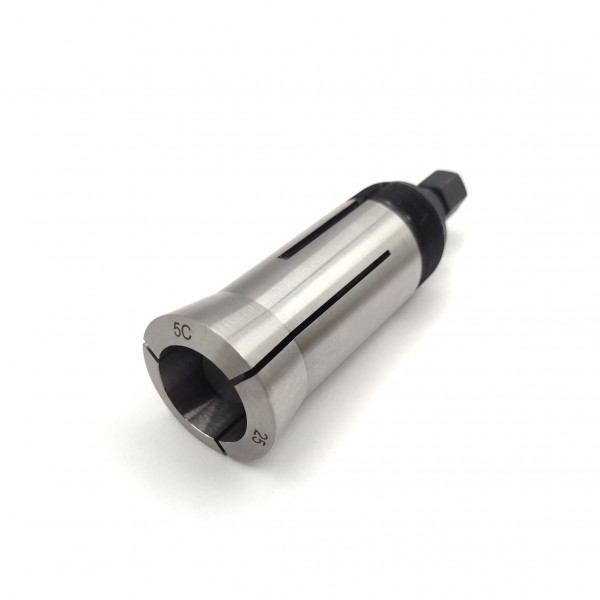

5C Universal Collet - adjustable backstop

5C Universal Collet - adjustable backstop

This adjustable backstop will fit any unthreaded 5C Collets. This item is ideal for anyone wanting to do repeat precision work in one of our 5C precision collet chucks .

Operation:

The rear hex head bolt operates 6 small pins forcing 2 split rings to lock onto the internal bore of the collet. Do not completely unscrew this bolt as the pins will fall out.

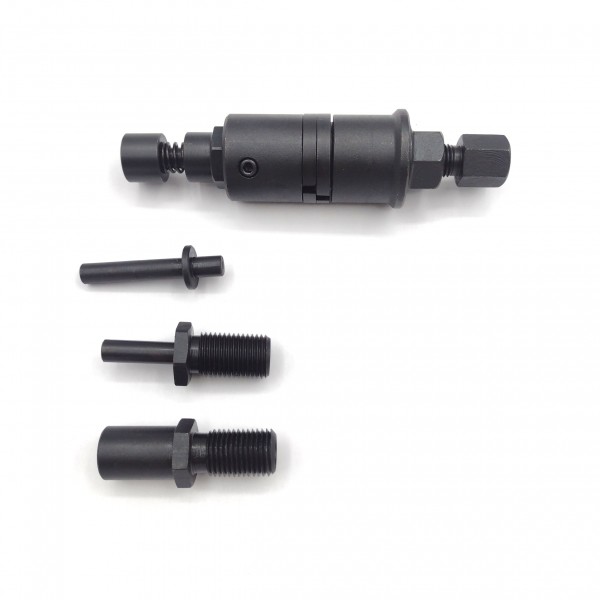

Supplied with 2x fixed and 2x adjustable spring loaded stops ranging from 0 to 1".
