MC029X Metalcraft Mk 2/3 Scroll Former plus Tube Bending Components

Mk 2/3 Scroll Former plus Tube Bending Components

Code MC029X

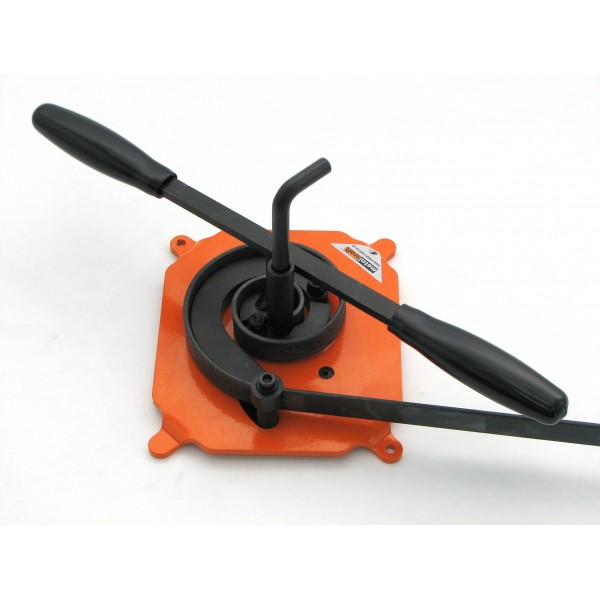

This version of our Mk2 3 scroll maker has all the same scrolling capability as our MC029 Mk2/3 Scroll Forming tool but is also supplied with a couple of special tube bending components as an optional extra.

As well as a special pressure guide roller, there is a larger tube former which when fitted to the machine converts your wrought iron scroll bender into a fixed radius tube bender. This larger tube former is cleverly designed to fit underneath and be driven by the scrollers handle capstan and centre segment.

Check out the video clip on this page to see how this increases the versatility of your Mk2/3 scroll former for a very small additional cost.

Dimensions: 150mm W x 230mm D x 120mm H x 210mm Handle radius

Max Working Capacity

20mm x 3mm (scrolls)

Max Scroll Size

127mm

Tube Bending Capacity

Max Tube dimensions 10mm Outer Dia with recommended wall thickness 1.2mm

Inner Diameter of tube former bend is 49.7mm

Please note: The maximum working capacity is for Hot Rolled Mild Steel Bar and Annealed Bright Mild Steel Bar.  Working beyond these limits or with material of greater hardness may reduce the operational life of the machines
