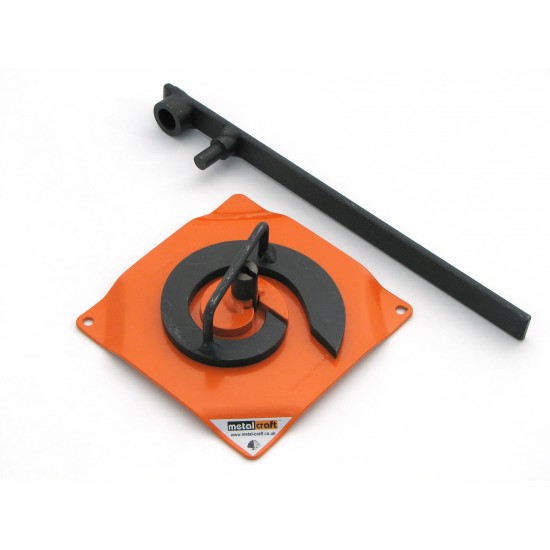

MC019 Metalcraft Mk 2/2 (H) Scroll Former

Mk 2/2(H) Scroll Former

Code MC019

The Mk 2/2H Scrolling Tool is a bigger version of our entry level MC017 Mk 1/2 scroll bender. It produces bigger scrolls up to 127mm across and can work with all sizes of steel up to 20mm x 3mm. Again, this works as a hand drawn scroll bender jig, where the end of the steel bar is gripped in the centre and pulled round the inner segment by hand. Larger scrolls are made by dropping in place the larger outer segment.

The tool is also supplied with a special starting lever as and aid to help form the initial part of a scroll when using bigger steel sizes. It produces flat and consistent wrought iron effect scrolls.

Dimensions:  150mm W x 150mm D x 45mm H

Max working Capacity*

20mm x 3mm

Max scroll size*

5" (127mm)

Please note: The maximum working capacity is for Hot Rolled Mild Steel Bar and Annealed Bright Mild Steel Bar.  Working beyond these limits or with material of greater hardness may reduce the operational life of the machines
