Tips Set - For Indexable Lathe Tools 9 Piece 16mm - 9117B Tip set x 5

Tips for Indexable Lathe Tools - 9 Piece 16mm

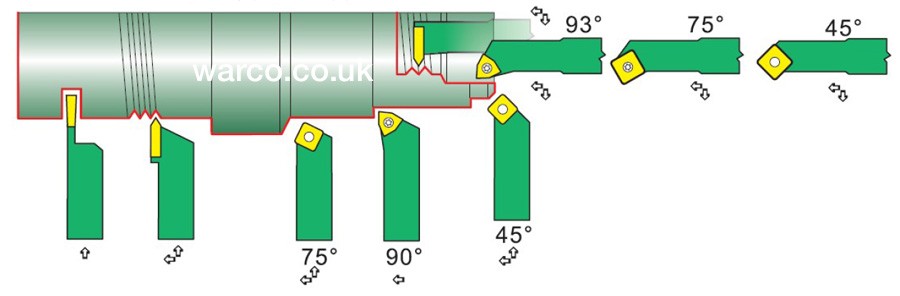

Full sets of indexable lathe tool tips.

• For our 9 piece indexable lathe tools in 16mm size.

• Tip sets include 8 pieces, one for each tool.

• Ideal as spares or to replace worn out tips.

• TIN (carbide titanium nitride) coated for super long lasting use.

Notes for tip type

• Two different types of tips are available for 16mm 9 piece tools, both current spec and previous version

• Suitable tips for the sets currently sold are the default option above - so if you're buying tools today you can go ahead with those.

Need tips for an older set of tools, or not sure which type you require? More details below

• 9117 set (new type, as shown here) - compatible tips are Item No. 9117A

• 9117A tips x 10 : 16ERAG60 (x2), MGEHR1616H03 (MGMN300), SCMT09T304 (x4), WCMT06T304 (x2)

• 9117B tips x 5 : 16ERAG60 (x2), MGEHR1616H03 (MGMN300), SCMT09T304, WCMT06T304

If you don't have an item number for your tools and need help identifying type you have:

• 9117 new type tools - are supplied in a metal case (all 2017+ purchases).

Types available

Tool size	To fit set (Item No.)	Tool set came in	Date set bought	Tip set (Item No.)
16mm	9117	Metal packaging	2017 onwards	9117A : 16ERAG60 (x2), MGEHR1616H03 (MGMN300), SCMT09T304 (x4), WCMT06T304 (x2)

You can select the type required from the drop down menu above.

Other tips available to fit the current (9117) 16mm 9 piece tools

• Replacement parting off tips

• REPLACEMENT THREADING TIPS

• Replacement tip SCMT09T304 X 5

• Replacement Tip WCMT06T304
