Guillotine 52" - Treadle Foot Shear

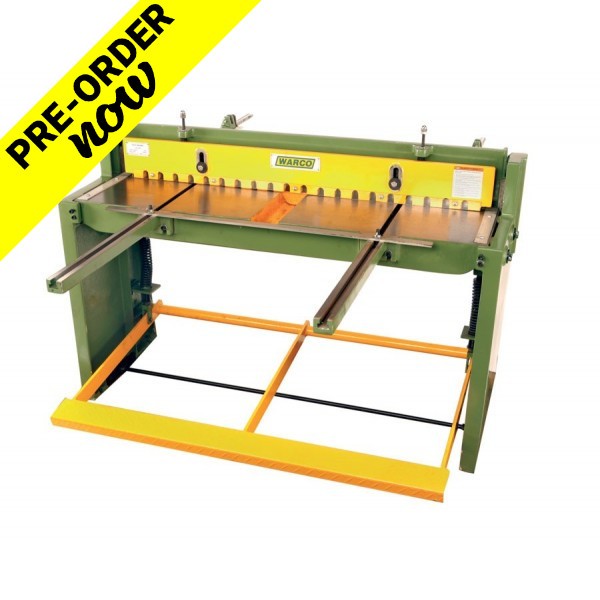

Warco Guillotine 52" Treadle Shear

Machinery weighing 500kg or more - delivery price varies according to size, weight and location; subject to quote.

Sheet Metal Machine

Large scale guillotine for sheet metal work, this foot shear is highly robust, well engineered and truly built to last.

• Treadle operated.
• With adjustable back gauge.
• Heavy cast iron construction throughout.
• Font stops and plate support arms.
• Back stop with micro adjustment 889mm.

Mild steel gauge      1.5mm
Aluminum                2.5mm
Soft brass yellow     1.8mm
1/2hard brass yellow 1.6mm
Hard brass yellow    1.6mm
Annealed bronze phosphor 1.6mm
Soft copper             1.8mm

Dimensions (without back stops and front support arms)

• Length - 1575mm
• Width - 965mm
• Height - 1076mm
• Weight - 562kg (will need delivery quote)
