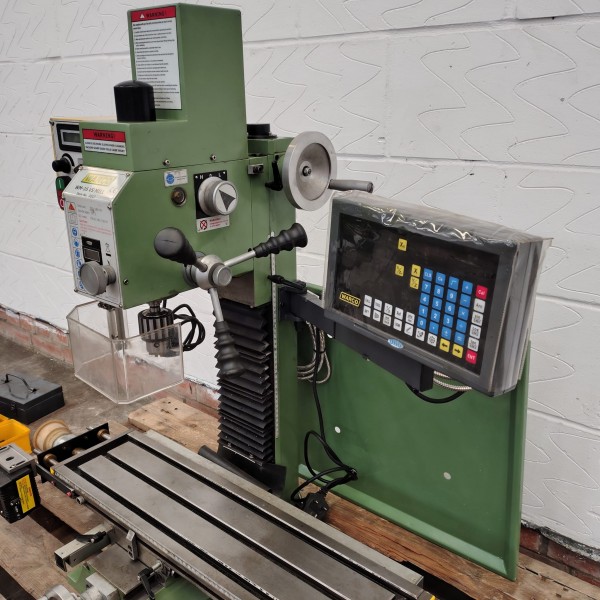

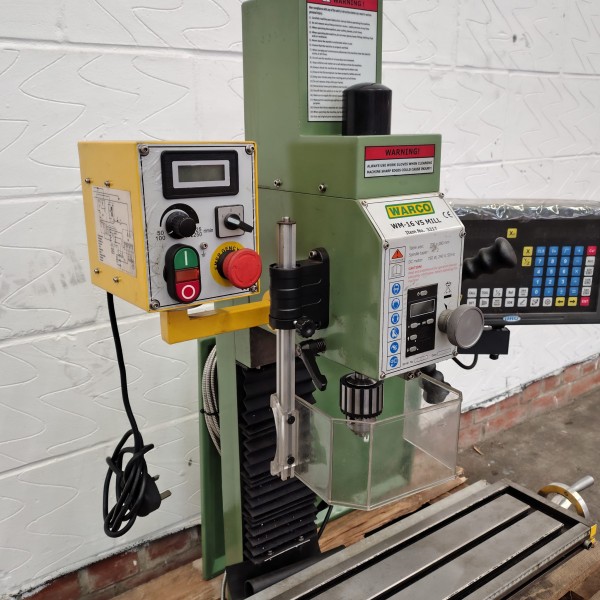

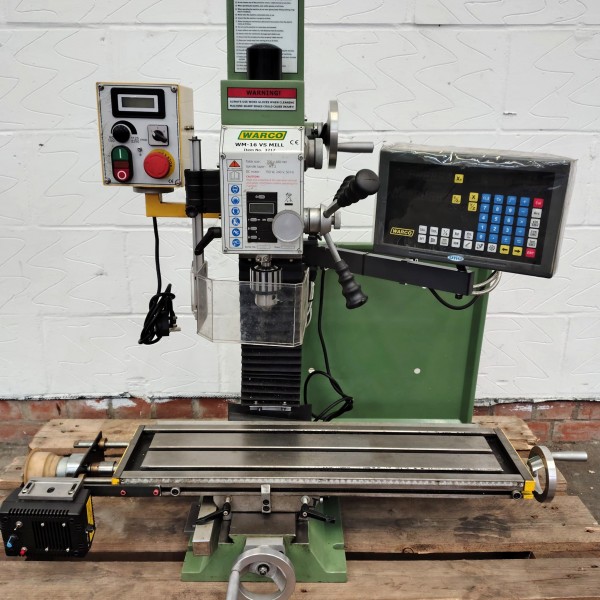

WM16 Milling Machine MT2 with 2 axis DRO and accesories (used)
02826W
£1,500.00 Inc. VAT
WM16 Milling Machine MT2 with 2 axis DRO and accesories (used)
Delivery £60
Note: Almost sold out!
product description
WM16 Milling Machine MT2 with 2 axis DRO and accesories (used):

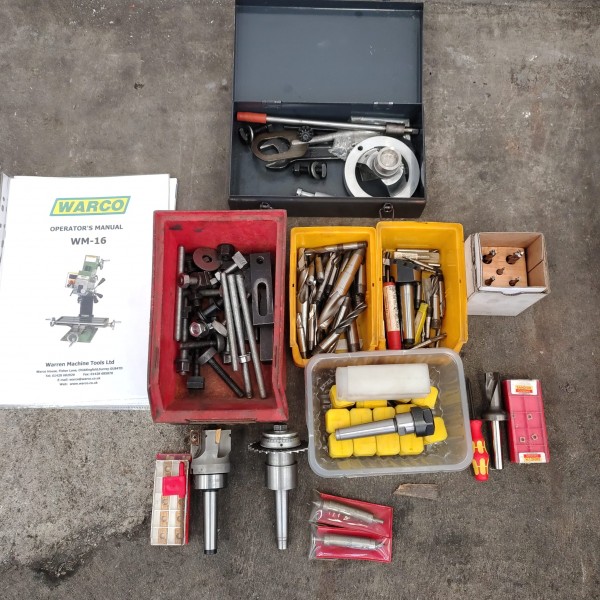

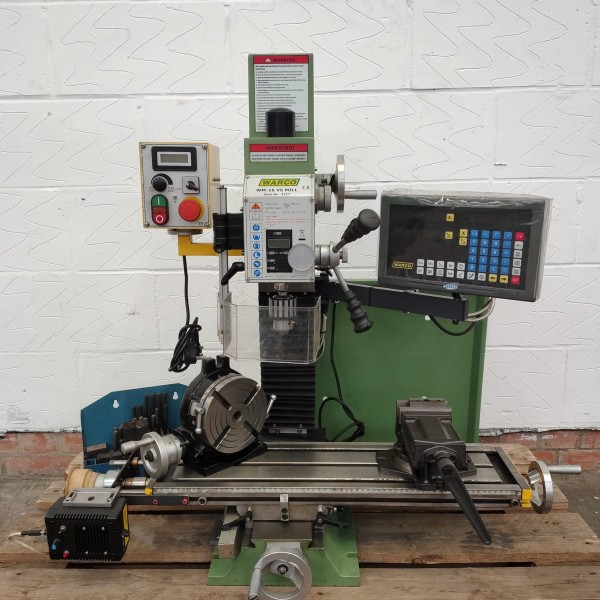

All accessories pictured are encluded.
- 6" Rotary Table
- 100mm milling vice
- clamping kit
- a varied selection of end mills
- ER20 Collet chuck and collets
- fly cutter
- face mill
reference only

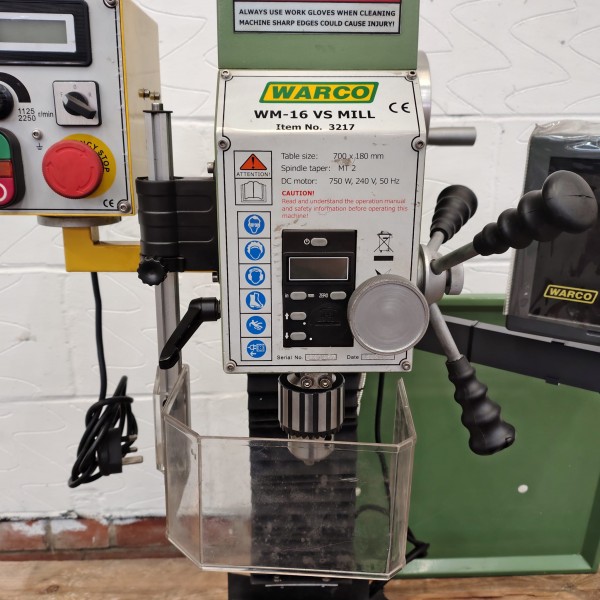

The WM 16 is a very well engineered machine, with variable speed and top quality throughout.
Very popular medium sized milling machine, offering many of the features of larger, more expensive machines at an affordable price.
WM16 features include
- Infinitely variable from 50 - 3000 rpm
- Dovetail column ensures positive head location
- Precision spindle supported on taper roller bearings
- Adjustable gibs to slideways
- Reversible motor
- Head tilts plus or minus 90°
- Rack and pinion drill feed plus fine feed for extremely accurate machining
- Locks to head, column and slideways
Full Specification
Machine: 3217 | WM16 Mill |
Product Dimensions: | |
| Weight | 150KG |
| Length x Width x Height | 1030 X 600 X 955mm |
| Tray Length x Depth | 525 x 480 |
| Shipping Dimensions | |
| Length x Width x Height | 705 x 705 x 890mm |
Power/Motor | |
| Motor size | 600W |
| Power Transfer (GH) gearbox or (VS) variable speed | VS |
| Voltage (240v single) (440v 3 Phase) | 240V |
| Fitment (Plug connection type) | 3 Pin Plug |
| Current | 50hz 3.9A |
| Spindle speeds (No: and achievable speeds) | 50-1500 / 100-3000rpm |
Main Specifications | |
| Table size | 700 x 180mm |
| Longitudinal travel (X) | 500mm |
| Cross Table travel (Y) | 183mm |
| Head Travel or Knee (Z) | 255mm |
| Quill/Spindle stroke | 50mm |
| Distance spindle to table | 300mm |
| Throat (Spindle middle to Column) | 160mm |
| Table height from base | 185mm |
| Spindle Taper size and thread | MT2 |
| Head tilt left to right and Head tilt front to back | 90-90 (45-45 calibrated) |
| Drilling capacity | 16mm |
| Milling capacity | 20mm |
| Spindle Bearing type | Taper Roller |
Other Specifications | |
| Country of origin | China |
| Warranty | 12 Months |
| Approximated assembly and setup time | 30 mins |
| CE approved Certificate | CE CERT No.6 07/02/23 |
Additional products | |
| Optional stand | 3207DL |

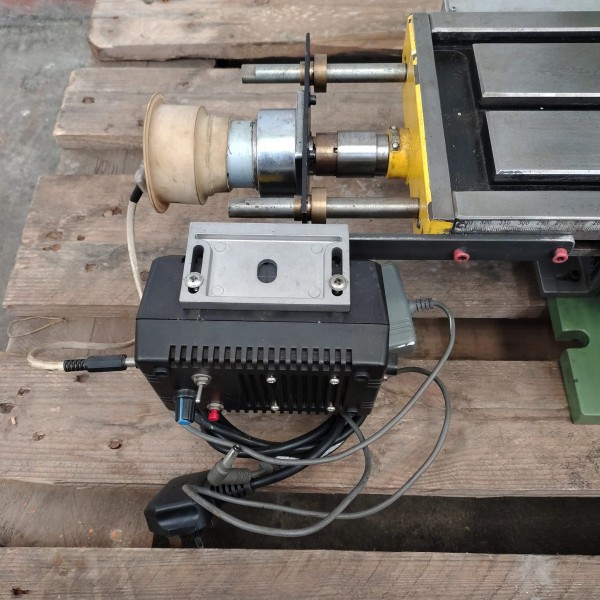

| Optional power feed | 3205.16 |
| Optional Digital Read Out Kit | 8123 dro |
| X axis scale (left to right) | 500mm |
| Y axis scale (forward to back) | 200mm |
| Z axis scale (head) | 300mm |
| Tee Nut size and no of slots | AA=12 B=17.5 C=6.5 D=7.5mm (3 SLOTS) 9523 M10 |
| Machine/Stand Hole positions | A=220 B=250 C=100 D=140mm |
Order a WM 16 securely online, or call us on 01428 682929.
6 Months warranty (powerfeed not covered by this warranty)
