Boring Head Set 38mm - 3MT

    £51.00 Inc. VAT

    £73.50 Inc. VAT

    product description

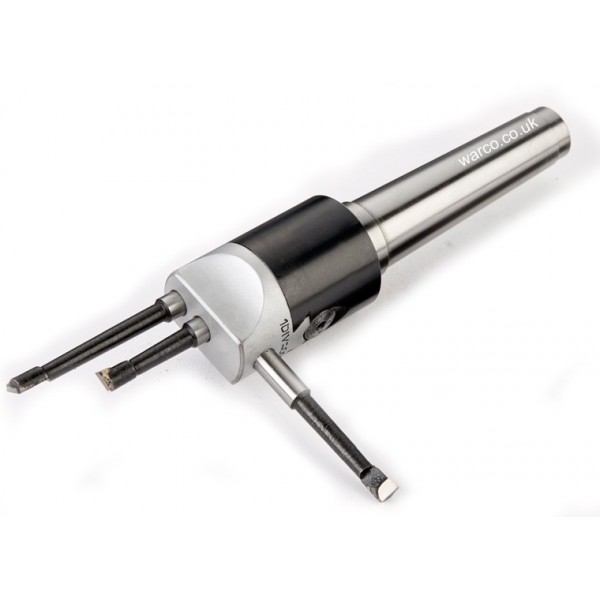

    Milling Boring Head Set 3MT

    Diameter 38mm (1.5")

    High precision milling machine boring head.

    Very well engineered and durable set.

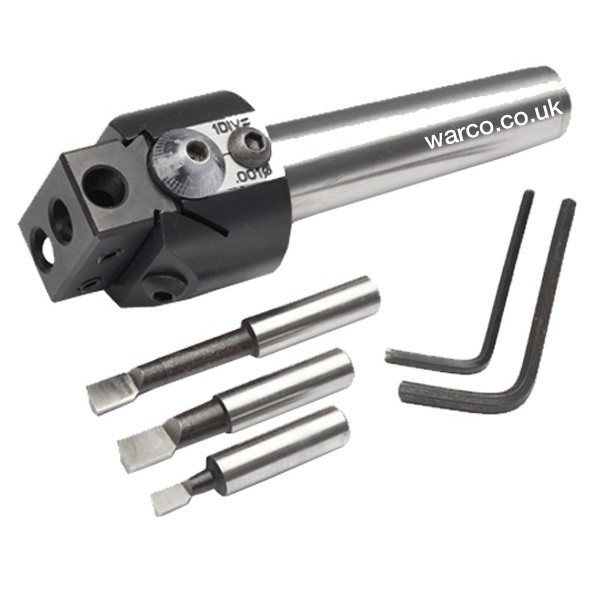

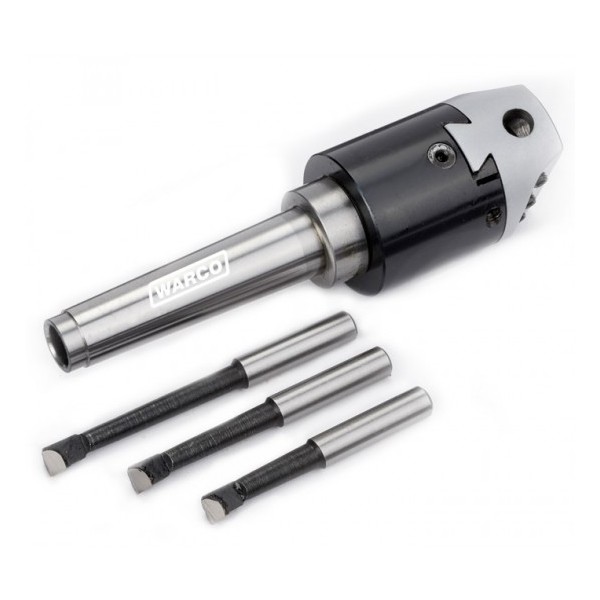

    Supplied with set of 3 carbide brazed boring bars in 8mm size.

    Specification

    • Head diameter - 38mm
    • Capacity with vertical tool - 0-38mm
    • Maximum boring diameter excluding tool - 60mm
    • Accepts tooling diameter - 8mm
    • Two vertical boring bar positions - centre and off set for maximum bore diameter.
    • Two horizontal boring bar positions.
    • Graduations - 0.001"
    • Shank size - 3MT (3 morse taper).
    • Available with metric or imperial thread.

    3MT thread types available

    • Tapped 12mm for drawbar  (Item No. 8961 MT3M)
    • Tapped 3/8" Whitworth for drawbar  (Item No. 8961 3MT)

    Other sizes available

    Price includes VAT and delivery.
