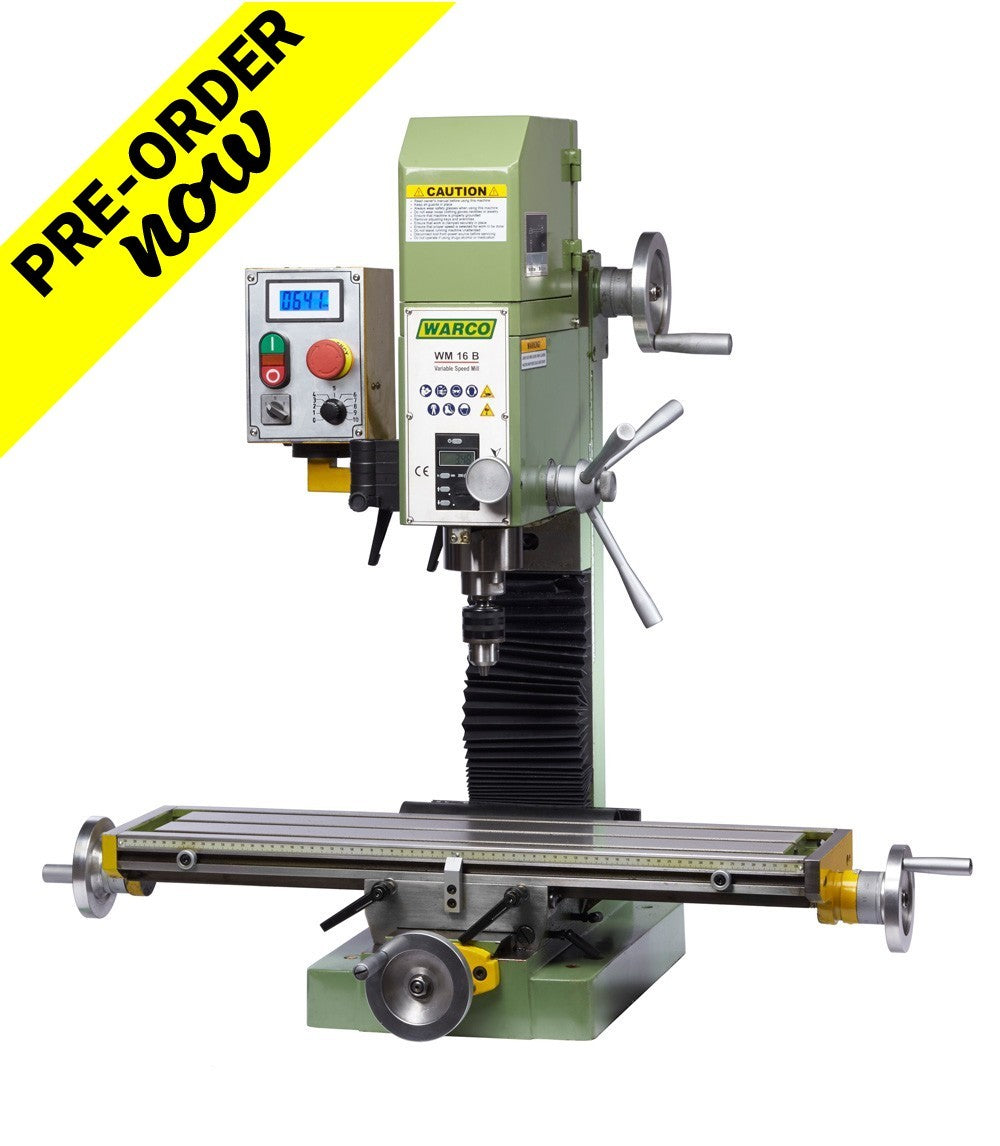

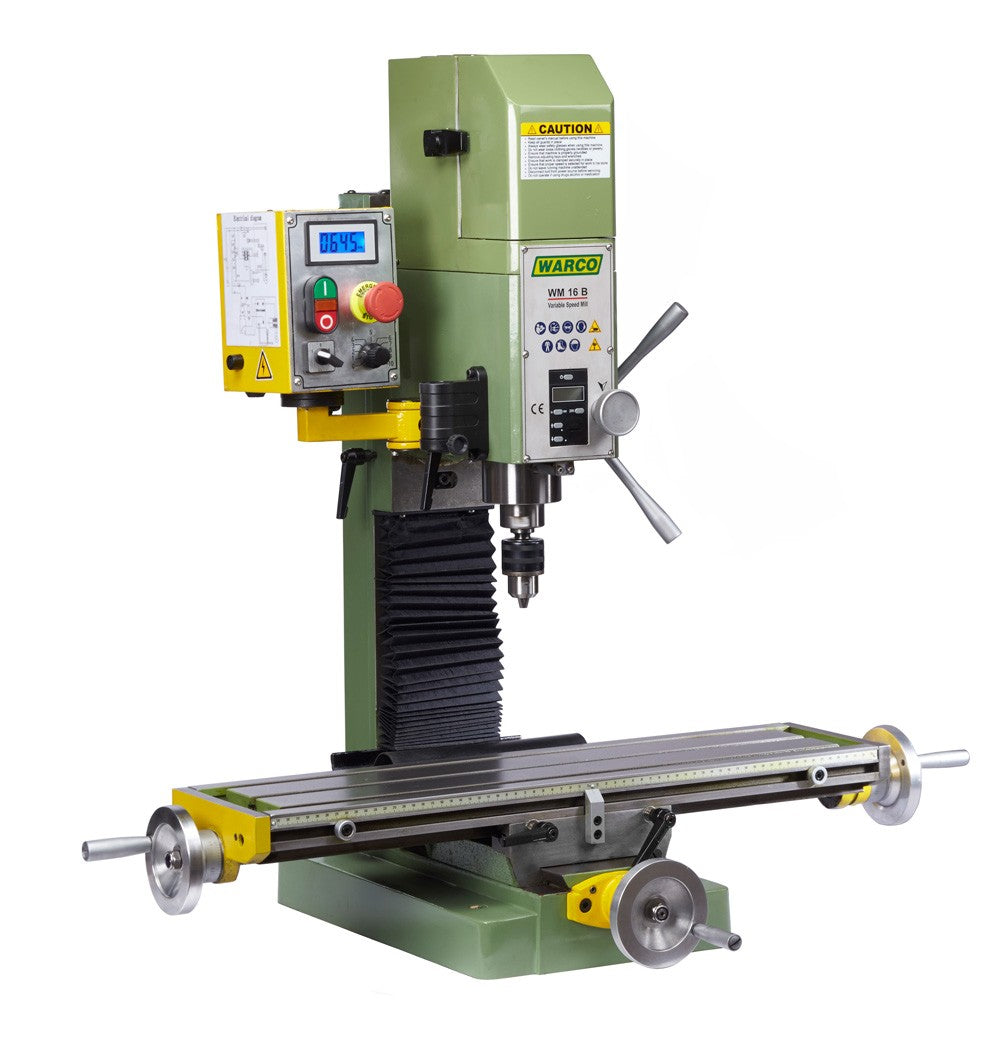

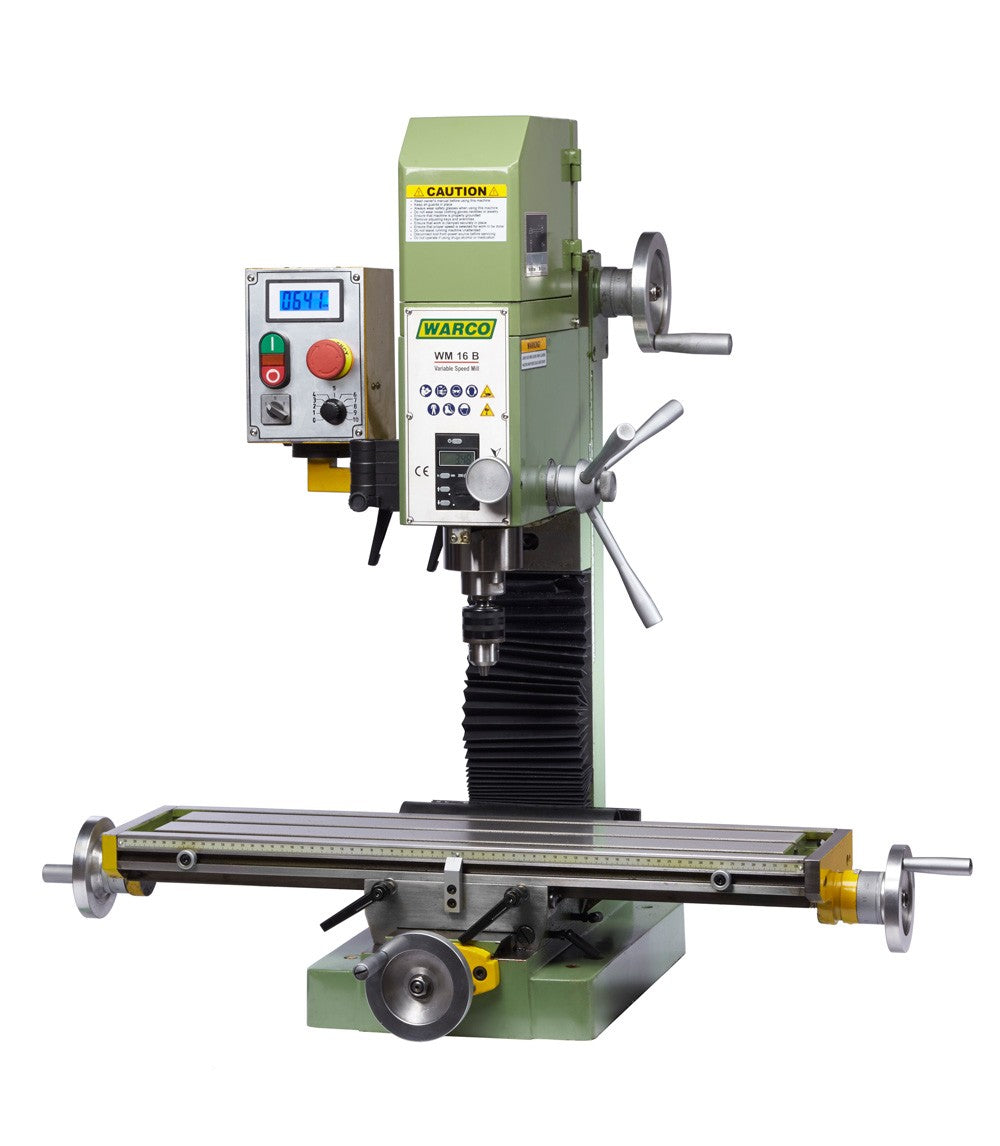

WM16B Belt Drive Mill with DRO - 3MT

With traditional belt drive system, this machine has all the updated benefits of the dovetail column associated with gear headstock mills.

Poly vee belt drive for positive, smooth and quiet vibration free operation.

Features include:

• Variable speed
• Rack and pinion drilling action
• Head elevates on two dovetail slideways
• Rigid square column
• Forward and reverse spindle rotation
• Friction fine feed with digital metric / imperial depth gauge
• Adjustable gibs to all axes
• Table locks to X and Y axes
• Head tilts 90º in both directions
• Digital rev. counter with large easy to read digits
• Powerful brushless motor
• Two belt settings for maximum torque in the low speed range

Includes the following FREE accessories:

• Drawbars 12mm & 3/8"
• Drill chuck 13mm
• Arbor for drill chuck
• Tool box and maintenance tools

Specification:

	WM16B (Product Code: 3207DRO)
Drill chuck capacity	13mm
Maximum drilling capacity	25mm
Maximum end milling capacity	20mm
Table size	700 x 180mm
No. of tee slots	3
Longitudinal travel	490mm
Cross traverse	175mm
Vertical traverse	380mm
Distance spindle to table	370mm
Throat	160mm
Spindle taper	3MT
Spindle stroke	55mm
Number of speeds	Variable
Overall speed range	50-2500 rpm
Head tilt left and right	90º - 0 - 90º Calibrated 45º - 0 - 45º
Motor	750w
Power	240v / 1PH
Dimensions W x D x H (Measurements taken to end of handle grips, with head at maximum elevation)	950 x 620 x 1035mm
Weight	125kg
