WM250V Lathe inverter drive variable speed (With DRO)

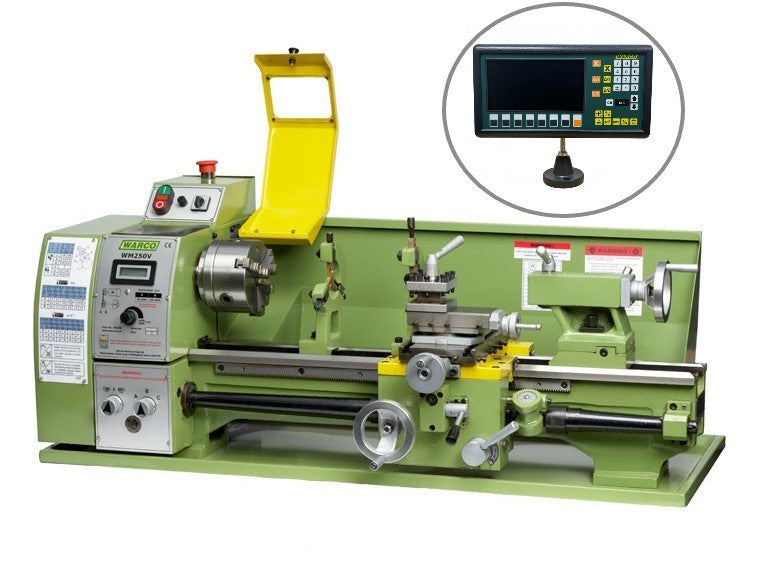

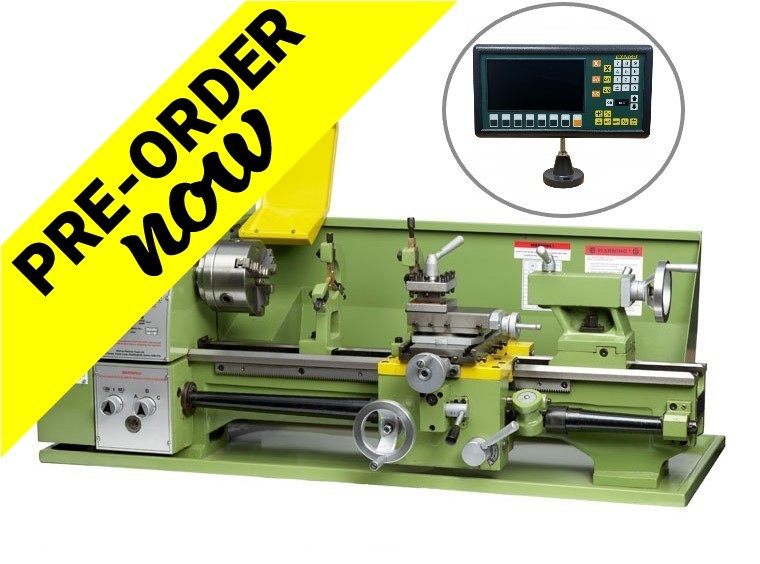

Warco WM 250V Variable Speed Lathe With DRO

AC Motor Inverter Drive

The Warco WM250V is much improved throughout. The WM 250 series of lathes have been amongst our best selling machine since we first launched them, and this new machine is better than ever.

Now with Delta inverter drive with AC induction motor, benefiting from extremely quiet operation throughout and proven ultra reliable long term performance.

The AC motor means the WM 250V can be run at full speed in reverse and it now has the ability to go as low as 30 rpm - ideal for thread cutting, with excellent torque in the low speed range.

Equipped with all the features of its predecessor that made it a choice buy for hundreds of our customers - including thread dial indicator, digital rev counter and 550mm between centres, as well as power cross feed for maximum usability and convenience.

Types available

• Metric (Item No. 1034)
• Metric factory fitted with 2 axis DRO (Item No. 1034DRO)

Machine features include

• Two speed bands allow maximum torque in the lower speeds
• Infinitely variable from 30 to 2200 rpm
• Double vee bedway - hardened and ground
• Adjustable gibs to slideways
• Offset facility to tailstock
• Tailstock quill engraved metric and imperial
• Reversible motor
• Extremely quiet vibration free operation
• Metric and imperial thread cutting
• Reversible leadscrew for left hand threading
• Thread dial indicator
• Zero friction dials
• Huge torque in the low speed range.
• Fitted with powerful 1.1kw (1100w) reversible motor
• Low 30 rpm speed at the low range, ideally suited to thread cutting
• Dependable Delta inverter drive with AC induction motor

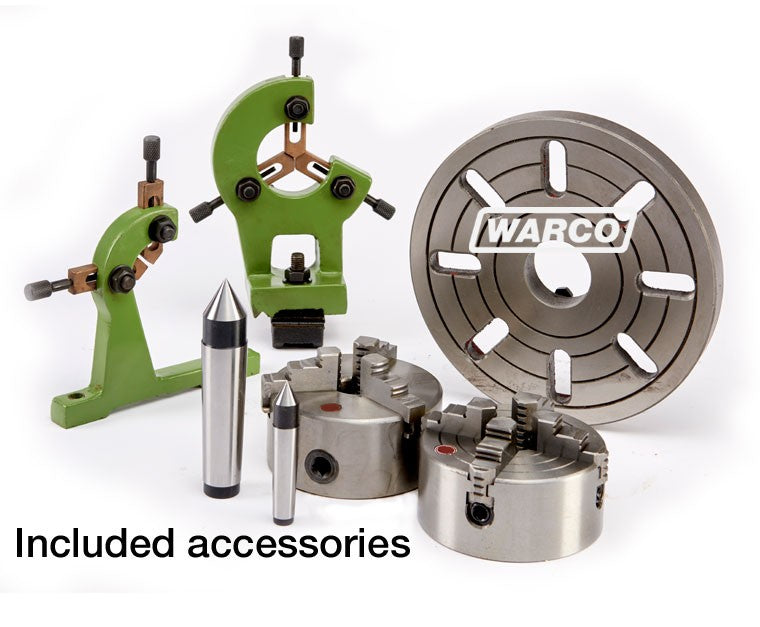

Supplied with a range of accessories and tools, including:

• Swarf tray
• Read splash guard
• Face plate
• Three jaw 125mm self centre chuck with inside and outside jaws
• Four jaw 125mm independent chuck
• Fixed steady
• Travelling steady
• Safe interlock chuck guard
• Two dead centres
• Thread dial indicator
• Toolbox with tools
• Operation manual and spare parts list

Full specification

Item No.	1034
Centre height	125mm
Maximum swing	250mm
Swing over cross slide	150mm
Distance between centres	550mm
Bed width	135mm
Longitudinal travel	450mm
Spindle taper	4MT
Spindle bore	26mm
Maximum tool size	12mm
Range of spindle speeds	30 - 2200 rpm
Range of metric threads	0.2 - 3.5mm (18)
Range of imperial threads	8 - 56 tpi (21)
Tailstock taper	2MT
Tailstock quill travel	80mm
Top slide travel	70mm
Cross slide travel	115mm
Headstock bearings	Taper roller
Compound slide swivel	360º
Chuck mounting	Flange fitting
Motor	1.1kw (1100w)
Power supply	240v
Dimensions L x W x H Measurements taken to end of handle grips.	1250 x 600 x 560mm
Weight	125kg

Buy this machine securely online, or feel free to call us on 01428 682929.

Buy with confidence, with unbeatable experience we've been supplying lathes to engineers since 1975.

Buying the WM 250V

• A high quality machine, very robust and accurate, truly is ready to take on a wide range of metal working and turning tasks for the long term.
• Buy with confidence from Warco - we've been selling lathes just like this for four decades now, and have always prided ourselves on our after sales service.
• We also have a hugely comprehensive range of spare parts available should you ever need them. For complete peace of mind, each machine has a 12 months warranty.
• Each lathe is fully run and tested by us before leaving our premises, and is supplied with an individual accuracy test report.
• Available in metric or imperial.
• All new machine with inverter drive and power cross feed.
• As with all the machinery we supply, the Warco WM 250V is supplied fully assembled and ready to go - once it arrives via our free delivery service, simply plug in and enjoy your new lathe.
