Backplate for Warco Mini Lathe - New Super Mini Lathe

Backplate for Warco Mini Lathes

Backplates allow the mounting of collet chucks or alternative lathe chucks.

100mm diameter.

Available to fit both old and latest Warco Mini Lathes - please check below for more details.

Back plate fitting

• These backplates are supplied machined to fit the appropriate hobby lathe spindle, and plain on the other side.

• Machining / drilling will be required on this front side to suit your particular application - ie whichever chuck is going to be installed.

• This is a straightforward procedure. To ensure absolute accuracy, it is necessary to machine a suitable spigot on the backplate to match the register in the back of the chuck. Due to the various chuck PCDs, it is also necessary to drill and possibly tap the backplate to accept whichever chuck is being mounted.

Types available

Machine Type	Item No.	Diameter

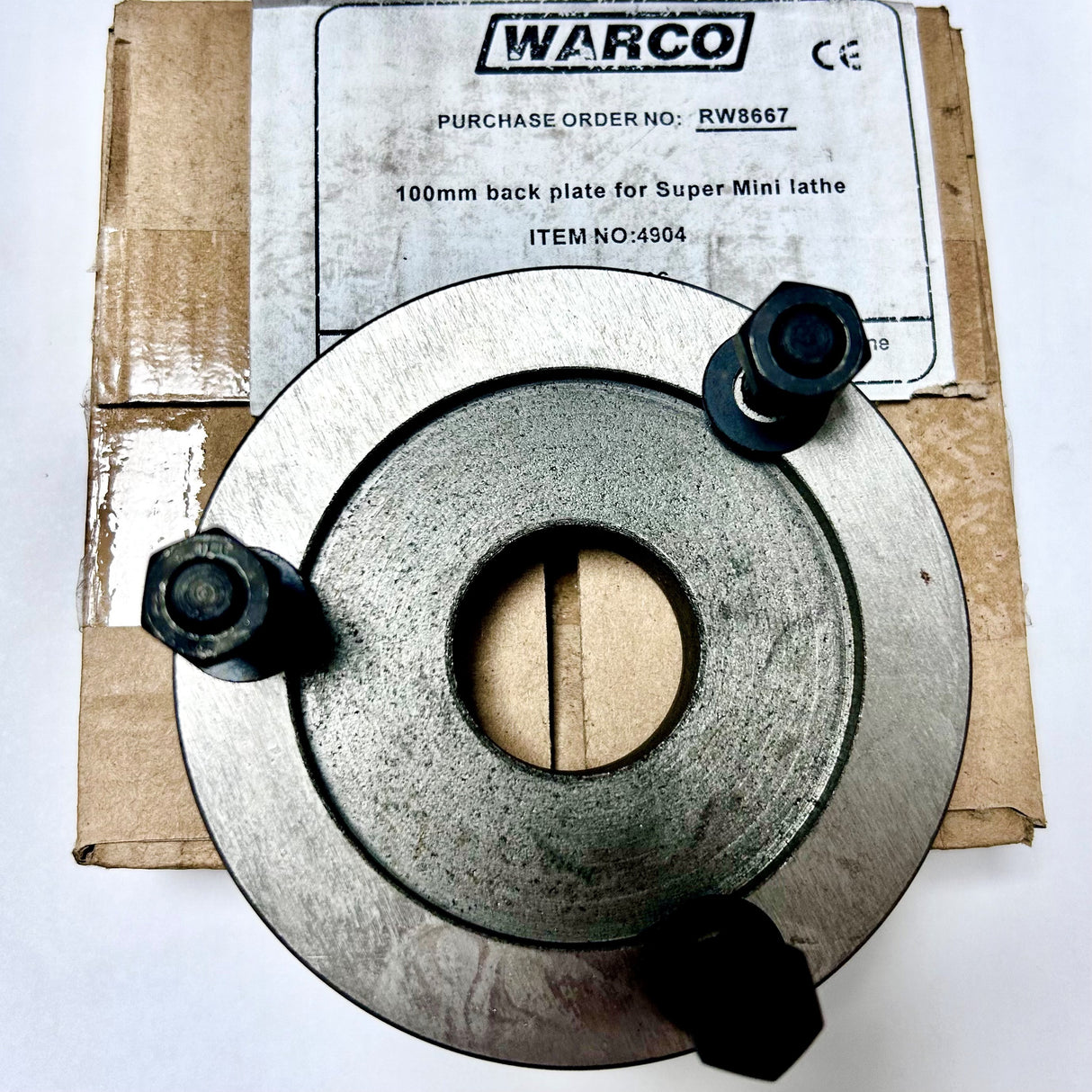

New Super Mini Lathe	4904	100mm

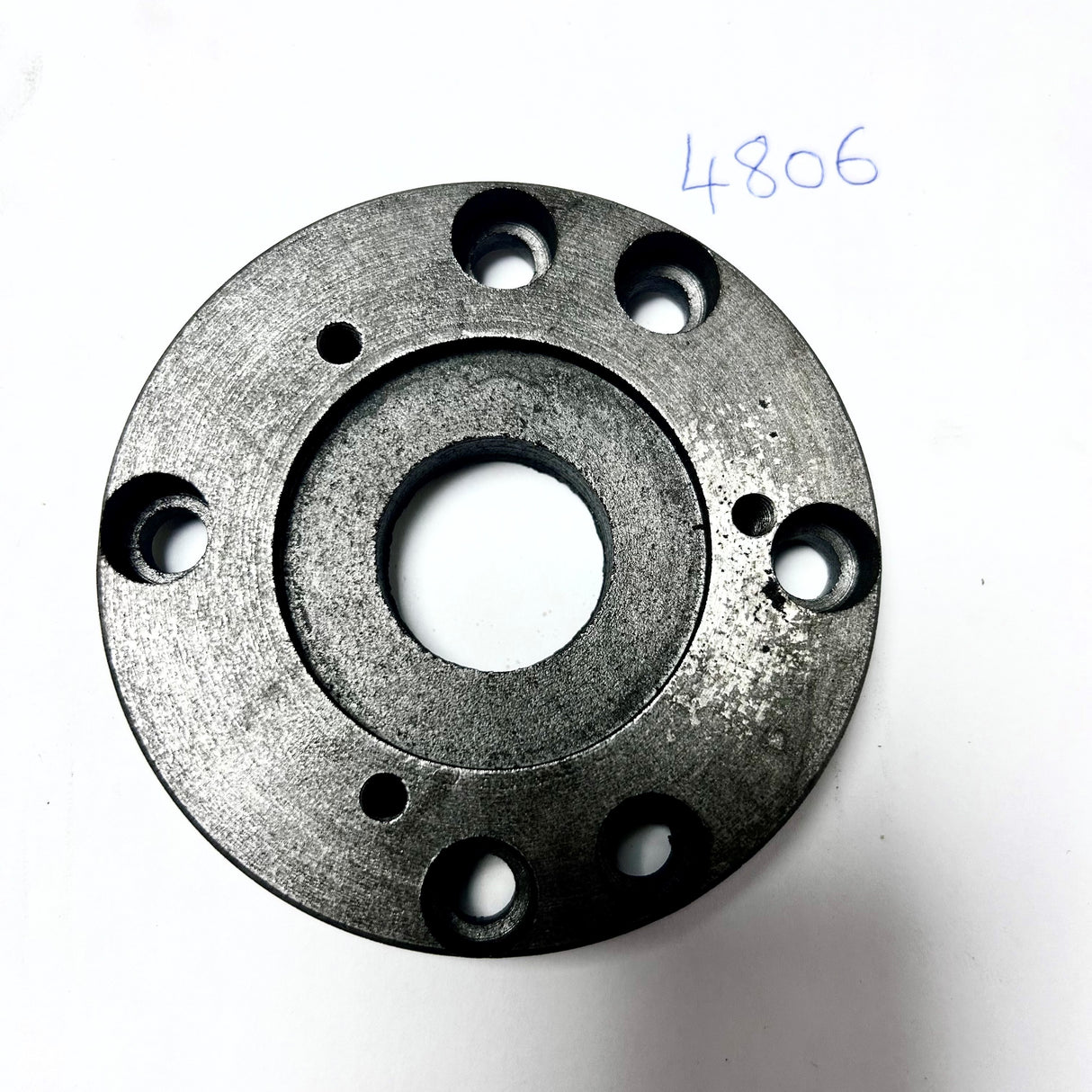

Mini Lathe / Previous Super Mini Lathe	4806	100mm

Which backplate to select depends on the Mini Lathe model:

For the current lathe - Backplate Item No. 4904

• To suit the current Super Mini Lathe - the type supplied with a 100mm chuck. This applies to all machines sold from 2018 onwards.
• Machine item numbers - 4900 / 4901.

For the previous lathe - Backplate Item No. 4806

• This is suitable for the Mini Lathe / previous Super Mini Lathes - those originally supplied with an 80mm chuck.
• Machine item numbers - Mini - 3004, 3005 / Super Mini - 4800, 4820.

Note

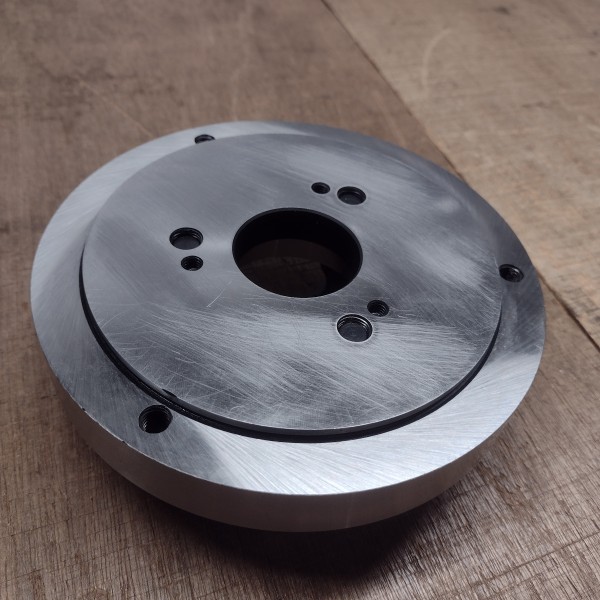

• Image above shows a general backplate as a reference. The one you will receive will look different to this.

Collet chucks

• Back plates are ideal for mounting a collet chuck to a lathe.

• Collet chucks available here - for the Mini Lathe, ER25 100mm is the type to go for.

Other backplates available

• To fit other Warco lathes

• To fit D1-4 lathes

• To fit D1-3 lathes

• To fit Myford lathes

• To fit Boxford lathes
