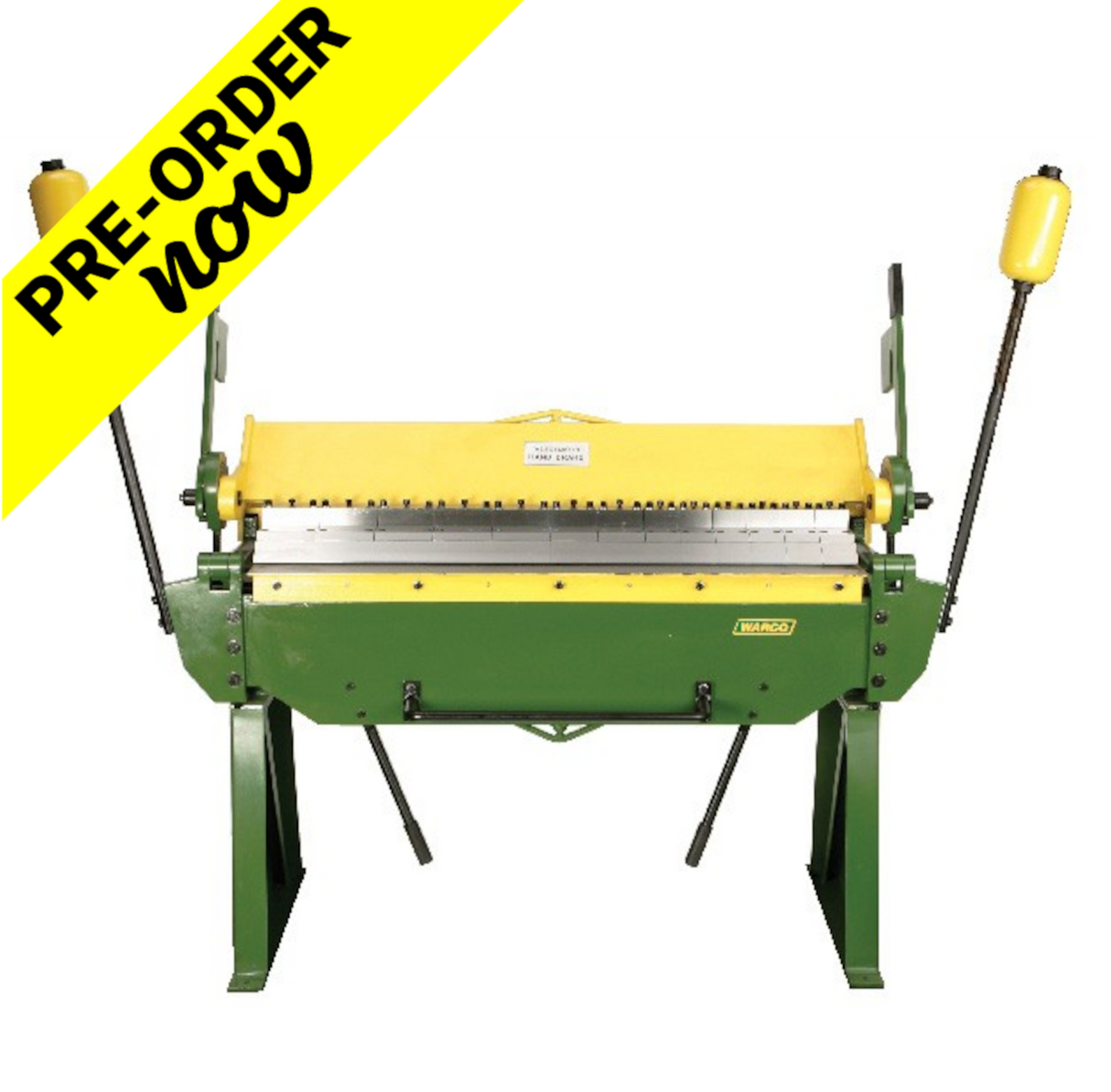

Box and Pan Folder - 48" Heavy Duty

48" Heavy Duty Box and Pan Folder - Sheet Metal Machine

Machinery weighing 500kg or more - delivery price varies according to size, weight and location; subject to quote.

Very robust piece of sheet metal machinery.

Features include

• Segmented top blade.

• Cam action to securely clamp material.

• Counterweight to assist bending action.

• Folds metal from 0° up to 135°.

Capacity in mild steel

• Length - 1220mm

• Thickness - 2.5mm

• Maximum bending angle - 135°

Size of fingers (8 of)

• 4 x 76.2mm

• 3 x 100mm

• 1 x 635mm

Dimensions & weight

• Length - 1728mm

• Width - 610mm

• Height - 1118mm

• Weight - 680kg
