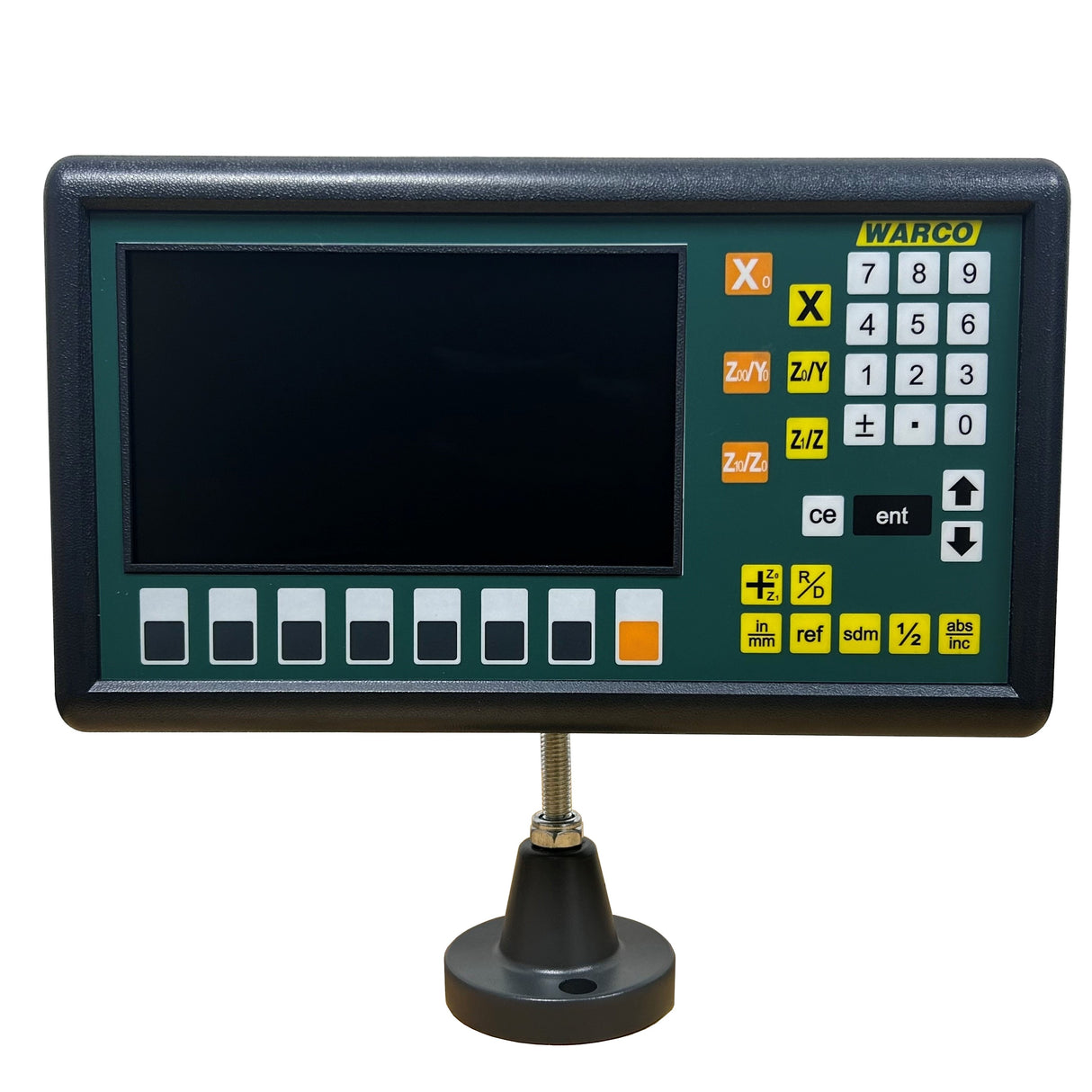

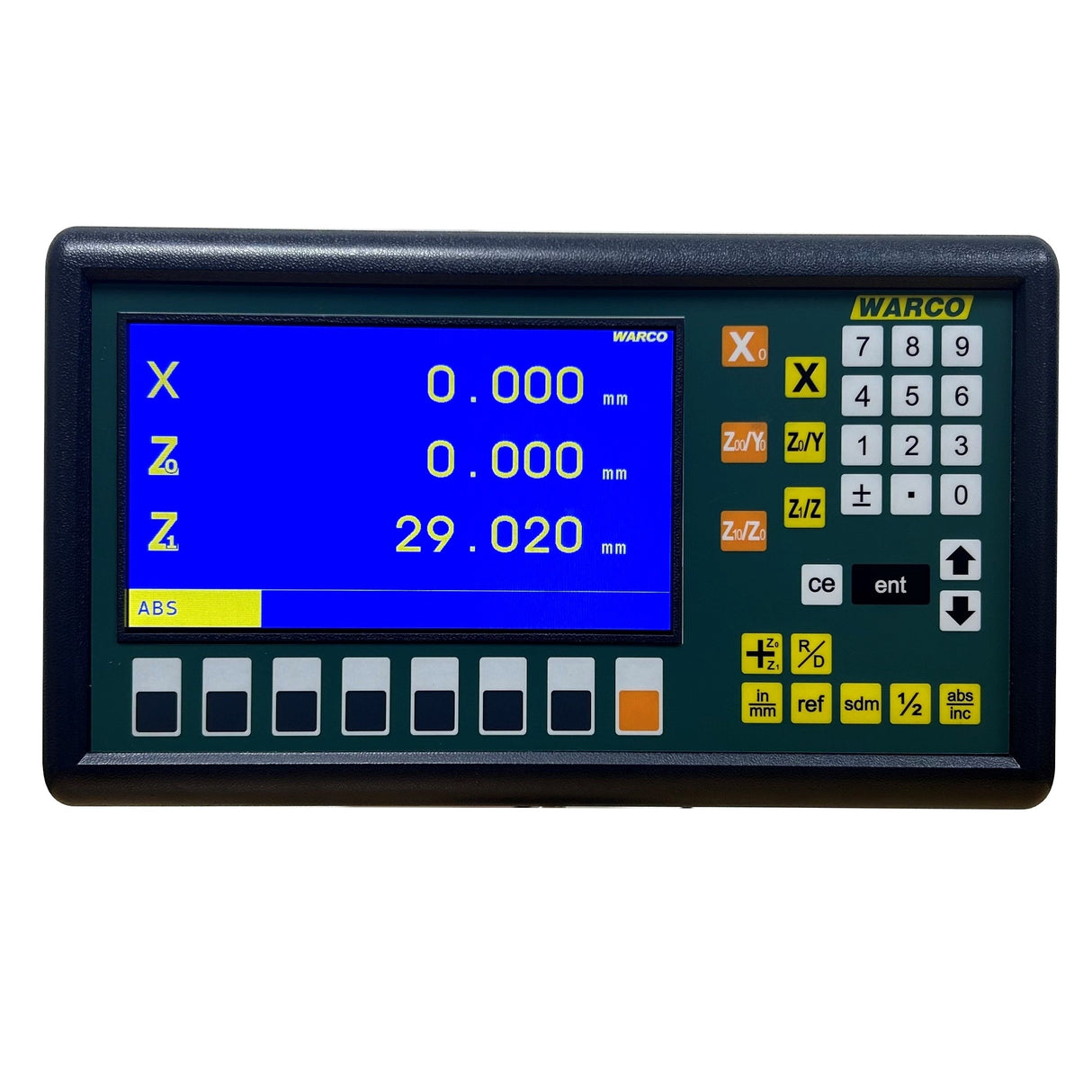

Warco DRO Digital Readout System - Counter

Warco Digital Readout Machine DRO Counter

2 Axis or 3 Axis

Warco digital readout system for lathes and milling machines.

• This low cost self-install system offers all the features of much more expensive at a much lower price.
• Tried, tested and approved, this system has found its way into engineers' workshops up and down the country and has quickly become the new standard for small to medium sized Warco machines.
• Completely sealed to prevent the electronic circuitry against hazardous materials such as dust, coolant or swarf.
• Industrial quality, highly accurate, straightforward to use, very well engineered throughout.
• Combine with the separately available glass optical scales for a professional level, high performance and complete digital readout system.
• Supplied for self fitting.
• Complete with operation manual and installation guide.

Specification

• Resolution 0.005mm / 0.0002".
• Working temperature - 10°C - 60°C
• Digital screen allows for PCD calculations.
• Reading head traverses on a 5 precision bearings system.
• Very robust, durable construction throughout.
• Highly precise machine measuring system.
• Supplied with a pivot support arm.
• Operation and installation instruction manuals included.
• Compatible with a wide range of different lathes and milling machines.

Types available

2 Axis DRO (Item No. 5102)

• For 2 scales - cross & longitudinal traverse (X & Y Axis)
• Suitable for lathes or milling machines.

3 Axis DRO (Item No. 5101)

• For 3 scales - cross, longitudinal & vertical traverse (X, Y & Z axis).
• Suitable for milling machines.

Range of scales to fit this device available here.

Notes

• This readout is intended for customer installation.
• To work this readout counter, it needs to be used in conjunction with these scales. You can also find a guide to recommend scale sizes on that page.

How fit DRO?

An illustrated installation manual is included. For more detailed images, the following links should be helpful too:

• DRO fitting to a lathe

• DRO fitting to a milling machine

Price includes VAT & UK mainland delivery.
