WM16 Milling Machine - Variable Speed with DRO - R8
Incl. VAT
Popular medium-sized machine
Well-engineered with variable speed
Includes FREE Accessories
Tested for Accuracy - Report Supplied
Excellent Spare-Parts Availability
12-Month Warranty
Fast & FREE DELIVERY to UK mainland
Questions & Support on Tel: 01428 682929
Stock available September 2026
WM16 Milling Machine - Variable Speed with DRO - R8 is backordered and will ship as soon as it is back in stock.
Business/Education customer? Set up a free profile to build a quote
Contact our Technical Customer Support with any questions:
Description
Description

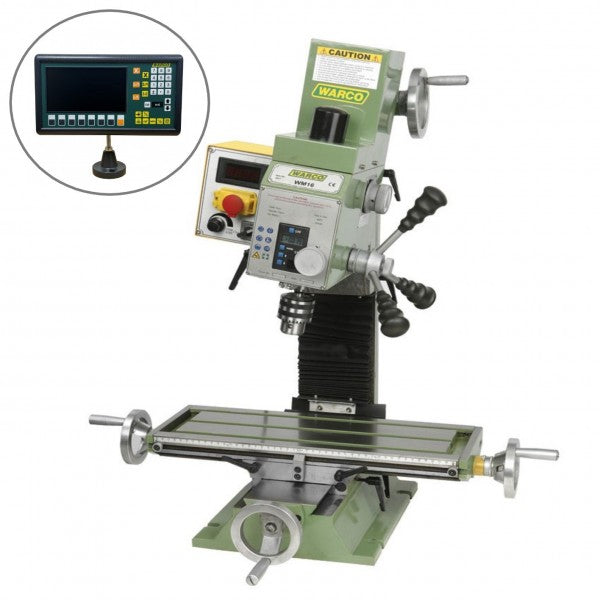

Warco WM 16 Variable Speed Milling Machine R8 with DRO
2 Axis Scales to X and Y, 3 axis Reader.
The WM 16 is a very well engineered machine, with variable speed and top quality throughout.
Very popular medium sized milling machine, offering many of the features of larger, more expensive machines at an affordable price.
Other Types available
- WM 16 Metric (Item No. 3217R)
- stand needed 3207DL
WM16 features include
- Infinitely variable from 50 - 3000 rpm
- Dovetail column ensures positive head location
- Precision spindle supported on taper roller bearings
- Adjustable gibs to slideways
- Reversible motor
- Head tilts plus or minus 90°
- Rack and pinion drill feed plus fine feed for extremely accurate machining
- Locks to head, column and slideways
Full Specification
Machine: 3217R Range |
WM16 Mills |
Product Dimensions: |
|
| Weight | 150KG |
| Length x Width x Height | 1030 X 600 X 955mm |
| Tray Length x Depth | 525 x 480 |
| Shipping Dimensions | |
| Length x Width x Height | 705 x 705 x 890mm |
Power/Motor |
|
| Motor size | 900W |
| Power Transfer (GH) gearbox or (VS) variable speed | VS |
| Voltage (240v single) (440v 3 Phase) | 240V |
| Fitment (Plug connection type) | 3 Pin Plug |
| Current | 50hz 3.9A |
| Spindle speeds (No: and achievable speeds) | 50-1500 / 100-3000rpm |
Main Specifications |
|
| Table size | 700 x 180mm |
| Longitudinal travel (X) | 500mm |
| Cross Table travel (Y) | 183mm |
| Head Travel or Knee (Z) | 255mm |
| Quill/Spindle stroke | 50mm |
| Distance spindle to table | 300mm |
| Throat (Spindle middle to Column) | 160mm |
| Table height from base | 185mm |
| Spindle Taper size and thread | R8 7/16 unf |
| Head tilt left to right and Head tilt front to back | 90-90 (45-45 calibrated) |
| Drilling capacity | 16mm |
| Milling capacity | 20mm |
| Spindle Bearing type | Taper Roller |
Other Specifications |
|
| Country of origin | China |
| Warranty | 12 Months |
| Approximated assembly and setup time | 30 mins |
| CE approved Certificate | CE CERT No.6 07/02/23 |
Additional products |
|
| Optional stand | 3207DL |
| Optional power feed | 3205.16 |
| Optional Digital Read Out Kit | 8123 dro |
| X axis scale (left to right) | 500mm |
| Y axis scale (forward to back) | 200mm |
| Z axis scale (head) | 300mm |
| Tee Nut size and no of slots | AA=12 B=17.5 C=6.5 D=7.5mm (3 SLOTS) 9523 M10 |
| Machine/Stand Hole positions | A=320 B=22 C=75 D=30mm |
Order a WM 16 securely online, or call us on 01428 682929.
Buying this Warco machine
- Each mill comes fully guaranteed.
- We've been selling milling machines to engineers of all levels of ability for decades now, so our experience is unrivalled. We've always prided ourselves on our after sales service, so when you buy from us you know you are in safe hands.
- Every milling machine we supply is tested by a member of our team, and is supplied with an individual accuracy test report.
- Our milling machines are supplied fully assembled and 100% ready to start metalworking, so once it arrives, you can simply plug in and enjoy your new mill.
- Our price include UK mainland delivery
