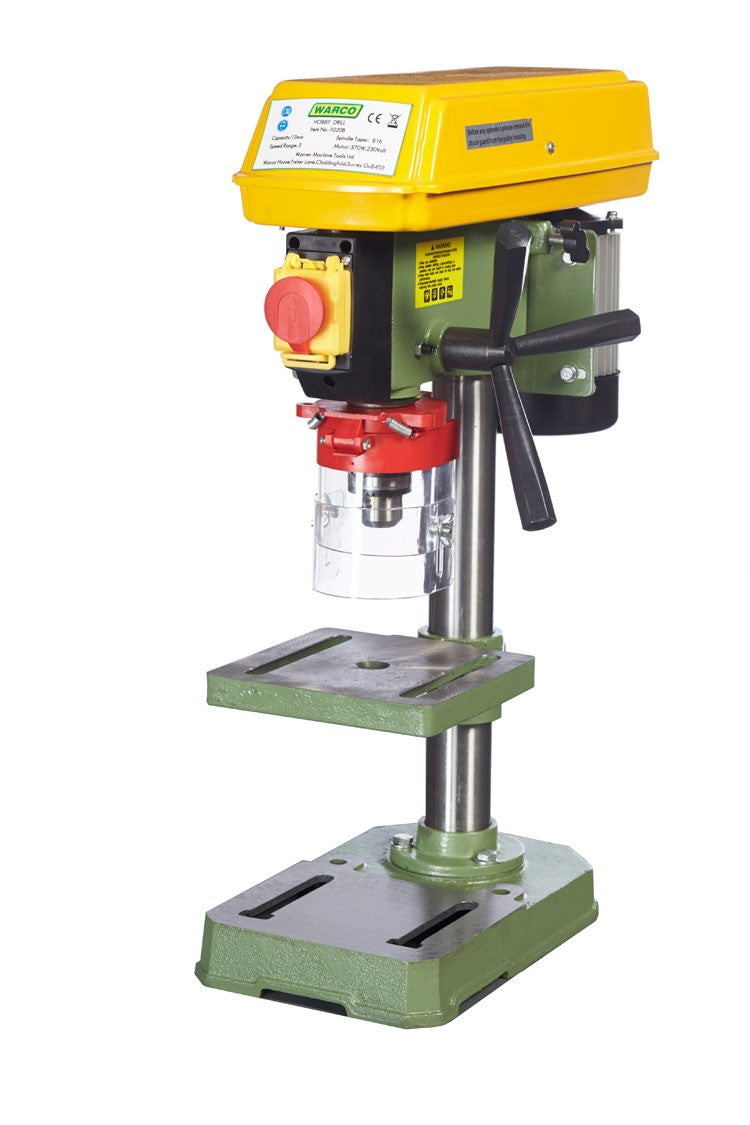

Hobby Drill

Durable, hard wearing and compact bench mounted drilling machine.

• Part of the Warco range of well engineered, workshop drilling machines.

• Trouble free, straight forward design from this small bench drill.

• The Warco Hobby Drill comes in response to popular demand for a smaller workshop machine - with no compromise on quality.

Features include:

• Start / stop switch incorporates eNEWncy stop

• Positive quill depth stop

• Isolator switch fitted to belt cover

Full Spec:

Model: Hobby Drill (	Product Code: 1020B
Product Dimensions:
Weight	16kg
Width x Depth x Height	220 x 450 x 605mm
Base Width x depth	185 x 240mm
Shipping Dimensions
Length x Width x Height	490 x 340 x 270mm
Package Type (Pallet or box)	Box
Power/Motor
Motor size	250W
Drive (GH) gearbox (VS) variable speed or (B) Belt	Belt
Voltage (240v single) (440v 3 Phase)	240v Single
Fitment (Plug connection type)	3 pin plug
Spindle Bearing type	Roller Bearing
Spindle speeds (No: and achievable speeds)	5 speed, 620-920-1280-1750-2620
Main Specifications
Type (Bench top or floor)	Bench
Table size (Length x Width x Thickness)	162 x 165 x 15mm
Table Travel Vertical	230mm
Maximum size spindle to Table	230mm
Maximum size spindle to Base	315mm
Throat (Spindle middle to Column face)	105mm
Column diameter	46mm
Spindle Taper size	B16
Head tilt left to right	n/a
Table tilt	90-90° (45-45° calibrated)
Drill chuck capacity	13mm
Quill diameter	40mm
Quill/Spindle stroke	50mm
Features
Laser centre?	N
Work light?	N
Digital speed counter?	N
Depth stop?	Y
Safety interlock guard?	N
Other Specifications
Country of origin	China
Warranty	12 Months
Approximated assembly and setup time	45 mins
CE approved Certificate	4840319062301
Tee slot size and no of slots (A-B-C-D) No of slots	A=13.5 B=22 C= 8 D=8mm (2 slots)
