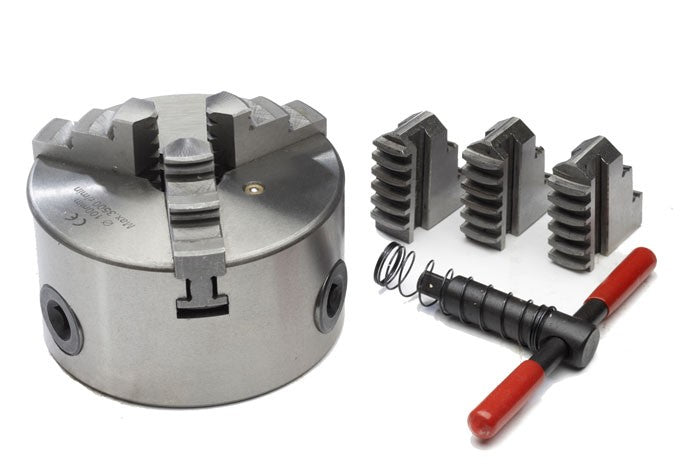

3 Jaw Lathe Chuck - Self Centering - 250mm D1-8 connection

3 Jaw Self Centering Metal Lathe Chucks

The Warco range of lathe chucks are exceptionally high quality.

• Featuring a recess for back plate mounting.

• Supplied with both inside and outside jaws.

• Complete with chuck key.

• Produced to DIN 6350 standard.

250mm D1-8 connection for GH1640 or GH1660 (9591)

35kg, 3 Jaw Self centering Chuck.

Sizes available

• 80mm (Item No. 8926)

• 100mm (Item No. 8927)

• 125mm (Item No. 8028)

• 130mm (Item No. 8016)

• 160mm (Item No. 8038)

• 200mm (Item No. 9411)

• 250mm (Item No. 9409)

Also available

• Selection of soft jaws

Dimensions

Table 1

Item No.	Dia (mm)	D1 (mm)	D2 (mm)	D3 (mm)	H (mm)	H1 (mm)	h (mm)
8926	80	55	66	16	66.5	50	4
8927	100	72	84	22	74.5	55	3
8016	130	100	115	30	86.5	58	5
8038	160	130	142	45	94	65	5
9411	200	165	180	65	109	75	5
9409	250	206	226	80	120	80	5

Table 2

Item No.	z-d	Max Speed (rpm)	Weight (kg)	A-A1 (mm)	B-B1 (mm)	C-C1 (mm)
8926	3-M6	4000	1.9	2-22	25-70	22-63
8927	3-M8	3500	3.2	2-30	30-90	30-80
8016	3-M8	3000	5.6	3-40	40-130	40-120
8038	3-M8	2500	8.8	3-55	50-160	55-145
9411	3-M10	2000	15.5	4-85	65-200	65-200
9409	3-M12	1600	25.7	6-110	80-250	90-250
