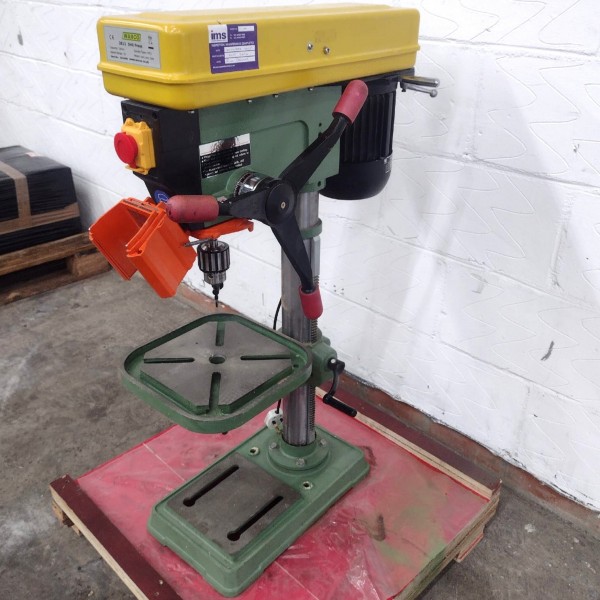

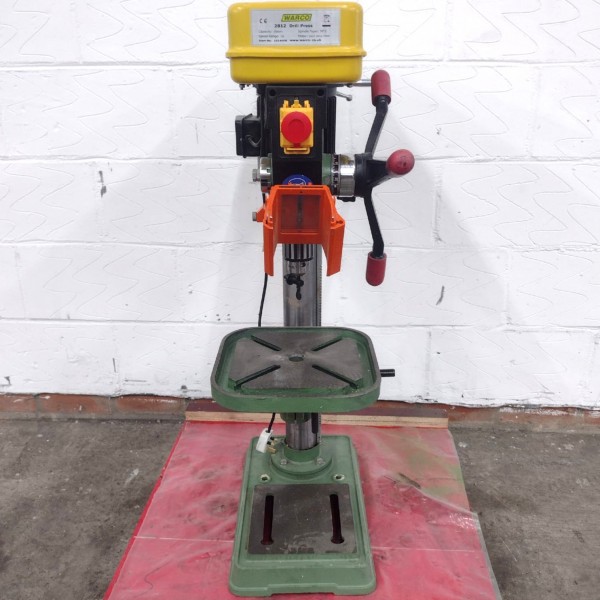

2B12 Bench Drill (used)

Item No: 02815W

£300.00 Inc. VAT

2B12 Bench Drill (used)

£60.00 Delivery

More details

Note: Almost sold out!

More info

2B12 Bench Drill (used)

Reference Only

Very high quality, robust and durable bench mounted drilling machine is well engineered throughout. Suitable for trade, education or home workshop applications.

Features include:

Start / stop switch incorporates emergency stop

Fitted with rotary / tilting table

Positive quill depth stop

Isolator switch fitted to belt cover

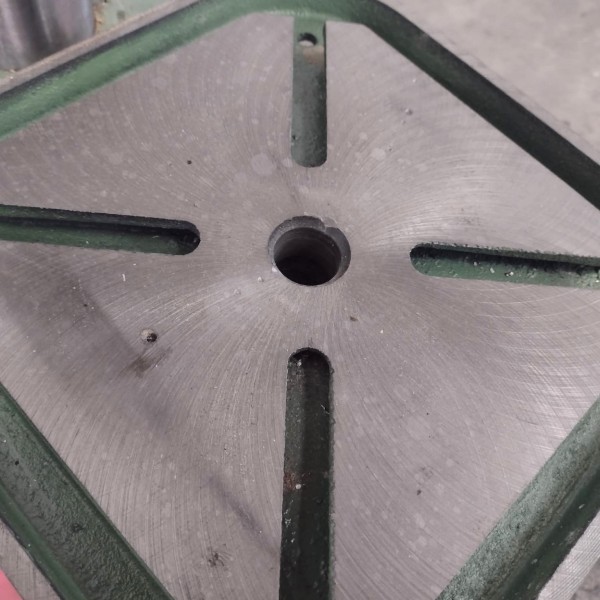

Tee slotted tables fitted

Complete with integrated work light

Full Spec:

	Model: 2B12 (Product Code: 1014B)
Product Dimensions:
Weight	73kg
Width x Depth x Height	375 x 650 x 1015mm
Base Width x depth	270 x 460mm
Shipping Dimensions
Length x Width x Height	930 x 580 x 360mm
Package Type (Pallet or box)	Box
Power/Motor
Motor size	650W
Drive (GH) gearbox (VS) variable speed or (B) Belt	Belt
Voltage (240v single) (440v 3 Phase)	240v Single
Fitment (Plug connection type)	3 pin plug
Spindle Bearing type	Sealed Roller Bearing
Spindle speeds (No: and achievable speeds)	16 speed 120-220-270-320-400-450-500-820-950-970-1260-1380-1680-1820-2580-3000
Main Specifications
Type (Bench top or floor)	Bench Top
Table size (Length x Width x Thickness)	300 x 305 x 30mm
Table Travel Vertical	440mm
Maximum size spindle to Table	450mm
Maximum size spindle to Base	620mm
Throat (Spindle middle to Column face)	180mm
Column diameter	80mm
Spindle Taper size	2MT
Head tilt left to right	n/a
Table tilt	90-90° (45-45° calibrated)
Drill chuck capacity and recommended max drill	16mm / 20mm max
Quill diameter	52mm
Quill/Spindle stroke	85mm
Features
Laser centre?	X
Work light?	Y
Digital speed counter?	X
Depth stop?	Y
Safety interlock guard?	X
Other Specifications
Country of origin	China
Warranty	12 Months
Approximated assembly and setup time	30 mins
CE approved Certificate	CERT-20210823 TA 385213770(1)
Tee slot size and no of slots (A-B-C-D) no: of slots	A=18 B=30 C=5 D=18m 4 slots
