WM 50 Milling Machine - Horizontal & Vertical Mill

    3010

    £6,583.50 Inc. VAT

    Note: Almost sold out!

    product description

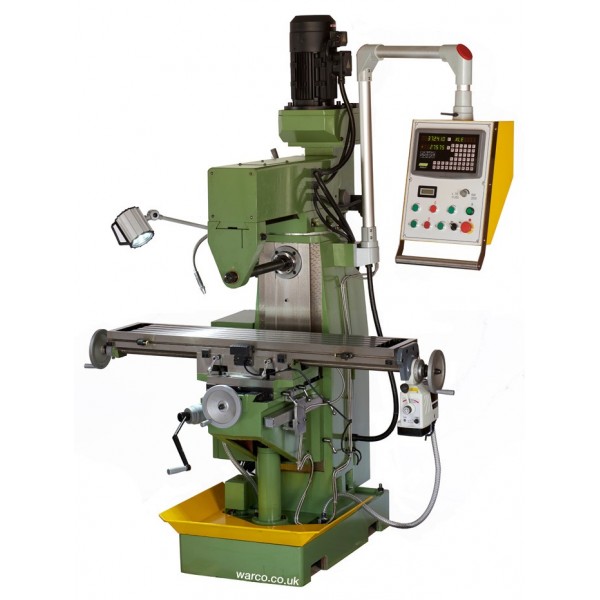

    Warco WM 50 Horizontal / Vertical Milling Machine

    Industrial capacity mill for the professional machinist

    Very accurate performance.

    With two powerful motors - one for horizontal and one for vertical milling.

    Features include

    • Supplied 2 axis digital readout system
    • Horizontal and vertical spindles
    • Sturdy Meehanite cast iron construction
    • Hardened and ground slideways
    • Hardened table surface
    • Table swivel 45° left to right
    • Wide cross slide allows maximum table support
    • Tapered gibs to slideways
    • Locks to x/y/z traverse
    • Back gear for maximum torque in lower speeds

    Standard equipment

    • Power feed to X axis, infinitely variable
    • DRO
    • Coolant system
    • Halogen lighting
    • Swarf tray
    • Toolbox with maintenance tools

    Control panel incorporates

    • Two axis digital readout
    • Start/stop buttons
    • Forward and reverse for vertical and horizontal spindles
    • Rev counters
    • Coolant switch
    • Emergency lock on stop.

    Buying the Warco WM 50

    • Each machine is fully guaranteed.
    • We have an extremely comprehensive range of spare parts available should you need them, as well as just about every accessory or additional tool you'll ever need.
    • We've always prided ourselves on our after sales service, so rest assured when buying from Warco, you're in safe hands.
    • Standard equipment included for no extra charge.
    • Every milling machine we supply is fully checked and tested by a member of our qualified team, and is supplied with an individual accuracy test report.



    Specification

    Item No.

    3010

    Table size

    1200 x 240mm

    Longitudinal travel

    780mm

    Cross travel

    220mm

    Vertical (knee) travel

    335mm

    Spindle travel

    120mm

    Vertical distance spindle to table

    35-370mm

    Horizontal distance spindle to table

    0-315mm

    Vertical spindle taper

    ISO 40

    Horizontal spindle taper

    ISO 40

    Spindle speed range vertical

    75-2000 rpm

    Spindle speed range horizontal

    60-1350 rpm

    No. of speeds vertical

    Infinitely variable

    No. of speeeds horizontal

    9

    Motor vertical

    2.2kw (2200w) / 3HP

    Motor horizontal

    2.2kw (2200w) / 3HP

    Power (both motors)

    440v / 3PH

    Dimensions W x D x H
    (Measurements taken to end of handle grips,
    with head at maximum elevation)

    1560 x 1150 x 2080mm

    Weight

    1200kg

    Price includes UK VAT at 20%.

    For a quotation or any more information, you can call us on 01428 682929.
