Mini Formit - 3 in 1 Universal Sheet Metal Machine

    This product is currently out of stock

    7006

    £185.00 Inc. VAT

    Warco Mini Formit for bending, cutting / shearing and rolling -  truly a 3 in 1 sheet metal machine.

    More details

    product description

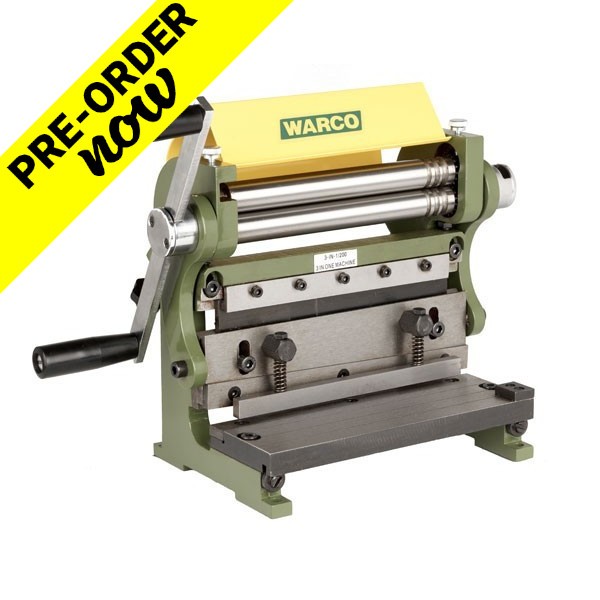

    Warco Mini Formit - 3 in 1 Universal Sheet Metal Machine

    Now one of our best selling sheet metal machines.

    With all the features associated with larger sheet metal equipment in a very compact size.

    A 3-in-1 machine that functions as a guillotine, roller and bender.

    Ideal for bending cutting or rolling aluminium, copper, brass and mild steel.

    Features

    • 3 rolls including rear pinch roll and top slip out roll
    • Segmented press brake tooling for box and pan folding up to 90°
    • Hardened and ground reversible shear blade
    • Front squaring arm and rear back stop
    • Operating handle can be left or right side
    • With adjustable back stop



    Specification

    Max. material width

    200mm

    Max. shearing capacity (thickness)
    for mild steel *

    1mm / 20swg

    Max. sharing capacity (thickness)
    for aluminium, soft brass, copper *

    1.2mm / 18swg

    Max. bending capacity

    1mm

    Bending angle

    90°

    Min. rolling diameter

    29mm

    Dimensions L x W x H
    (Excluding handle grips)

    320 x 200 x 250mm

    Weight

    17.5kg

    * Not suitable for stainless steel. Using stainless steel or exceeding the maximum recommended material thickness will invalidate your warranty

    Available in larger sizes here.

    Price includes VAT and mainland UK delivery.
