WM 40 Milling Machine Turret Mill

Ideally suited to training and industrial use, the WM 40 Turret Mill is a truly high precision production milling machine. The highest standards of build quality throughout

More details


£7,799.00 Inc. VAT

3055YZ

Note: Almost sold out!

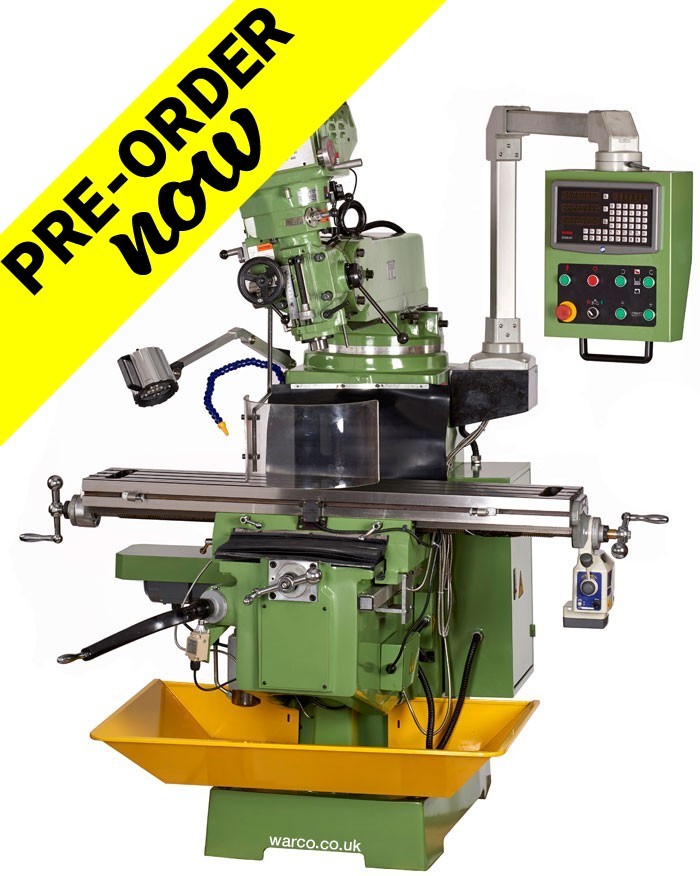

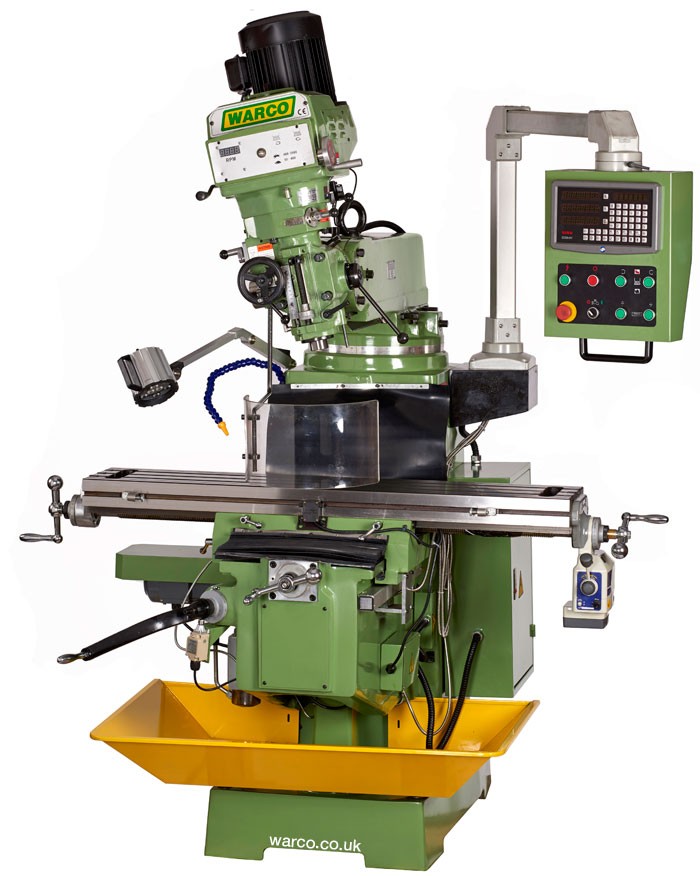

Warco WM 40 Turret Milling Machine



Offering toolroom levels of specification, the WM 40 Mill is fully equipped with everything you could ever need for a large range of milling applications.  Unsurpassed levels of build quality, robustness and accuracy come as standard with this machine.



Features include:

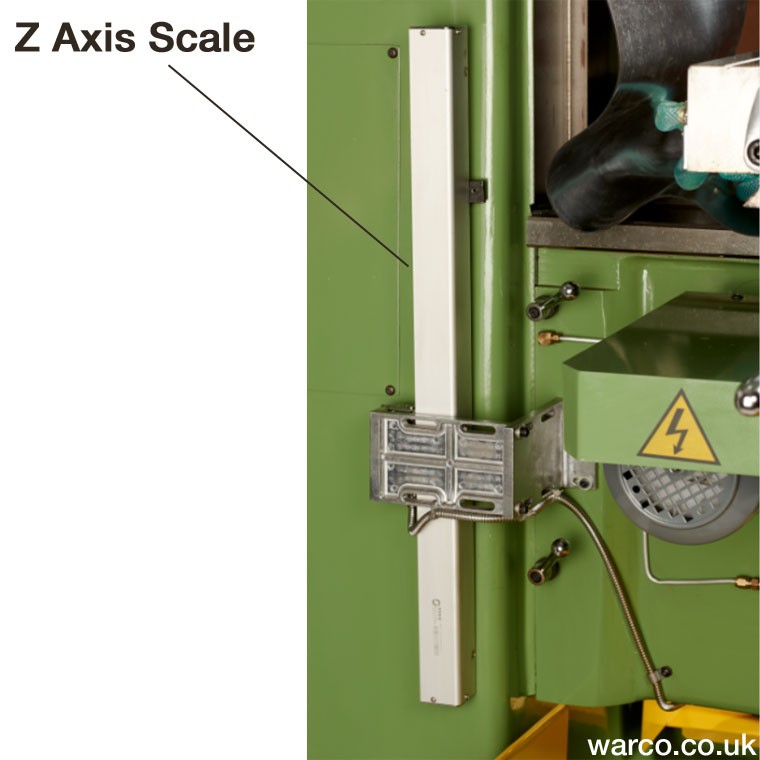

  • Two axis Digital Readout (DRO) incorporating PCD facility
  • Infinitely variable power feed to X traverse

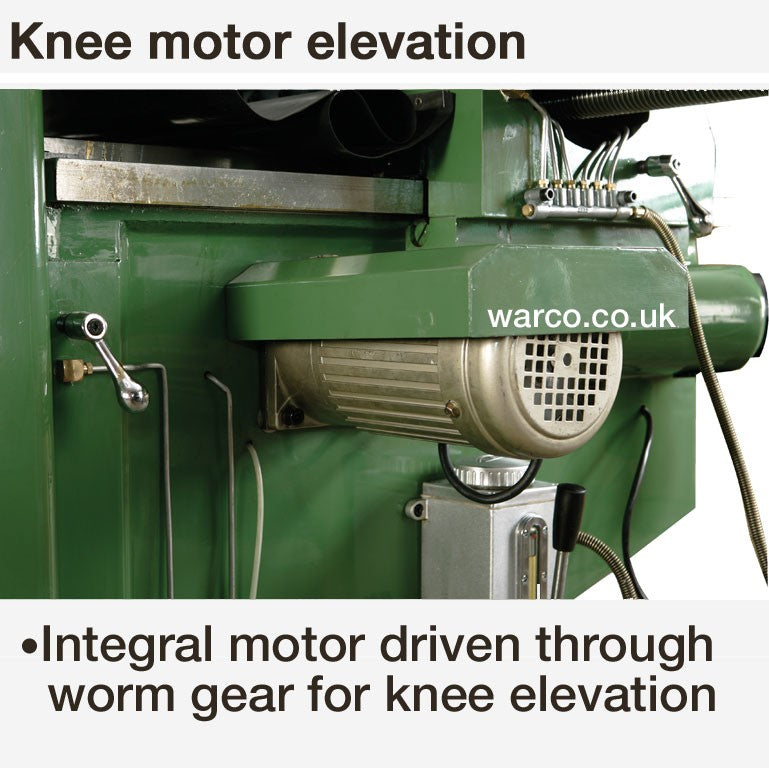

  • Powerful direct mount motor to knee elevation, driven through worm gear
  • Hardened and ground table
  • Square, hardened slides to Y traverse
  • Hardened dovetail slides to X and knee traverse
  • Variable spindle speeds
  • Power feed to spindle, 3 feed rates
  • Coolant system
  • Centralised lubrication system to leadscrews and slideways ensures prolonged machine life
  • Halogen low voltage lighting
  • High quality low voltage electrical circuit with overload protection
  • Spindle brake
  • Tapered gibs to X, Y and Z axes
  • Locks to X, Y and Z axes

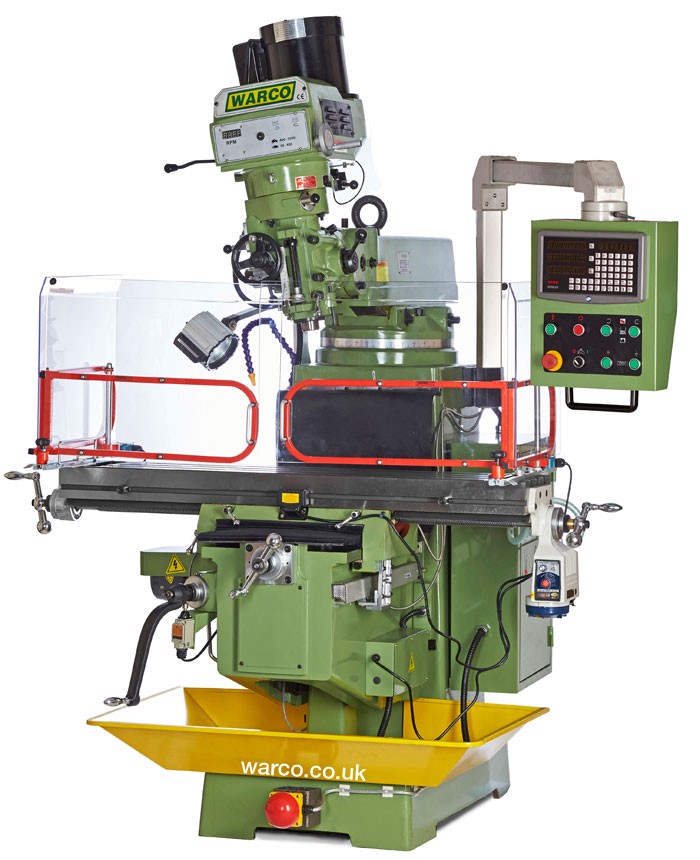

Warco WM40 Turret Milling Machine



Highly accurate, low cost milling machine, capable of intensive, long term milling.  Unrivalled build quality, each machine is built to last.

Supplied complete with fully fitted DRO system, tool box, maintenance tools and operation manual.

We have an extremely comprehensive range of spare parts available should you need them, as well as just about every accessory or additional tool you'll ever need.



  • We've always prided ourselves on our after sales service, so rest assured when buying from Warco that you're in safe hands.
  • Every milling machine we supply is fully checked and tested by a member of our qualified team, and is supplied with an individual accuracy test report.
  • Fully guaranteed.



Specification

Item No.

3055

Table size

245 x 1300mm

Cross travel

380mm

Knee travel

420mm

Longitudinal travel

760mm

Overarm travel

320mm

Overarm rotation

360º

Distance spindle to table

485mm

Throat

150 / 670mm

Spindle speeds

60 - 4200 rpm

Spindle taper

R8

Spindle travel

127mm

Speed range

50-3500 rpm

Spindle feeds

0.04 - 0.08 - 0.16 rev/min

Head tilt left /right

45º - 0 - 45º

Head tilt front/back

45º - 0 - 45º

Main motor

2.2kw (2200w) / 3hp

Power supply

440v

Dimensions W x D x H

1650 x 1550 x 2100mm

Weight

1250kg





























































Measurements taken to end of handle grips and with head at maximum elevation.



If you're interested in ordering one of these machines, or have any questions, feel free to call us on 01428 682929 ext. 206 or 211.



Price includes VAT and mainland UK delivery.
