WM 20 Milling Machine

    This product is currently out of stock

    3009YZ

    £5,230.00 Inc. VAT

    Rigid, highly accurate and precision mill of the highest calibre. Fully equipped, fitted with 2 Axis DRO system.

    More details

    product description

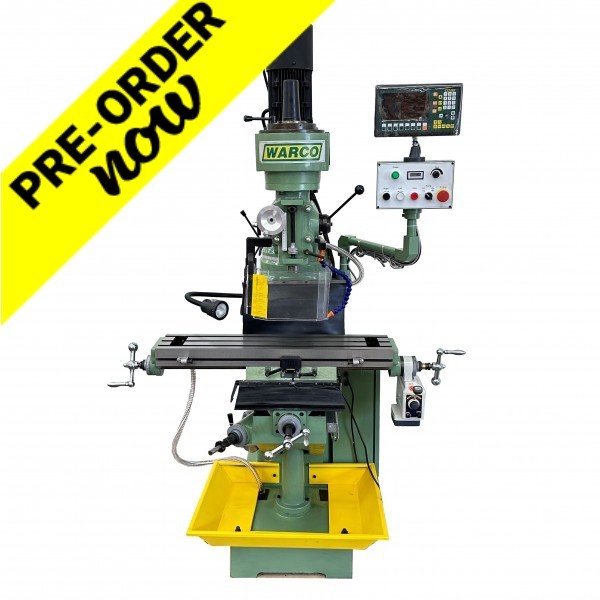

    Warco WM 20 Milling Machine

    A compact, rigid and accurate milling machine.

    Very heavy duty, high precision with an incredibly quiet, smooth operation.

    Features include

    • Inverter drive system, allowing infinite speed control from 100rpm upwards
    • Chrome hardened spindle supported on taper roller bearings
    • Fitted with 2 Axis Digital Readout (DRO) - with glass optical scales fitted to the cross and longitudinal (X and Y) axis.
    • One shot lubrication system to slideways and leadscrews
    • Turcite coated slideways
    • Fine feed
    • Operates safely from a single phase 240V (13 amp) power supply
    • Tapered gibs to X, Y and Z axes
    • Locks to X, Y and Z axes
    • Rack and pinion feed
    • Quiet, smooth operation
    • Calibrated fine feed to quill
    • Longitudinal power feed now fitted as standard.

    Standard equipment includes

    • Coolant system (capacity 8 litres)
    • Power feed fitted to longitudinal axis
    • DRO
    • Interlock chuck guard
    • Halogen low voltage lighting
    • Maintenance tools & tool box

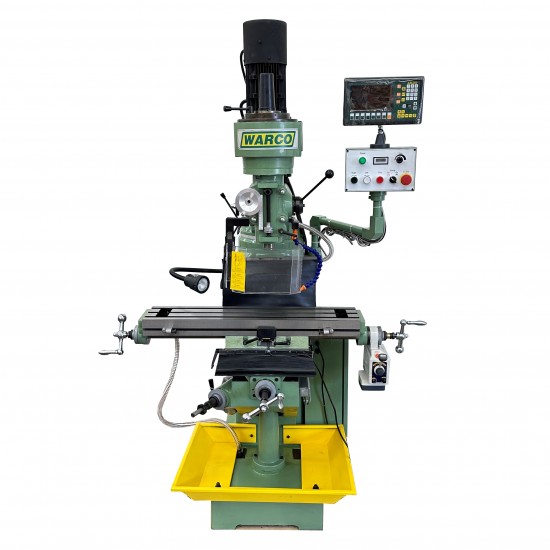

    Warco WM-20 Milling Machine



    Buying this machine

    • We've always prided ourselves on our after sales service, so rest assured when buying from Warco, you're in safe hands.
    • Supplied complete with fully fitted DRO system, power feed, lighting, coolant system, tool box. maintenance tools and operation manual as standard.
    • We've been supplying mills just like this for decades now, giving us unbeatable experience.
    • Every milling machine we supply is fully checked and tested by a member of our qualified team, and is supplied with an individual accuracy test report.
    • As with all Warco milling machines bought from us, the WM 20 is fully guaranteed.
    • Price includes UK mainland delivery.



    Specification

    Item No.

    3009YZ

    Maximum drilling capacity

    20mm

    Maximum end milling capacity

    20mm

    Table size

    910 x 226mm

    No. of tee slots

    3

    Longitudinal traverse

    580mm

    Cross traverse

    240mm

    Distance spindle to table

    365mm

    Throat

    134 / 400mm

    Spindle taper

    R8

    Spindle stroke

    127mm

    Number of speeds

    Infinitely variable

    Speed range

    25-2800 rpm

    Head tilt left / right

    90º - 0 - 90º

    Motor

    1.5kw (1500w) / 2HP

    Power supply

    240v / 1PH

    Dimensions W x D x H
    (Measurements taken to end of handle grips,
    with head at maximum elevation)

    1620 x 1170 x 2060mm

    Weight

    785kg

    Price includes VAT and mainland UK mainland delivery.

    To order one of these machines, or if you have any other questions, call us on 01428 682929.
